Interactive Touch Screen Rockchip Motherboard RK3566 LVDS HDMI 4K Arm Android Motherboard
Product Attributes
| Attribute |
Value |
| Product name |
Interactive Touch Screen Android Motherboard |
| PCB size |
140mm*91mm*1.6mm |
| RTC |
Support power-off clock memory and automatic power on and off |
| Application |
Commercial display |
| OEM |
Welcome |
| eMMC |
16G-128G |
| Display |
Support LVDS（dual 8，1920*1080），EDP，MIPI，HDMI |
| Ethernet |
10/100/1000M |
Description of Android Motherboard JLD-A10
The JLD-A10 motherboard is equipped with an ARM G52 2EE graphics processor, which fully supports mainstream graphics interface standards such as OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1. This configuration ensures that the touch screen can smoothly present high-definition dynamic images, multi touch feedback animations, and complex interactive interfaces.
The JLD-A10 motherboard has a built-in RTC real-time clock module that supports power-off clock memory function. Even after the device is powered off, it can still accurately record time. Combined with automatic power on/off function, it can achieve intelligent management such as timed startup and sleep, greatly reducing manual operation and maintenance costs.
The JLD-A10 motherboard has a compact design with dimensions of 140mm, 91mm, and 1.6mm, which greatly saves installation space while ensuring performance and perfectly adapts to the narrow internal structure of embedded touch screens. The lightweight feature enables it to be easily integrated into various forms of touch devices such as wall mounted and desktop, enhancing device design flexibility.
Specification of Android Motherboard JLD-A10
| CPU |
RK3566 highest frequency up to 1.8GHZ |
GPU |
ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| OS |
ANDROID 11/Linux Ubuntu |
Memory card type |
TF - CARD |
| serial port |
4 in total, types option,TTL(1-4),RS232(0-3),RS485(0-2) |
PCB size |
140mm*91mm*1.6mm |
| Audio output |
Stereo, support Dolby sound effect |
Ethernet |
10/100/1000M |
| TP |
I2C and USB interface touch screen |

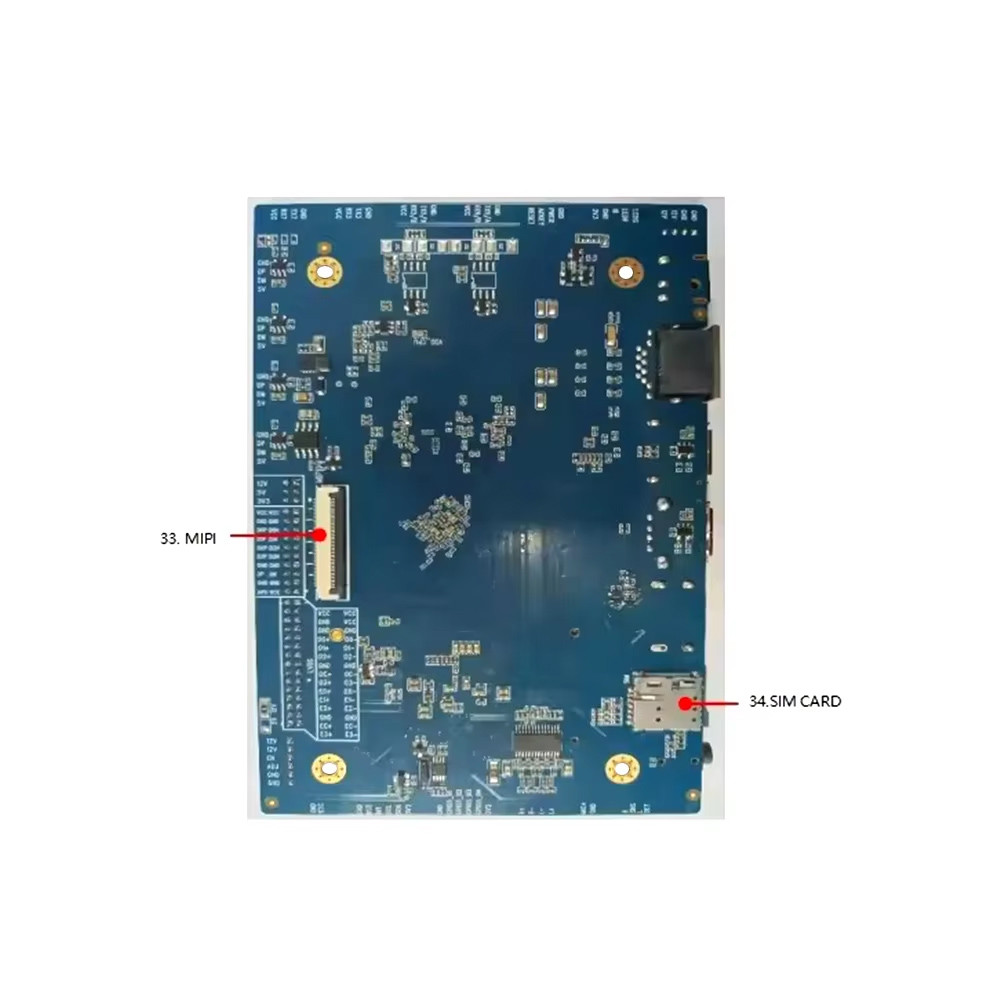

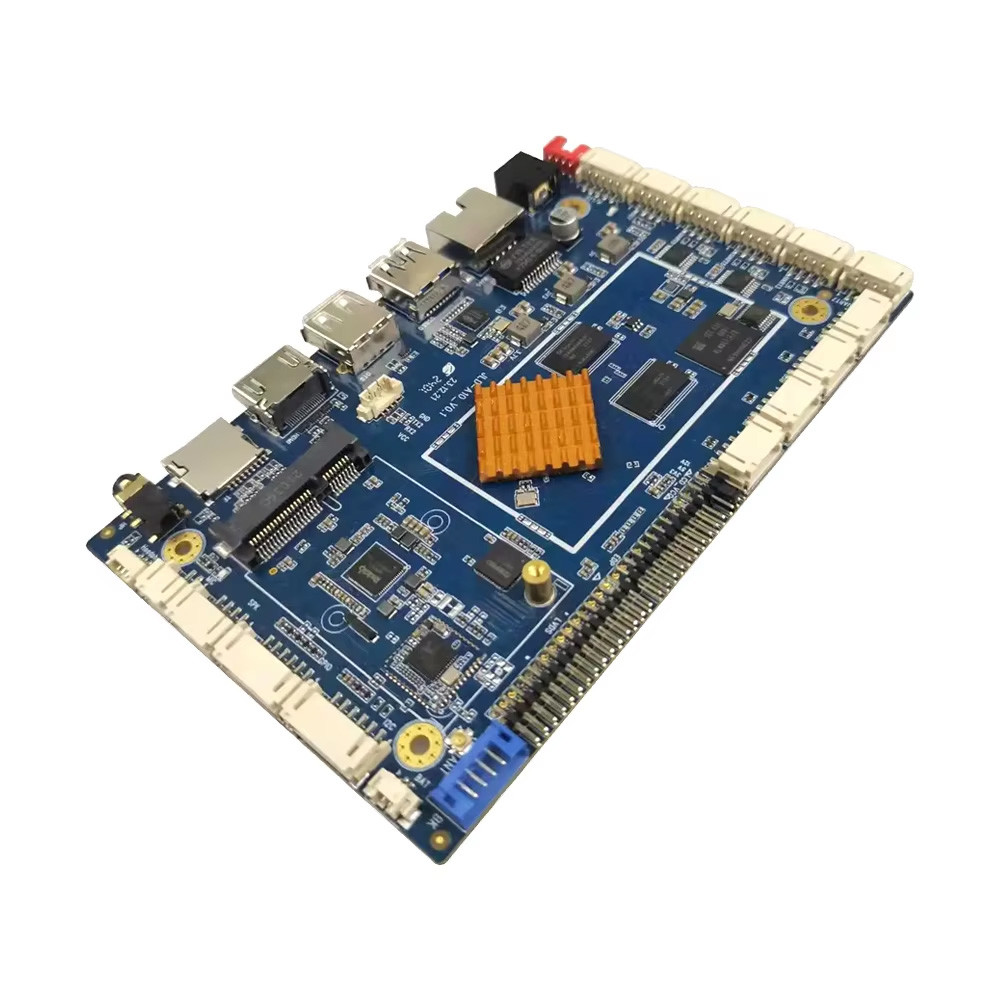

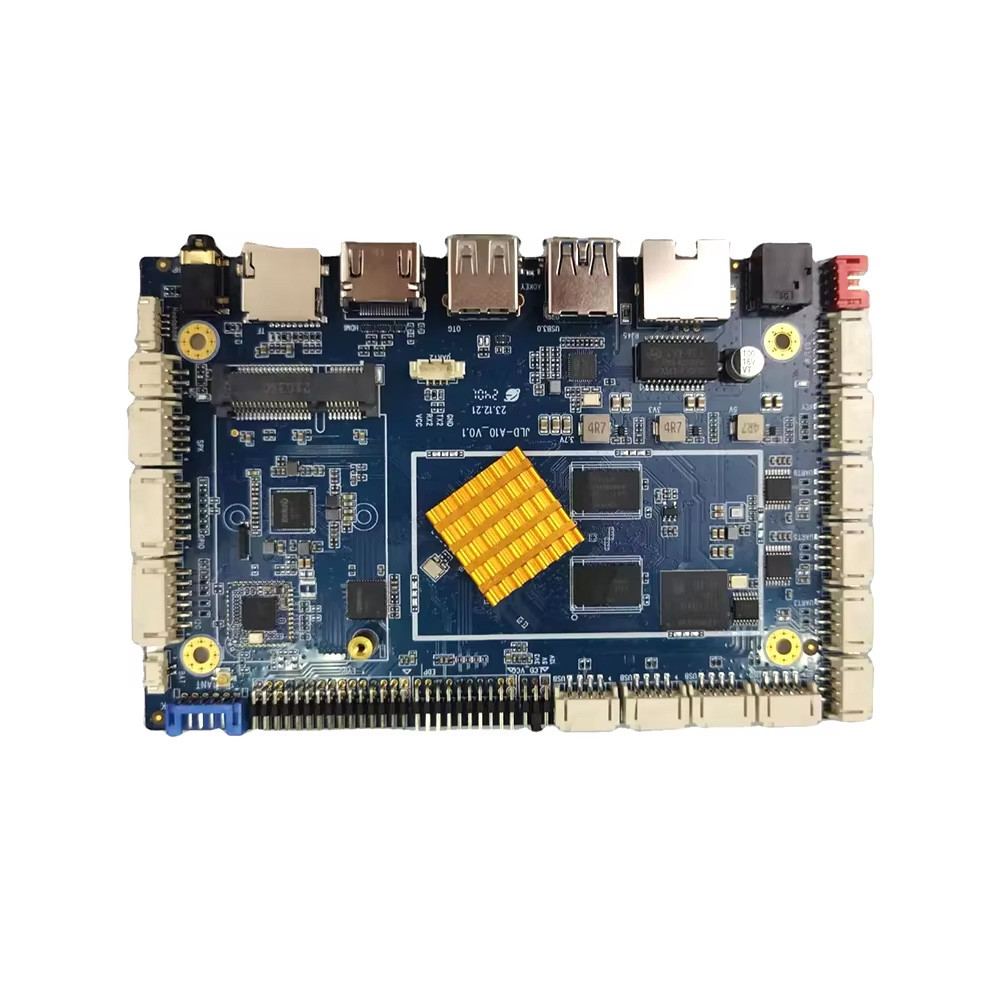

Product Photos

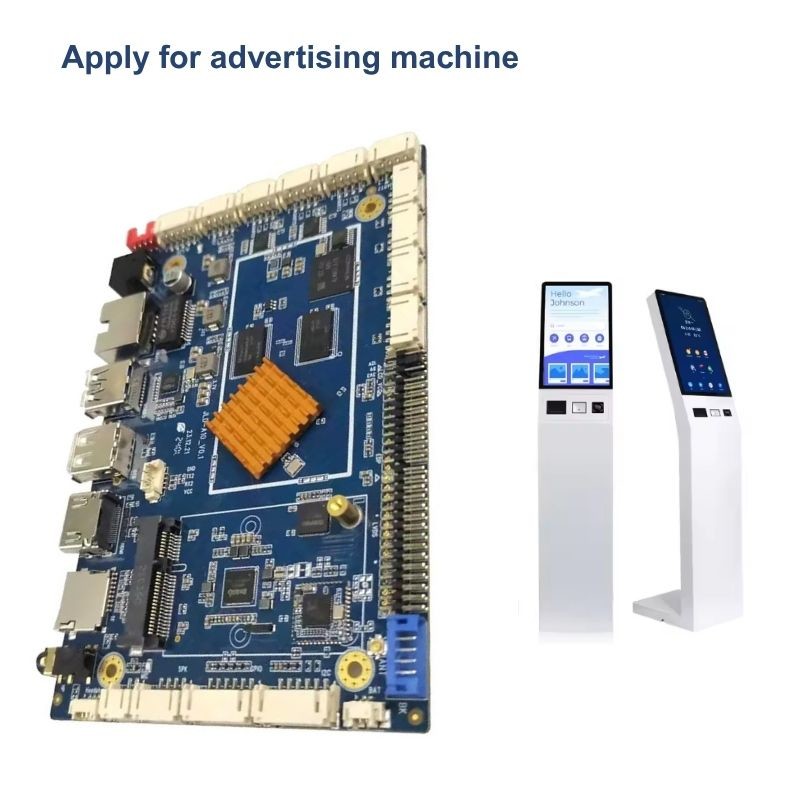

Application of Android Motherboard JLD-A10
- Advertising machine
- All-in-one machine
- Self service terminal
- Queuing machine
- Human-computer interaction machine
Certificate
Customer Review
Packing
- At Buyer's Request
- Inner, vacuum package
- Outer, standard export carton
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
