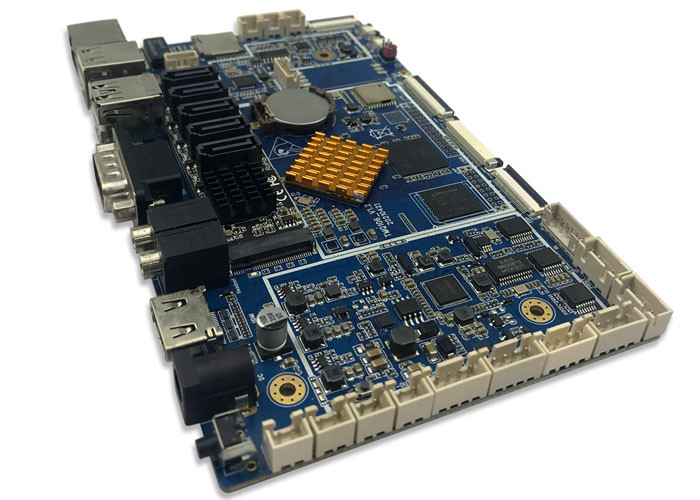

RK3399 Industrial ARM Motherboard Mali-T860 GPU PCBA Board ARM Embedded Board
Product Overview
The Industrial ARM Motherboard JLD-A06 integrates 10/100/1000M Ethernet interfaces for flexible network adaptation. It supports both 2.4G/5G WiFi and Bluetooth for enhanced deployment flexibility. The 2.4G band offers superior wall penetration for complex environments, while the 5G band provides high-speed, low-latency performance for demanding applications like HD video transmission. With dual I2C touch screen interfaces, it enables multi-touch functionality for industrial automation and interactive terminals.
Key Features
- 4K HD decoding capability
- Six-core CPU for superior processing power
- Multiple display support: LVDS (double 8), EDP, MIPI, HDMI
- Mali-T860 GPU for advanced graphics processing
- Flexible memory options: 2GB/4GB/6GB LPDDR4
- Comprehensive connectivity options including USB 2.0/3.0 and OTG
Technical Specifications
| Parameter |
Specification |
| Expansion Slots |
M.2 PCIE |
| PCB Size |
164mm × 100mm × 1.6mm |
| Power Supply |
DC12V3A Input 7.4V Li-ion Battery |
| Audio Output |
Stereo with Dolby Sound Effect support |
| GPU |
Mali-T860 GPU |
| Touch Screen Interface |
I2C Interface |
| EDP Screen Interface |
Supports 1920×1080P resolution |
| Ethernet |
10/100/1000M |

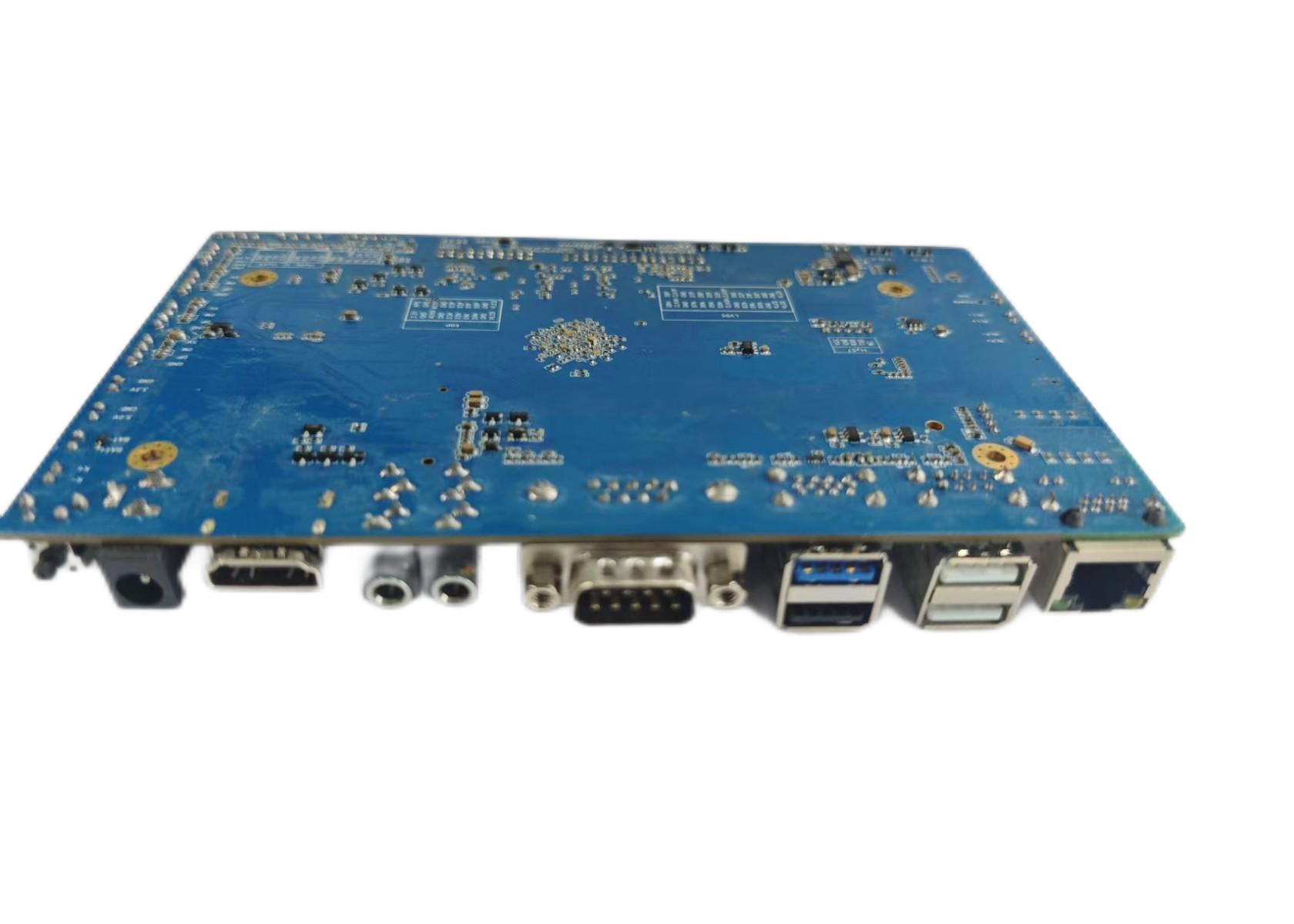

| USB Ports |
3× internal USB 2.0, 2× external USB 2.0, 1× USB 3.0, 1× OTG |
Applications

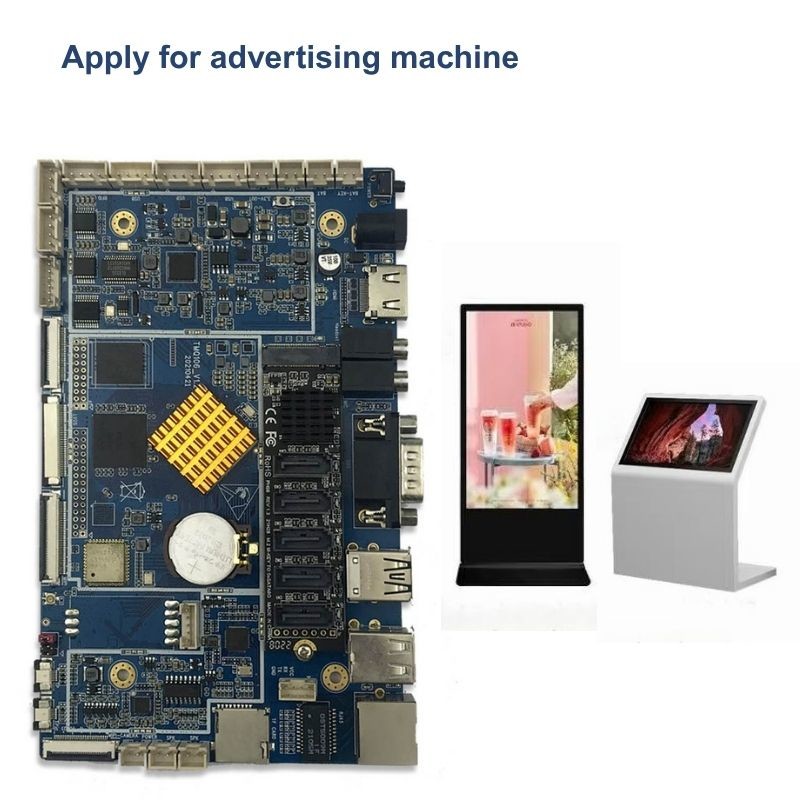

The JLD-A06 is ideal for advertising machines, digital signage, intelligent self-service terminals, and other commercial display applications. Its industrial-grade design ensures reliable performance in demanding environments.
Customization Options
Brand: JEWELLED
Model: JLD-A06
Origin: China
Power: DC12V3A Input 7.4V Li-ion Battery
Wireless: 2.4G/5G WiFi + BT
Storage: TF-CARD, M.2 SSD
Operating Temperature: -20°C to 80°C
MIPI Interface: Supports 1920×1080 resolution screens
Support & Services
Our technical support team provides comprehensive assistance including firmware updates, product training, and customization services to ensure optimal performance and customer satisfaction.
Package Contents
- Industrial ARM Board
- Power adapter
- Quick start guide
Frequently Asked Questions
Q: What is the brand name of the Industrial ARM Board?
A: The brand name is JEWELLED.
Q: What is the model number of the Industrial ARM Board?
A: The model number is JLD-A06.
Q: Where is the Industrial ARM Board manufactured?
A: It is manufactured in China.
Q: What are the key features of the JLD-A06?
A: It features advanced processing, multiple connectivity options, and a rugged industrial design.
Q: Is technical support available?
A: Yes, comprehensive technical support is available for all inquiries and issues.
