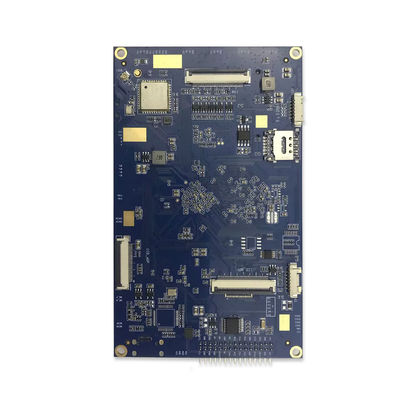

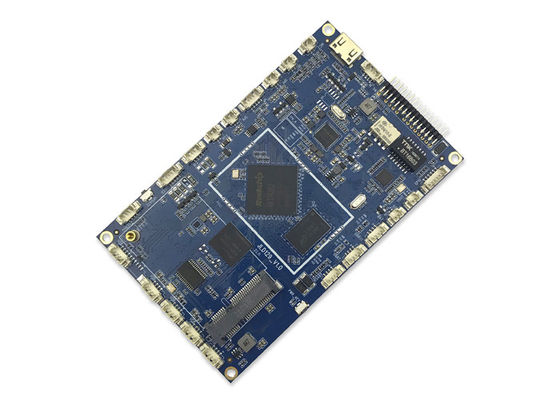

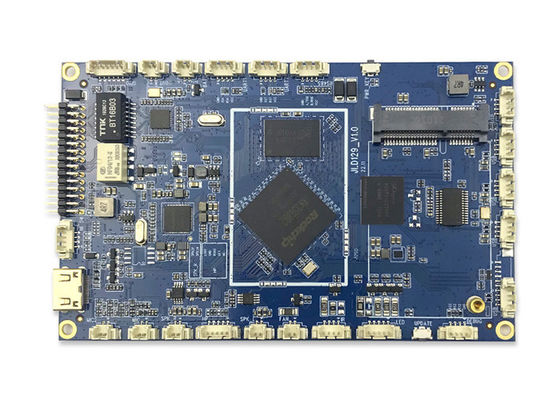

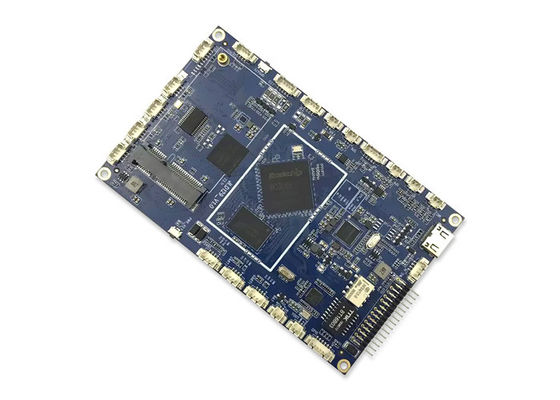

Relay Support Rockchip Rk3568 Arm Android Board Face Recognition Access Systems Motherboard JLD-F03

The JLD-F03 Arm Android board is a powerful, flexible, and reliable solution for building advanced face recognition access systems, offering both performance and scalability for various security applications.

• High-Performance Processing: RK3568 processor with optional 4G/8G RAM ensures fast and accurate face recognition
• High-Resolution Camera Support: MIPI and USB camera compatibility for detailed facial image capture
• Expandable Storage: Up to 64G flash memory and TF card support for large user databases and logs
• Network Connectivity: Wired and wireless options for seamless integration with cloud-based systems
• User-Friendly Interface: Touchscreen support and Android OS provide intuitive operation
• Durability: Wide operating temperature range (-20°C to 80°C) and industrial-grade design

• Processor: RK3568 with maximum frequency of 2.0 GHz
• Memory: 2G/4G/8G DDR4 optional (standard 2G)
• Flash Memory: 16G to 64G optional (standard 16G)
• Video Output: EDP (2560×1440), MIPI format
• Audio Output: Stereo sound with Dolby sound effects
• Network: 10/100/1000M wired and 2.4G wireless WiFi
• Operating System: Android 11, Ubuntu 20.04
• PCB Size: 140mm × 91mm
• Power Supply: DC12V/3A input
• Touch Screen: Supports I2C and USB interface multi-touch capacitive screens

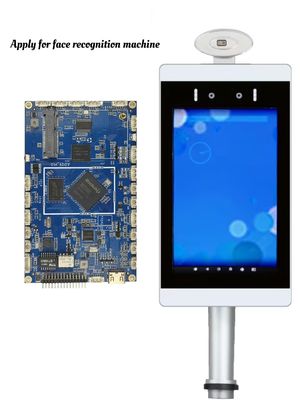

• Face Recognition Access Systems
• Time attendance devices
• Door access systems
• Security and surveillance solutions

• Custom packaging available
• Standard: Vacuum package (inner), export carton (outer)
