RK3288 Intelligent Face Recognition Channel Gate Ban Linux Embedded Board JLD-F02

1 piece sample is supported.
MOQ
$50-$90
Price
RK3288 Intelligent Face Recognition Channel Gate Ban Linux Embedded Board JLD-F02
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Linux Embedded Board
CPU: RK3288 Quad-core Cortex-A17 Architecture, And The Highest Frequency Of The Quad-core Is 1.8 GHZ
Audio Output: Stereo, Support The Social Sound Effects
EMMC Capacity: 8G/16G/32G/64G/ 128G Options
Memory Card Support: TF Card Up To 32G
Upgrade Options: Firmware Updates
Layer: 4
PCB Size: 113mm X 80mm X 1.6mm
OS: Supports Android 5.1/ 7.1/ Linux
Network Speed: 10/100/1000 MHz LAN
Highlight:

RK3288 face recognition gate board

,

Linux embedded board with warranty

,

Intelligent channel gate embedded system
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-F02
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: TT /Paypal
Supply Ability: 100K/month
Product Description
RK3288 Intelligent Face Recognition Channel Gate Ban Linux Embedded Board JLD-F02
Product Overview

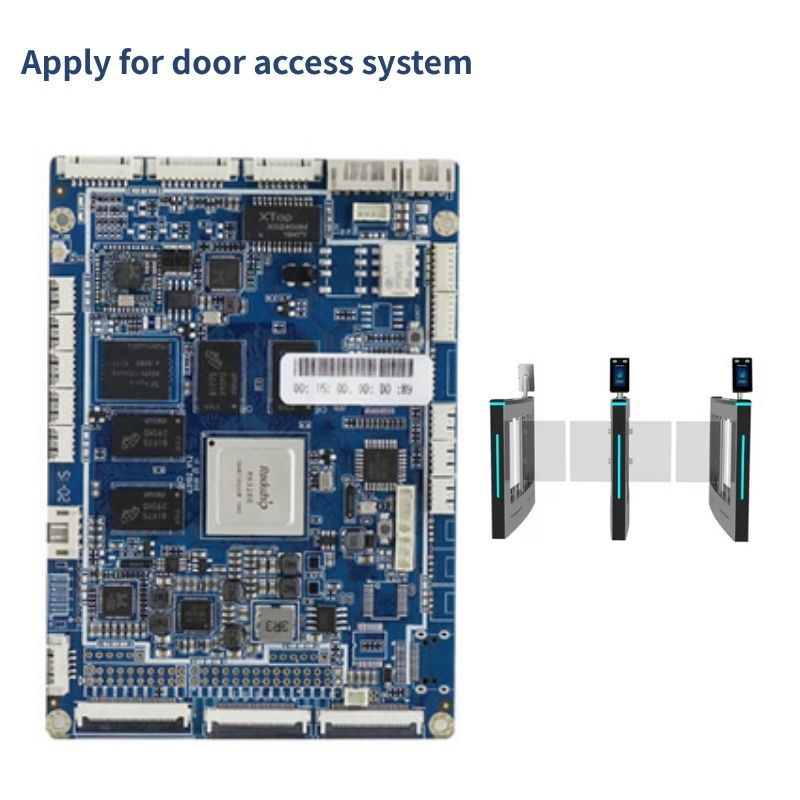

The JLD-F02 Linux Embedded Board utilizes the powerful RK3288 processor with quad-core Cortex-A17 architecture, delivering high clock speeds to meet the demanding computational requirements of facial recognition algorithms. This ensures rapid and accurate facial feature extraction and comparison capabilities.
Equipped with 2G/4G LPDDR3 memory and 8G-128G eMMC storage options, this board supports running multiple concurrent tasks while providing ample storage for facial data and related applications, ensuring optimal system performance and reliability.
RK3288 Intelligent Face Recognition Channel Gate Ban Linux Embedded Board JLD-F02 0 RK3288 Intelligent Face Recognition Channel Gate Ban Linux Embedded Board JLD-F02 1
Technical Specifications
  • CPU: RK3288 Quad-core Cortex-A17 architecture, up to 1.8 GHz
  • GPU: Mali-T764 GPU with AFBC support and embedded 2D acceleration hardware
  • Memory: 2G/4G LPDDR3
  • eMMC Storage: 8G/16G/32G/64G/128G options
  • Video Output: HDMI, MIPI, EDP, LVDS formats
  • Audio Output: Stereo with social sound effects support
  • Maximum Resolution: 3840*2160
  • Ethernet: 1000MHz wired network
  • Wireless Network: 2.4G/5G dual-band WiFi
  • Operating Systems: Android 5.1/7.1/10.0, Linux Ubuntu
  • PCB Size: 113mm * 80mm
  • Power Input: DC 12V
  • Dual-screen Display: Supported
  • External Memory: TF-CARD support
  • USB Interfaces: Five ports (including one OTG)
  • Serial Ports: Four ports (RS232 & TTL options)
  • RTC: Supported
  • Camera: MIPI camera support
  • Operating Temperature: -20°C to 80°C
Interface Configuration
RK3288 Intelligent Face Recognition Channel Gate Ban Linux Embedded Board JLD-F02 2 RK3288 Intelligent Face Recognition Channel Gate Ban Linux Embedded Board JLD-F02 3
Interface Specifications
Interface Description
HDMI HDMI output
OTG Option Choose OTG output
RTC_BATTERY RTC battery
MIPI_CAMERA_IR MIPI camera IR interface
LVDS_OUT LVDS output
MIPI_CAMERA MIPI camera input
EDP_OUT EDP output
MIPI_LCD MIPI LCD output
LED Indicator Output LED indicator output
BL_LCD Display backlight power supply and control
SPK Output Speaker output
USB HOST (12-15) USB HOST 2.0 ports
I2C I2C interface
Wiegand/RS485 Wiegand interface/RS485
USB HOST/USB OTG USB HOST 2.0 and OTG port
RJ45 Wired 1000MHz network
Relay Output Relay output
UART Serial port TTL
DC_IN DC power input
ADC/IR/LED ADC/IR/LED indicator interface
TP1 Capacitive touch panel
GPIO GPIO 1*6 interface
MIC_IN Microphone input
UART (27-31) Serial port TTL/RS232
EDP_VCC EDP power selection
LVDS_VCC LVDS power selection
PWR/ADC/RST Power key/ADC key/Reset key
RST_KEY Reset key
MCU_IO MCU IO port
ADC_KEY ADC key
Tamper KEY Tamper key
WIFI/BT WIFI/BT antenna port (2.4G/5G)
TF_CARD TF card socket
TP2 FPC TP interface
This motherboard offers extensive application versatility, with specific use cases tailored to meet diverse customer functional requirements across various industrial and commercial implementations.
