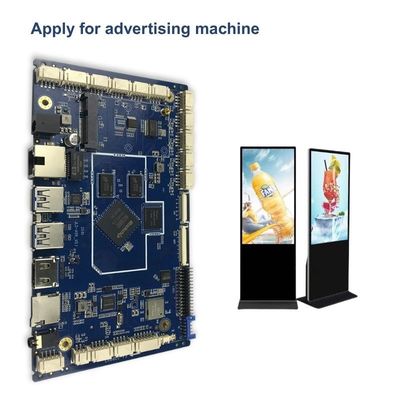

Android Embedded Board Android 11 RK3568 ARM G52 2EE Motherboard For Advertising Machine
Description of JLD-A09 Android Motherboard
The JLD-A09 Android motherboard, with its hard core configuration of RK3568 processor and ARM G52 2EE GPU, has become a performance benchmark in the field of smart devices, demonstrating outstanding strength in commercial displays, smart terminals, and other scenarios.
As the core of JLD-A09, the RK3568 quad core Cortex-A55 64 bit processor achieves a perfect balance between efficient computation and low power consumption at a maximum frequency of 2.0GHz. In commercial display scenarios, it is easy to drive multitasking systems while running advertising playback software, touch interaction programs, and data statistics tools, ensuring smooth switching of 4K advertising videos and a 30% increase in response speed compared to traditional motherboards.
The addition of ARM G52 2EE GPU has greatly enhanced the graphics processing capabilities of JLD-A09 motherboard. It supports multiple graphics standards such as OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1. In intelligent interactive terminals, it can present delicate 3D animations and dynamic interfaces, with touch operation latency as low as 50ms. At the same time, the efficient processing capability of the GPU reduces CPU load, allowing the system to maintain stable operation in high concurrency scenarios.
Feature of JLD-A09 Android Motherboard
-
Support LVDS, MIPI, EDP, HDMI interface display and i2c touch panel,
-
Rich Interaction: USB 2.0 USB3.0, com port, HDMI, MIPI EDP LVDS, Mini PCIE interface, etc.
-
Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for option, BT
-
Strong anti-electromagnetic interference and Electromagnetic compatibility.
-
Compitable for major mainstream manufacturers' POS application software, stable performance.

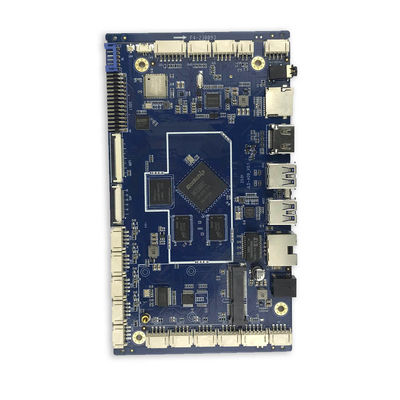

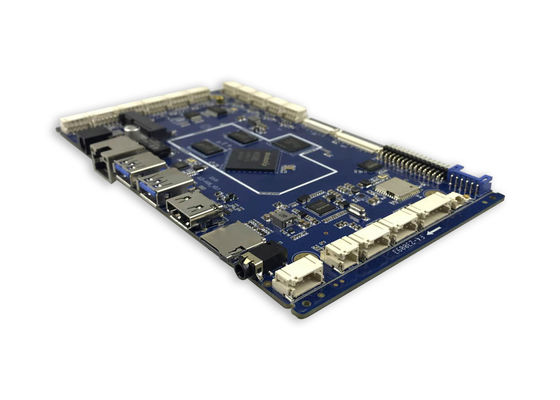

Interface Photos of JLD-A09 Android Motherboard
Main Parameters of JLD-A09 Android Motherboard
|
Processor
|
RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz |
| GPU |
ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| NPU |
1TOPS |
|
Memory
|
2G/4G/8G DDR4 optional |
|
EMMC
|
16G-128G optional |
|
Display
|
Support LVDS,EDP,MIPI,HDMI
|
|
Audio Output
|
Stereo, support Dolby sound effect |
|
Audio port
|
3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface
|
|
Ethernet
|
10/100/1000M |
|
Wi-Fi
|
2.4G/5G WiFi BT
|
|
OS
|
Android 11/ Ubuntu 20.04/Debian 10 |
| TP |
I2C /USB interface TP |
|
Memory card type
|
TF-CARD |
|
USB Interface
|
Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce)
|
|
Serial port
|
7 in total, optional types, TTL (1-7 pcs), RS232 (0-6 pcs), RS485(0-2 pcs) |
|
RTC
|
Support power-off clock memory, automatic power on and off |
|
Camera
|
USB camera |
|
PCB Size
|
146mm*102mm*1.6mm |
|
Power supply
|
DC12V-24V input |
| Temperature |
-20°- 80℃ |
Application of JLD-A09 Android Motherboard
- Advertising Machine
- Self-service terminals
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
Any inquiry, please leave message to us!
