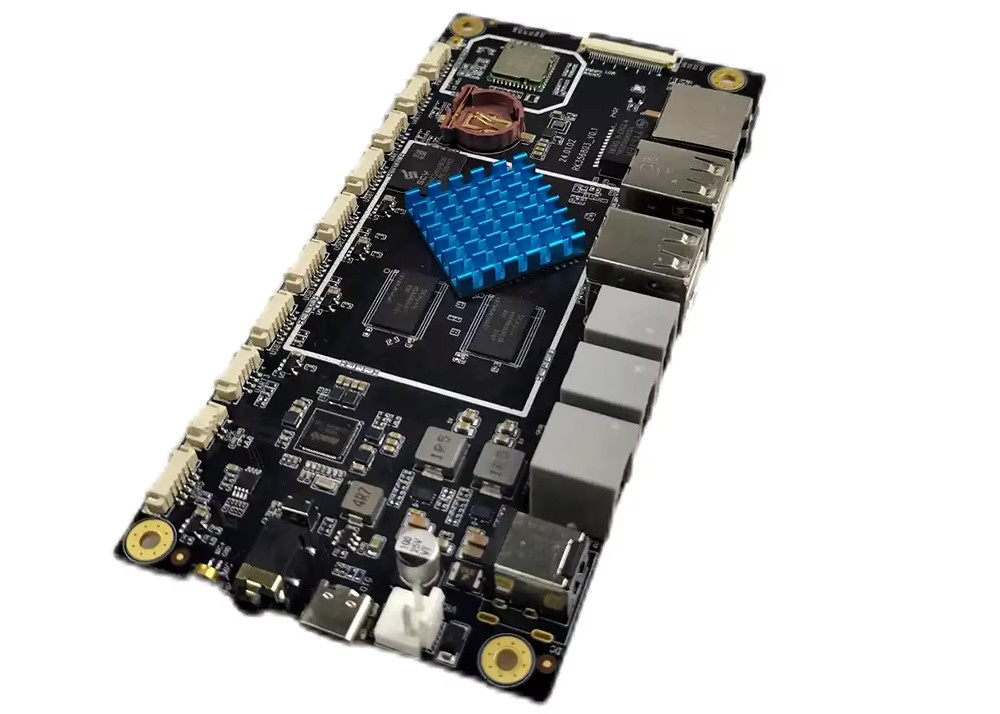

RK3568 Motherboard OEM Customized Development Android Motherboard P08 ARM G52 2EE CPU Board
The P08 motherboard natively supports TTL and RS232 serial ports, perfectly adapting to the multi peripheral connection requirements of POS machines. TTL serial port can efficiently connect close range low-power devices such as barcode scanners and NFC card readers, enabling fast collection of payment information. The RS232 serial port can stably interface with peripheral devices such as receipt printers and cash boxes.
The P08 motherboard is fully compatible with LVDS, EDP, and MIPI video formats and is suitable for various POS display requirements. LVDS driven large-size customer display screen, displaying transaction amounts and member information clearly; EDP is compatible with high-definition main screens to ensure smooth and clear interfaces for order entry and product inquiry; MIPI meets the narrow bezel screen requirements of small portable POS machines.
Technical Parameters of High-Performance P08
| Specification |
Details |
| Memory |
2G/4G/8G DDR4 For Option |
| Wireless |
2.4G/5G WiFi BT |
| Audio output |
3.5mm Headphone Interface, MIC, 2P1.25 Speaker Interface |
| PCB size |
146mm*70mm*1.6mm |
| Touch panel |
I2C And USB Port Touch Panel |
| Memory card |
TF-CARD |
| Temperature |
-20° To 80℃ |
| Embedded |
Yes |
| Power supply |
DC12V3A Input (Printer Not Included) |
| OS |
Android 11/ Ubuntu 20.04 |
Applications of Embedded Main Board JLD-P08
Supermarket Smart Electronic Scale: The P08 motherboard supports HDMI and LVDS interfaces, with rich interface configurations that can connect external devices such as barcode scanners, printers, and cash boxes, meeting the diverse functional requirements of supermarket smart electronic scales.
POS machine cash register system: RK3568 motherboard P08 integrates multiple advanced technologies, integrating multiple links of the cash register process to achieve fast and accurate sales settlement. The P08 motherboard can maintain rapid response when processing large amounts of transaction data.
Packing and Shipping
Product Name: Android Embedded Board
Description: High-performance embedded board running Android OS
Package Contents:
- Android Embedded Board
- Power Adapter
- User Manual
Shipping Information:
- Shipping Method: Standard Shipping
- Estimated Delivery Time: 5-7 business days
Customer Review
FAQ
Q: What is the brand name of the Android Embedded Board?
A: The brand name is JEWELLED.
Q: What is the model number of the Android Embedded Board?
A: The model number is JLD-P08.
Q: Where is the Android Embedded Board manufactured?
A: The Android Embedded Board is manufactured in China.
Q: What is the certification of the Android Embedded Board?
A: The Android Embedded Board is CE certified.
Q: What are the payment terms for purchasing the Android Embedded Board?
A: The payment terms are T/T.
