RK3568 Quad-core Cortex-A55 64-bit Android Motherboard 2.4G/5G WiFi BT Adsvertising Machine Motherboard
Description of JLD-A09 Android Motherboard
The JLD-A09 Android motherboard supports 10/100/1000M Ethernet, making it easy to adapt to different network environments. At a speed of 10M, it is suitable for scenarios with low network bandwidth requirements and simple network environments, such as file sharing within small offices. 100M speed can meet daily office and home network applications, such as smooth playback of high-definition online videos and regular web browsing. And 1000M (Gigabit) Ethernet speed can cope with large data transmission scenarios, such as enterprise level data backup, high-speed file downloads, etc., greatly improving data transmission efficiency.
The JLD-A09 Android motherboard supports 2.4G/5G WiFi and BT (Bluetooth). The 2.4G WiFi signal has strong penetration and can cover a large range, making it suitable for connecting devices over long distances. For example, in a home, even if the device is far away from the wireless router, it can maintain a relatively stable connection. 5G WiFi has low frequency interference and high transmission speed, making it suitable for applications that require high network speed, such as real-time transmission of high-definition videos, online gaming, etc. It can significantly reduce latency and provide a smooth experience. The Bluetooth function facilitates connection with various Bluetooth devices such as Bluetooth speakers, Bluetooth keyboards, Bluetooth controllers, etc., expanding the usage scenarios of the motherboard.
The JLD-A09 Android motherboard adopts RK3568 quad core Cortex-A55 64 bit processor, with a maximum frequency of 2.0GHz. When running some large Android applications, such as complex graphic design software and high-definition video editing software, the high frequency of 2.0GHz can provide strong power, ensuring smooth software operation and greatly improving work efficiency and user experience.
Feature of JLD-A09 Android Motherboard
-
Support LVDS, MIPI, EDP, HDMI interface display and i2c touch panel,
-
Rich Interaction: USB 2.0 USB3.0, com port, HDMI, MIPI EDP LVDS, Mini PCIE interface, etc.
-
Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for option, BT
-
Strong anti-electromagnetic interference and Electromagnetic compatibility.
-
Compitable for major mainstream manufacturers' POS application software, stable performance.

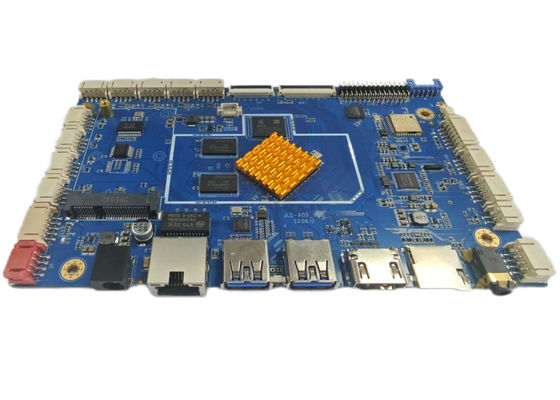

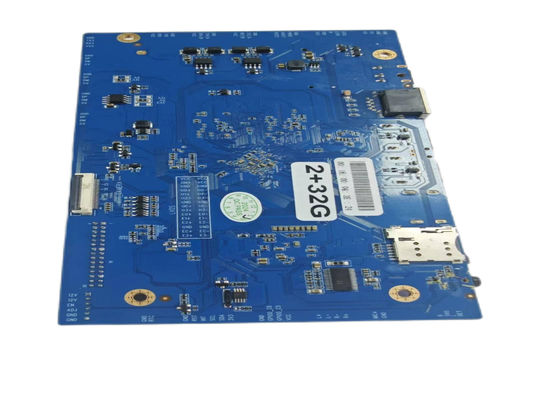

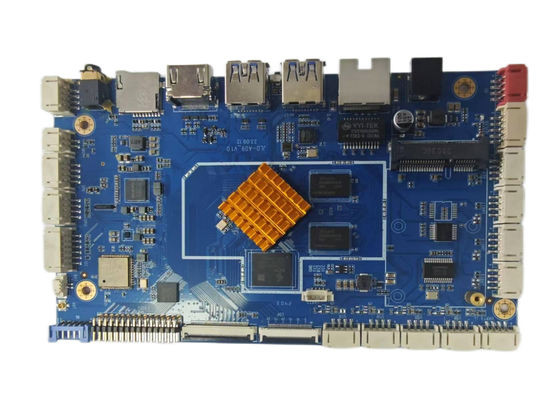

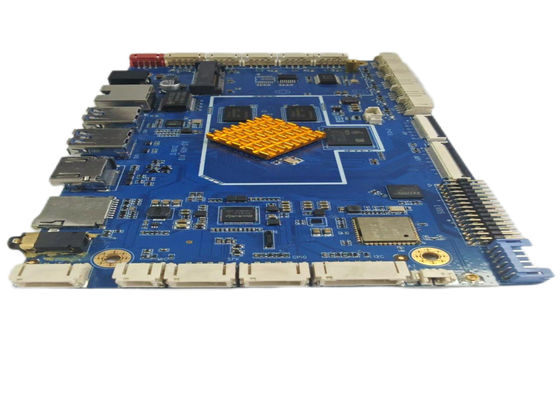

Interface Photos of JLD-A09 Android Motherboard
Main Parameters of JLD-A09 Android Motherboard
|
Processor
|
RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz |
| GPU |
ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| NPU |
1TOPS |
|
Memory
|
2G/4G/8G DDR4 optional |
|
EMMC
|
16G-128G optional |
|
Display
|
Support LVDS,EDP,MIPI,HDMI
|
|
Audio Output
|
Stereo, support Dolby sound effect |
|
Audio port
|
3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface
|
|
Ethernet
|
10/100/1000M |
|
Wi-Fi
|
2.4G/5G WiFi BT
|
|
OS
|
Android 11/ Ubuntu 20.04/Debian 10 |
| TP |
I2C /USB interface TP |
|
Memory card type
|
TF-CARD |
|
USB Interface
|
Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce)
|
|
Serial port
|
7 in total, optional types, TTL (1-7 pcs), RS232 (0-6 pcs), RS485(0-2 pcs) |
|
RTC
|
Support power-off clock memory, automatic power on and off |
|
Camera
|
USB camera |
|
PCB Size
|
146mm*102mm*1.6mm |
|
Power supply
|
DC12V-24V input |
| Temperature |
-20°- 80℃ |
Application of JLD-A09 Android Motherboard
- Advertising Machine
- Self-service terminals
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
Any inquiry, please leave message to us!
