RK3568 Quad-core Cortex-A55 64-bit Android Motherboard 2.4G/5G WiFi BT Adsvertising Machine Motherboard
Description of JLD-A09 Android Motherboard
The RTC module installed on the JLD-A09 motherboard has power-off clock memory capability, which can continuously time even in a power-off state through the onboard backup power supply. This feature ensures that there is no need to recalibrate the time after system restart, which is crucial for applications that require precise timestamps, such as data logging and scheduled tasks. Simultaneously supporting automatic power on/off function, users can preset the start/stop time of the device. For example, in the digital signage scenario, automatic startup at 8am and automatic shutdown at 10pm on weekdays can be set to significantly reduce energy consumption and extend equipment lifespan. The principle is to configure RTC interrupt through software, and when the set time is reached, trigger the main controller to execute the power on/off command, and the response error can be controlled within seconds.
The JLD-A09 motherboard is natively compatible with MIPI interface cameras, and with high-speed serial transmission technology, it can achieve data throughput of several GB per second. This provides a hardware foundation for high-definition image capture, supporting up to 8 million pixel cameras and achieving stable recording at 30 frames per second at 1080P resolution.
Feature of JLD-A09 Android Motherboard
-
Support LVDS, MIPI, EDP, HDMI interface display and i2c touch panel,
-
Rich Interaction: USB 2.0 USB3.0, com port, HDMI, MIPI EDP LVDS, Mini PCIE interface, etc.
-
Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for option, BT
-
Strong anti-electromagnetic interference and Electromagnetic compatibility.
-
Compitable for major mainstream manufacturers' POS application software, stable performance.

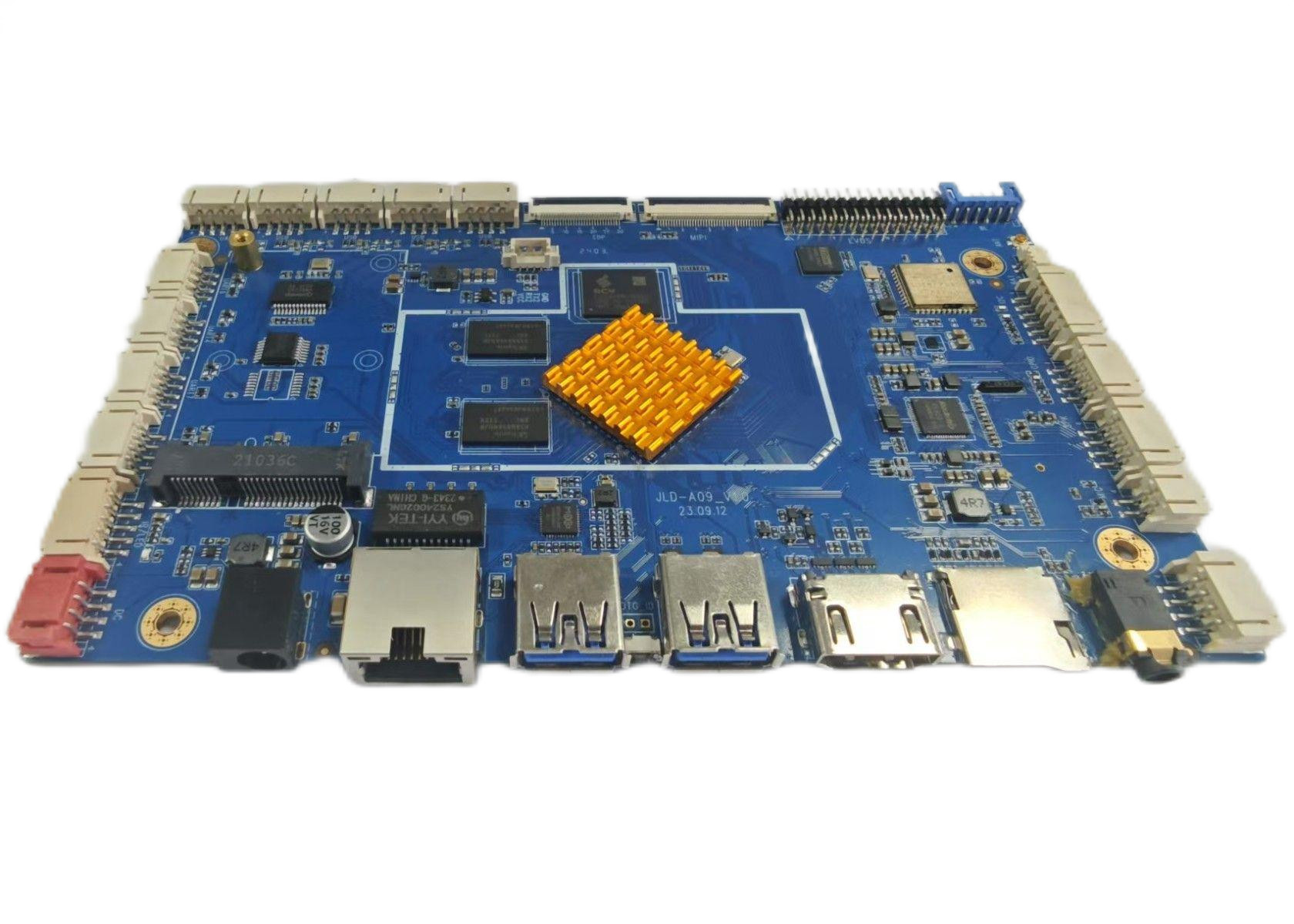

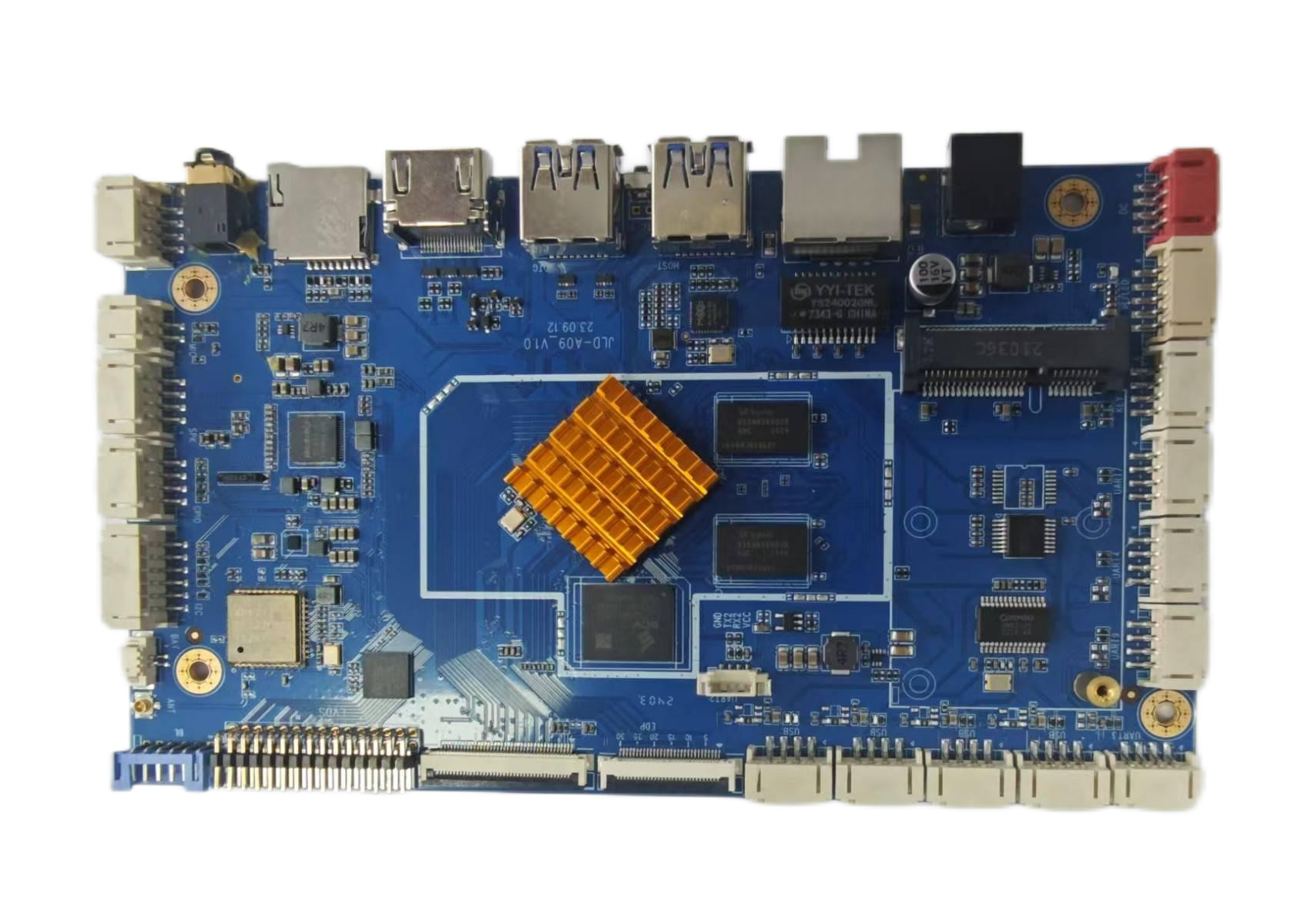

Interface Photos of JLD-A09 Android Motherboard
Main Parameters of JLD-A09 Android Motherboard
|
Processor
|
RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz |
| GPU |
ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| NPU |
1TOPS |
|
Memory
|
2G/4G/8G DDR4 optional |
|
EMMC
|
16G-128G optional |
|
Display
|
Support LVDS,EDP,MIPI,HDMI
|
|
Audio Output
|
Stereo, support Dolby sound effect |
|
Audio port
|
3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface
|
|
Ethernet
|
10/100/1000M |
|
Wi-Fi
|
2.4G/5G WiFi BT
|
|
OS
|
Android 11/ Ubuntu 20.04/Debian 10 |
| TP |
I2C /USB interface TP |
|
Memory card type
|
TF-CARD |
|
USB Interface
|
Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce)
|
|
Serial port
|
7 in total, optional types, TTL (1-7 pcs), RS232 (0-6 pcs), RS485(0-2 pcs) |
|
RTC
|
Support power-off clock memory, automatic power on and off |
|
Camera
|
USB camera |
|
PCB Size
|
146mm*102mm*1.6mm |
|
Power supply
|
DC12V-24V input |
| Temperature |
-20°- 80℃ |
Application of JLD-A09 Android Motherboard
- Advertising Machine
- Self-service terminals
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
Any inquiry, please leave message to us!
