JLD Digital Signage Motherboard With 4G MINI PCIE Interface For Medium And Large Size Advertising Machines

1 piece sample is supported.
MOQ
$50-$90
Price
JLD Digital Signage Motherboard With 4G MINI PCIE Interface For Medium And Large Size Advertising Machines
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Digital Signage Advertising Motherboard
Audio Output: Stereo, Support Dolby
Memory: 2G/4G/8G DDR4 Optional
TP: I2C And USB Interface TP
RTC: Support Power Off Clock Memory, Support Automatic Switch
Temperature: -20°-80℃
Camera: MIPI Camera
Power Supply: DC12V3A Input
PCB Size: 158mm*95mm*1.5mm
Model: JLD-A09
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-A09
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: TT /Paypal
Supply Ability: 100K/month
Product Description

RK3568 Quad-core Cortex-A55 64-bit Android Motherboard 2.4G/5G WiFi BT Adsvertising Machine Motherboard


Description of JLD-A09 Android Motherboard

The JLD-A09 motherboard is a digital signage motherboard designed specifically for medium to large advertising machines, with powerful performance and rich features.The JLD-A09 motherboard is equipped with a 4G MINI PCIE interface, which can be plugged into a 4G module for wireless networking, facilitating remote updates of advertising content and ensuring that the advertising machine always displays the latest information. At the same time, it also supports other networking methods to meet the needs of different usage scenarios. The JLD-A09 motherboard offers multiple choices of 2G/4G/8G DDR4, which can be flexibly configured according to actual application needs to ensure smooth system operation and easy handling of various advertising playback tasks. In terms of storage, eMMC has a capacity of 16G-64G to choose from, which can store a large amount of advertising videos, images, and other materials. The JLD-A09 motherboard has powerful video output capabilities, supporting LVDS (dual 8, resolution up to 19201080), EDP (resolution up to 25601440), and MIPI format video output. It can adapt to various display screens, whether it is high-definition or ultra high definition screens, and can achieve clear and smooth image display, bringing excellent visual experience to the audience. The JLD-A09 motherboard also has rich expansion interfaces that can be connected to external devices such as cameras and touch screens, enabling interactive advertising display, facial recognition, and other functions. Its stable performance and flexible configuration make it an ideal choice for medium to large advertising machines, widely used in shopping malls, airports, stations and other places, helping enterprises efficiently disseminate advertising information and enhance promotional effectiveness.


Feature of JLD-A09 Android Motherboard

  • Support LVDS, MIPI, EDP, HDMI interface display and i2c touch panel,

  • Rich Interaction: USB 2.0 USB3.0, com port, HDMI, MIPI EDP LVDS, Mini PCIE interface, etc.

  • Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for option, BT

  • Strong anti-electromagnetic interference and Electromagnetic compatibility.

  • Compitable for major mainstream manufacturers' POS application software, stable performance.

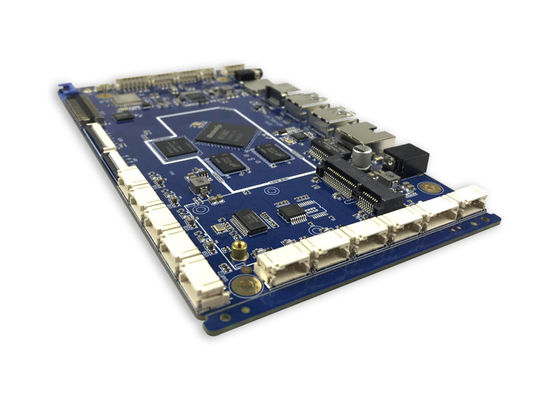

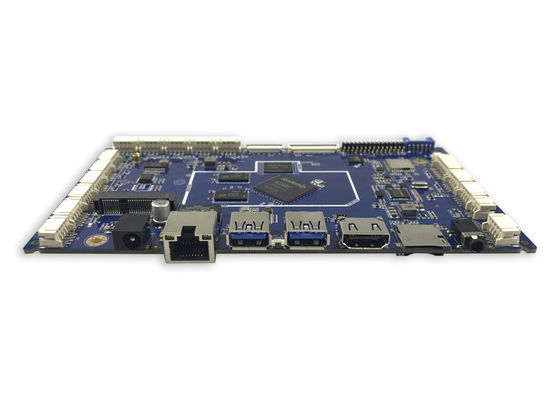

Interface Photos of JLD-A09 Android Motherboard


JLD Digital Signage Motherboard With 4G MINI PCIE Interface For Medium And Large Size Advertising Machines 0



Main Parameters of JLD-A09 Android Motherboard



Processor

RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz
GPU ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1
NPU 1TOPS

Memory

2G/4G/8G DDR4 optional

EMMC

16G-128G optional

Display

Support LVDS,EDP,MIPI,HDMI

Audio Output

Stereo, support Dolby sound effect

Audio port

3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface

Ethernet

10/100/1000M

Wi-Fi

2.4G/5G WiFi BT

OS

Android 11/ Ubuntu 20.04/Debian 10
TP I2C /USB interface TP

Memory card type

TF-CARD

USB Interface

Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce)

Serial port

7 in total, optional types, TTL (1-7 pcs), RS232 (0-6 pcs), RS485(0-2 pcs)

RTC

Support power-off clock memory, automatic power on and off

Camera

USB camera

PCB Size

146mm*102mm*1.6mm

Power supply

DC12V-24V input
Temperature -20°- 80℃

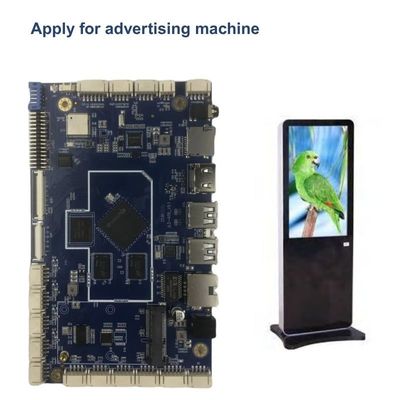

Application of JLD-A09 Android Motherboard

  • Advertising Machine
  • Self-service terminals

JLD Digital Signage Motherboard With 4G MINI PCIE Interface For Medium And Large Size Advertising Machines 1



FAQ



Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.

Any inquiry, please leave message to us!
