Rk3568 Development Board JLD-A09 Embedded LVDS Display Android Motherboard
Description of JLD-A09 Android Motherboard
The JLD-A09 Android motherboard supports 2.4G/5G WiFi, providing users with a high-speed and stable wireless network experience. Whether browsing the web, watching videos, or playing online games, it can run smoothly and meet various daily network needs. At the same time, its BT function facilitates connection with various Bluetooth devices, enabling data transmission, device control, and other operations, expanding the device's usage scenarios.
The JLD-A09 Android motherboard supports the Android 11 system, which has stronger performance optimization and a richer application ecosystem. Users can easily download and use a large number of Android applications to meet diverse functional needs. In addition, it also supports Ubuntu 20.04 system and supports I2C and USB interface touch screen for JLD-A09 Android motherboard. The I2C interface has the characteristics of simplicity and efficiency, which can achieve stable data transmission between the touch screen and the motherboard, ensuring precise response to touch operations. USB interface touch screens have the advantages of strong universality and convenient connection. Users can flexibly choose different types of touch screens according to their actual needs, enhancing the interactive experience of the device. Whether used in smart terminals, industrial control, or other fields, the D6 Android motherboard, with its excellent network, system, and touchscreen interface features, can provide users with a reliable and convenient user experience.
Feature of JLD-A09 Android Motherboard
-
Support LVDS, MIPI, EDP, HDMI interface display and i2c touch panel,
-
Rich Interaction: USB 2.0 USB3.0, com port, HDMI, MIPI EDP LVDS, Mini PCIE interface, etc.
-
Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for option, BT
-
Strong anti-electromagnetic interference and Electromagnetic compatibility.
-
Compitable for major mainstream manufacturers' POS application software, stable performance.

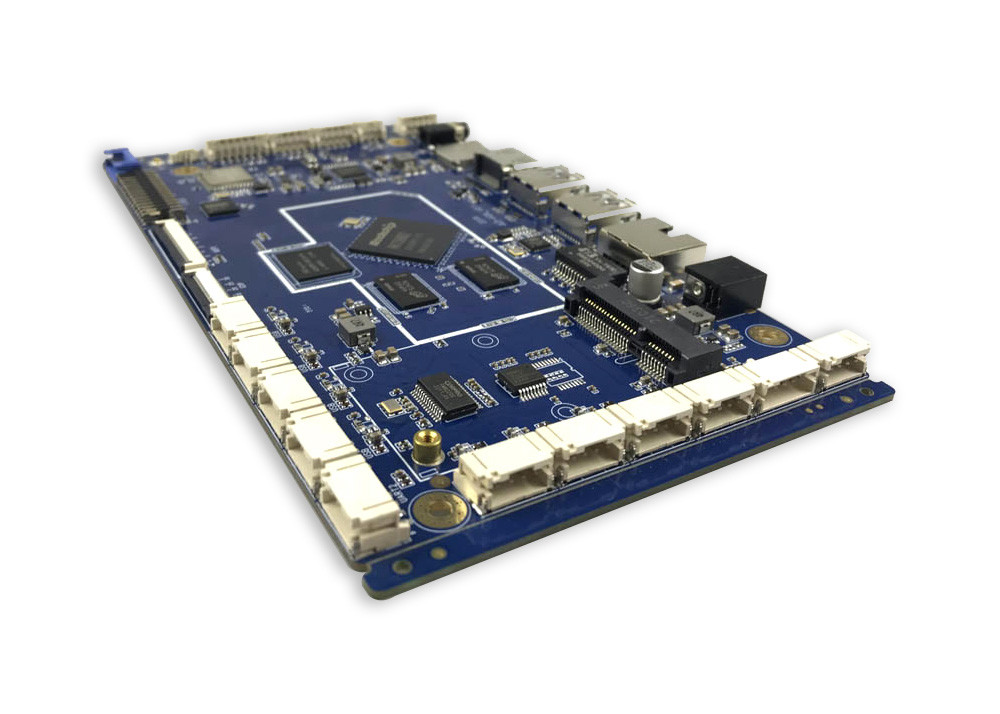

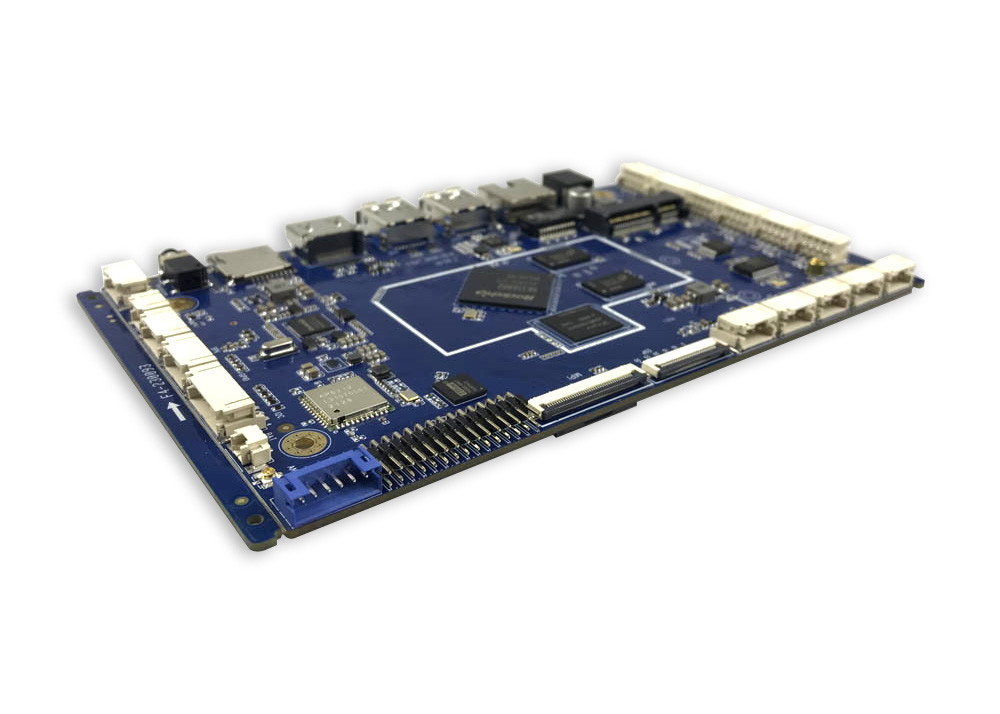

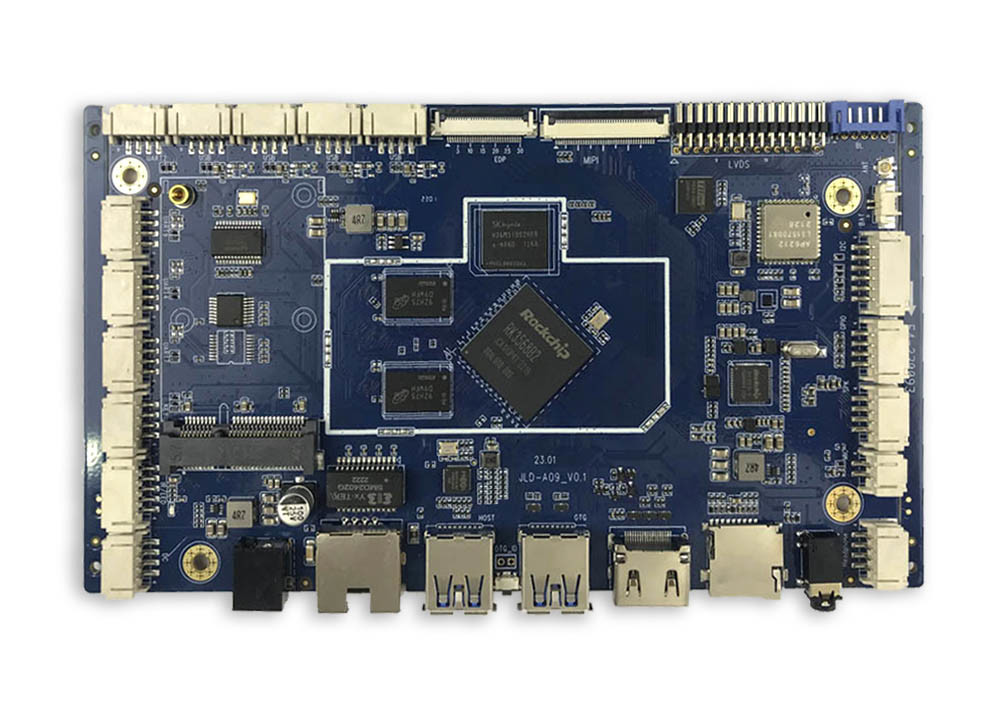

Interface Photos of JLD-A09 Android Motherboard
Main Parameters of JLD-A09 Android Motherboard
|
Processor
|
RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz |
| GPU |
ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| NPU |
1TOPS |
|
Memory
|
2G/4G/8G DDR4 optional |
|
EMMC
|
16G-128G optional |
|
Display
|
Support LVDS,EDP,MIPI,HDMI
|
|
Audio Output
|
Stereo, support Dolby sound effect |
|
Audio port
|
3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface
|
|
Ethernet
|
10/100/1000M |
|
Wi-Fi
|
2.4G/5G WiFi BT
|
|
OS
|
Android 11/ Ubuntu 20.04/Debian 10 |
| TP |
I2C /USB interface TP |
|
Memory card type
|
TF-CARD |
|
USB Interface
|
Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce)
|
|
Serial port
|
7 in total, optional types, TTL (1-7 pcs), RS232 (0-6 pcs), RS485(0-2 pcs) |
|
RTC
|
Support power-off clock memory, automatic power on and off |
|
Camera
|
USB camera |
|
PCB Size
|
146mm*102mm*1.6mm |
|
Power supply
|
DC12V-24V input |
| Temperature |
-20°- 80℃ |
Application of JLD-A09 Android Motherboard
- Advertising Machine
- Self-service terminals
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
