JEWELLED Brand RK3566 Quad Core LVDS EDP HD-MI Android 11 OS Motherboard for Advertising Display Board

1 piece sample is supported.
MOQ
$50-$90
Price
JEWELLED Brand RK3566 Quad Core LVDS EDP HD-MI Android 11 OS Motherboard for Advertising Display Board
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Advertising Display Board
Adaptive Temperature: -20°-80℃
Power Supply: DC12V3A Input
USB Interface 4G: Built-in USB 2.0 Sockets (4), External USB 3.0 HOST (1), External OTG (1) Supports PCIE 4G Function Modules
TP: I2C And USB Interface Touch Screen
Application: Commercial Display
OEM: Welcome
EMMC: 16G-128G
Highlight:

JEWELLED RK3566 Android motherboard

,

LVDS EDP advertising display board

,

HDMI Android 11 OS motherboard
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-A10
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: T/T
Supply Ability: 100K/month
Product Description
JEWELLED Brand RK3566 Quad Core LVDS EDP HD-MI Android 11 OS Motherboard
Product Attributes
Product Name Advertising Display Board
Adaptive Temperature -20°-80℃
Power Supply DC12V3A input
USB Interface 4G Built-in USB 2.0 sockets (4), external USB 3.0 HOST (1), external OTG (1) Supports PCIE 4G function modules
TP I2C and USB interface touch screen
Application Commercial display
OEM Welcome
eMMC 16G-128G
Product Description
The JLD-A10 motherboard features the RK3566 processor with a maximum frequency of 1.8GHz and quad-core Cortex-A55 architecture, delivering efficient computing performance for high-definition video playback, dynamic advertising material loading, and multi-area content synchronization.
Key Features
  • Dual system support: Android 11 and Linux Ubuntu
  • Precise touch interaction via I2C and USB interfaces
  • High-performance ARM G52 2EE GPU supporting OpenGL ES, OpenCL, and Vulkan
  • Compact PCB size (140mm × 91mm × 1.6mm) for space-saving integration
  • Industrial-grade stability with wide temperature range (-20° to 80℃)
Specifications
CPU RK3566 up to 1.8GHz GPU ARM G52 2EE supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
OS Android 11/Linux Ubuntu Memory Card Type TF-CARD
Serial Port 4 total (TTL, RS232, RS485 options) PCB Size 140mm × 91mm × 1.6mm
Audio Output Stereo with Dolby sound effect Ethernet 10/100/1000M
TP I2C and USB interface touch screen

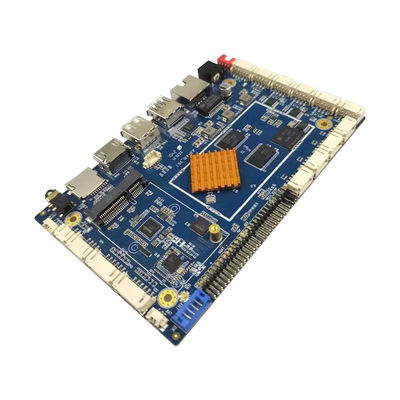

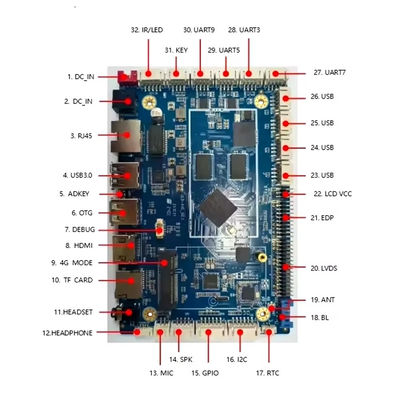

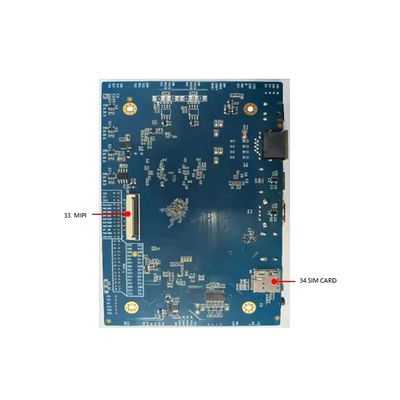

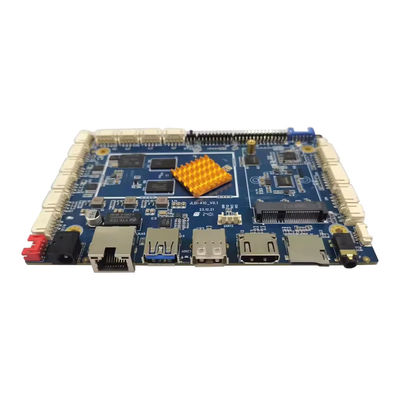

Product Photos
JEWELLED Brand RK3566 Quad Core LVDS EDP HD-MI Android 11 OS Motherboard for Advertising Display Board 0 JEWELLED Brand RK3566 Quad Core LVDS EDP HD-MI Android 11 OS Motherboard for Advertising Display Board 1 JEWELLED Brand RK3566 Quad Core LVDS EDP HD-MI Android 11 OS Motherboard for Advertising Display Board 2 JEWELLED Brand RK3566 Quad Core LVDS EDP HD-MI Android 11 OS Motherboard for Advertising Display Board 3
Applications
Advertising Machines: Smooth 4K playback with dynamic special effects and multi-area image synchronization.
All-in-One Machines: Compact design ideal for teaching and conference systems with multi-user touch interaction.
Self-Service Terminals: Industrial-grade stability for vending machines and government terminals with reliable transaction processing.
Queuing Machines: Supports real-time updates and external device connectivity for efficient queue management.
Human-Computer Interaction: AI computing power and precise touch response for immersive interactive experiences.
JEWELLED Brand RK3566 Quad Core LVDS EDP HD-MI Android 11 OS Motherboard for Advertising Display Board 4 JEWELLED Brand RK3566 Quad Core LVDS EDP HD-MI Android 11 OS Motherboard for Advertising Display Board 5
Packing
  • At Buyer's Request
  • Inner: Vacuum package
  • Outer: Standard export carton
Frequently Asked Questions
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample orders to test and check quality. Customized development PCBA are available.
Q2. What about the lead time?
A: Samples need 3-5 days, mass production takes 1-2 weeks for orders over [quantity].
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT (3-5 days). Airline and sea shipping also available.
Q5. How to proceed an order for PCBA motherboard?
A: 1) Share your requirements 2) We provide quotation 3) Confirm samples 4) Place deposit 5) Production begins.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes, please inform us before production and confirm the design based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty for our products.
