Rockchip RK3566 Development Board Arm Edp Lvds MIPI HDMI ANDROID 11/ Linux Ubuntu Motherboard

1 piece sample is supported.
MOQ
$50-$90
Price
Rockchip RK3566 Development Board Arm Edp Lvds MIPI HDMI ANDROID 11/ Linux Ubuntu Motherboard
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: ANDROID 11/ Linux Ubuntu Motherboard
CPU: RK3566 Highest Frequency Up To 1.8GHZ
TP: I2C And USB Interface Touch Screen
Application: Commercial Display
OEM: Welcome
EMMC: 16G-128G
Display: Support LVDS（dual 8，1920*1080），EDP，MIPI，HDMI
Ethernet: 10/100/1000M
Highlight:

Rockchip RK3566 development board

,

Android 11 motherboard with HDMI

,

Linux Ubuntu ARM motherboard
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-A10
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: T/T
Supply Ability: 100K/month
Product Description
Rockchip RK3566 Development Board Arm Edp Lvds MIPI HDMI ANDROID 11/Linux Ubuntu Motherboard

Product Overview
The JLD-A10 motherboard features the RK3566 processor with quad-core Cortex-A55 architecture, delivering efficient computing performance at up to 1.8GHz frequency. Ideal for commercial displays and interactive applications.
Key Features
  • RK3566 processor with 1.8GHz max frequency
  • Dual system support: Android 11 and Linux Ubuntu
  • Supports multiple display interfaces: LVDS, EDP, MIPI, HDMI
  • Touch screen support via I2C and USB interfaces
  • 10/100/1000M Ethernet connectivity
  • Flexible eMMC options from 16GB to 128GB
Technical Specifications
CPU RK3566 up to 1.8GHz GPU ARM G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
OS Android 11/Linux Ubuntu Memory Card TF-CARD
Serial Ports 4 total (TTL, RS232, RS485 options) PCB Size 140mm × 91mm × 1.6mm
Audio Stereo with Dolby sound effect Ethernet 10/100/1000M

Applications
  • Advertising machines
  • All-in-one machines
  • Self-service terminals
  • Queuing machines
  • Human-computer interaction devices

Product Images

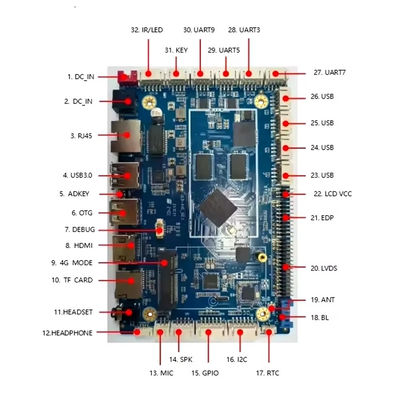

Rockchip RK3566 Development Board Arm Edp Lvds MIPI HDMI ANDROID 11/ Linux Ubuntu Motherboard 0

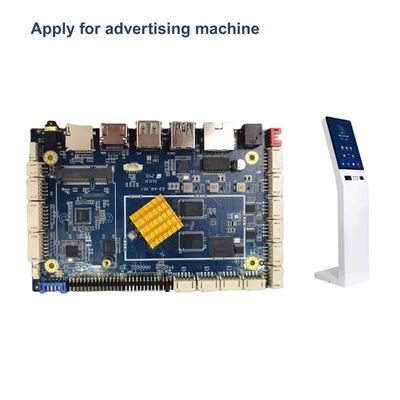

Rockchip RK3566 Development Board Arm Edp Lvds MIPI HDMI ANDROID 11/ Linux Ubuntu Motherboard 1

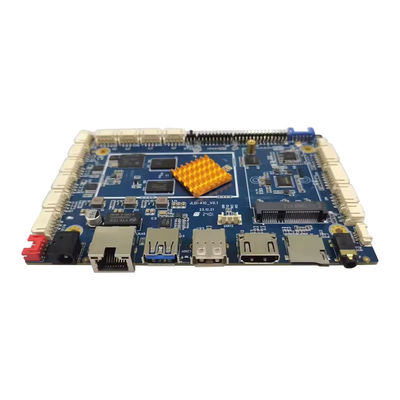

Rockchip RK3566 Development Board Arm Edp Lvds MIPI HDMI ANDROID 11/ Linux Ubuntu Motherboard 2
Certifications

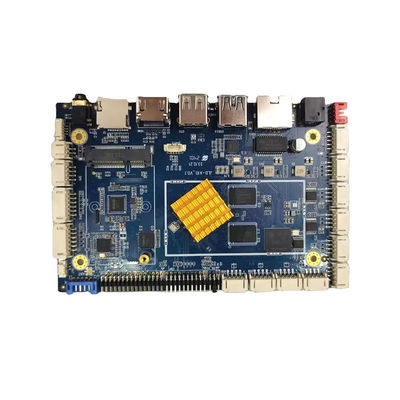

Rockchip RK3566 Development Board Arm Edp Lvds MIPI HDMI ANDROID 11/ Linux Ubuntu Motherboard 3
Packing Information
1. Custom packaging available
2. Inner vacuum package
3. Standard export carton
Frequently Asked Questions
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample orders to test and check quality. Customized development PCBA are available.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT (3-5 days). Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: 1) Share your requirements 2) We provide quotation 3) Confirm samples 4) Place deposit 5) Production begins.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us before production and confirm the design based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty for our products.
