Android/Linux System Compatible With OpenGL Touch Query Machine Motherboard
Description
| CPU |
RK3566 highest frequency up to 1.8GHZ
|
GPU |
ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1
|
|
OS
|
ANDROID 11/Linux Ubuntu
|
Memory card type
|
TF - CARD
|
|
serial port
|
4 in total, types option,TTL(1-4个),RS232(0-3个),RS485(0-2个)
|
PCB size
|
140mm*91mm*1.6mm
|
|
Audio output
|
Stereo, support Dolby sound effect
|
Ethernet
|
10/100/1000M
|
|
TP
|
I2C and USB interface touch screen
|
Summary
Designed for interactive kiosks and smart terminals, this touch query machine motherboard seamlessly runs Android and Linux systems, offering developers flexibility to build customized applications. Equipped with robust OpenGL graphics acceleration, it delivers smooth rendering for dynamic UIs, 3D maps, and high-resolution animations, ensuring an engaging user experience in public spaces, retail, and service industries.The embedded NPU supports mixed INT8/INT16 operations. In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted.
Feature
-
Multi-Interface Display Flexibility:Supports LVDS (dual-channel, 1920x1080), EDP, MIPI, and HDMI outputs, enabling multi-screen setups for interactive dashboards, wayfinding systems, or advertising displays.
-
High-Speed Connectivity:Gigabit Ethernet (10/100/1000M) ensures stable wired networking for data-heavy applications like cloud sync or real-time databases.
-
Expansive I/O & Touch Integration:Rich GPIO, USB, and serial ports enable connectivity with touchscreens, barcode scanners, NFC readers, or printers.

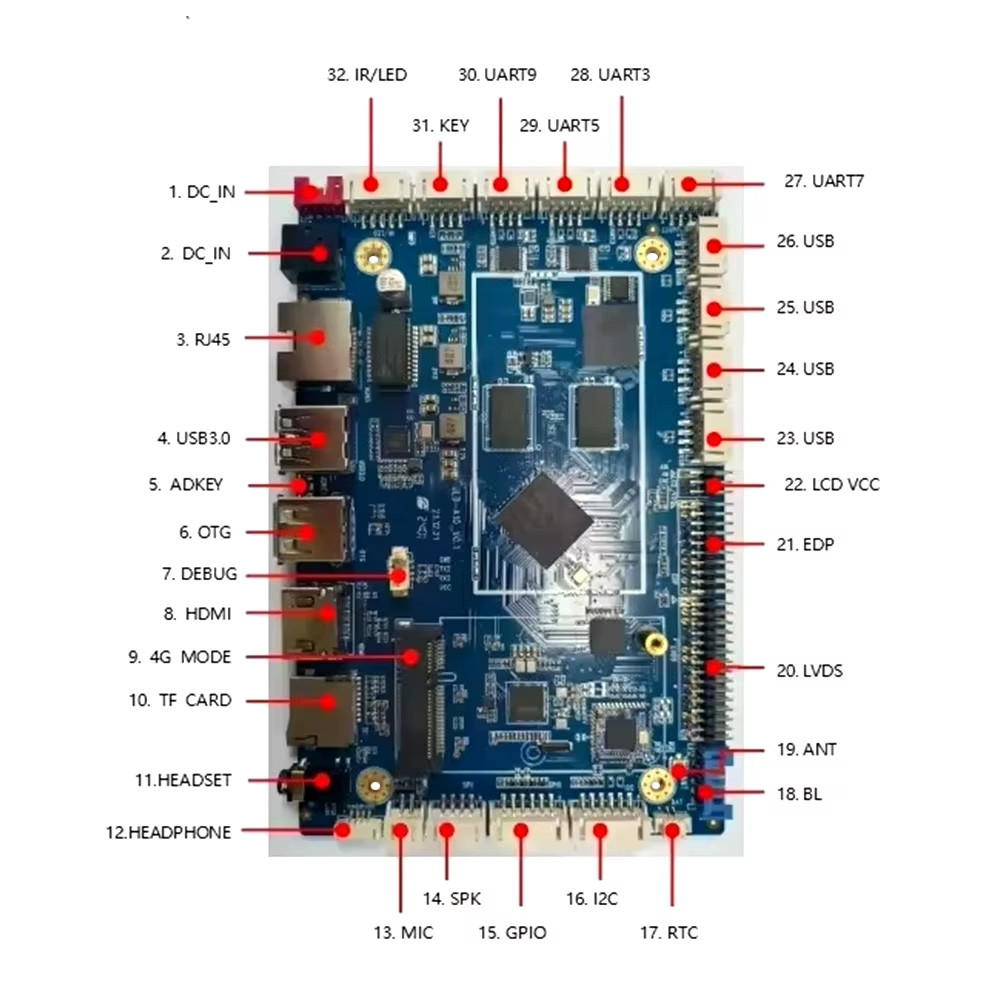

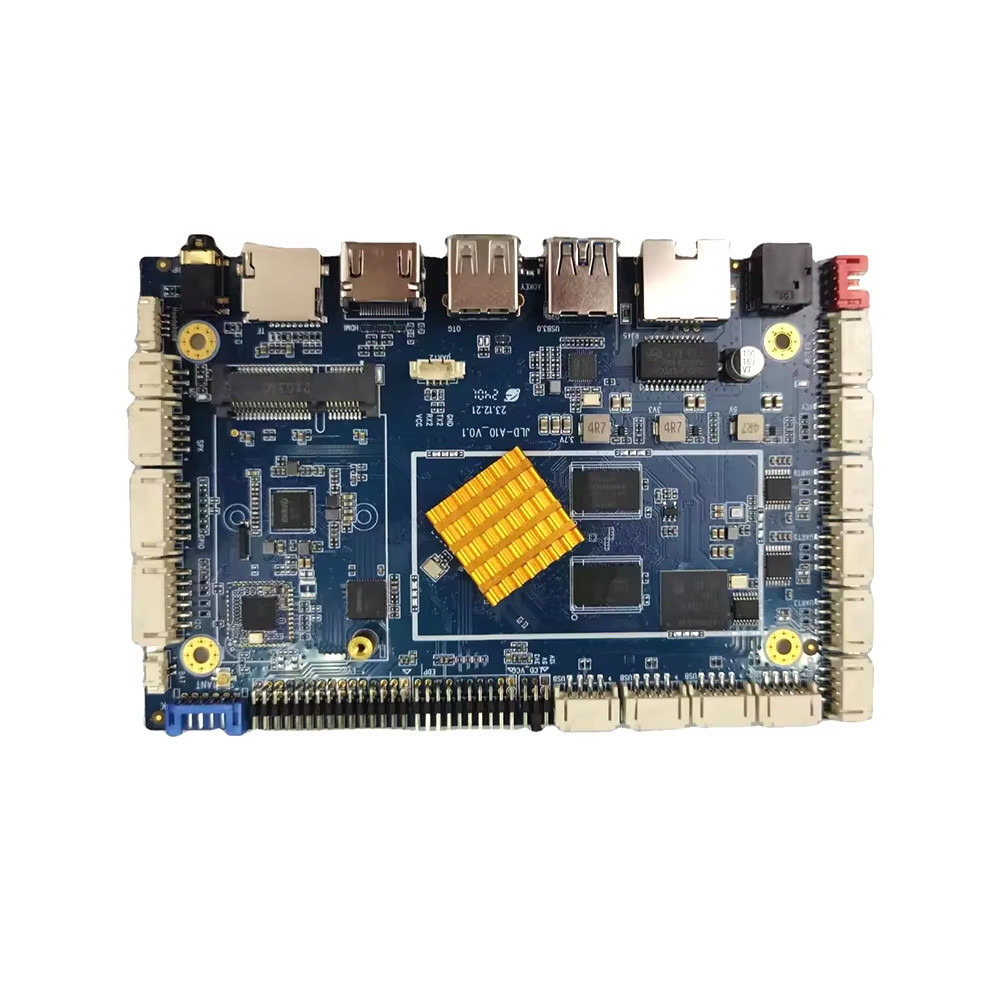

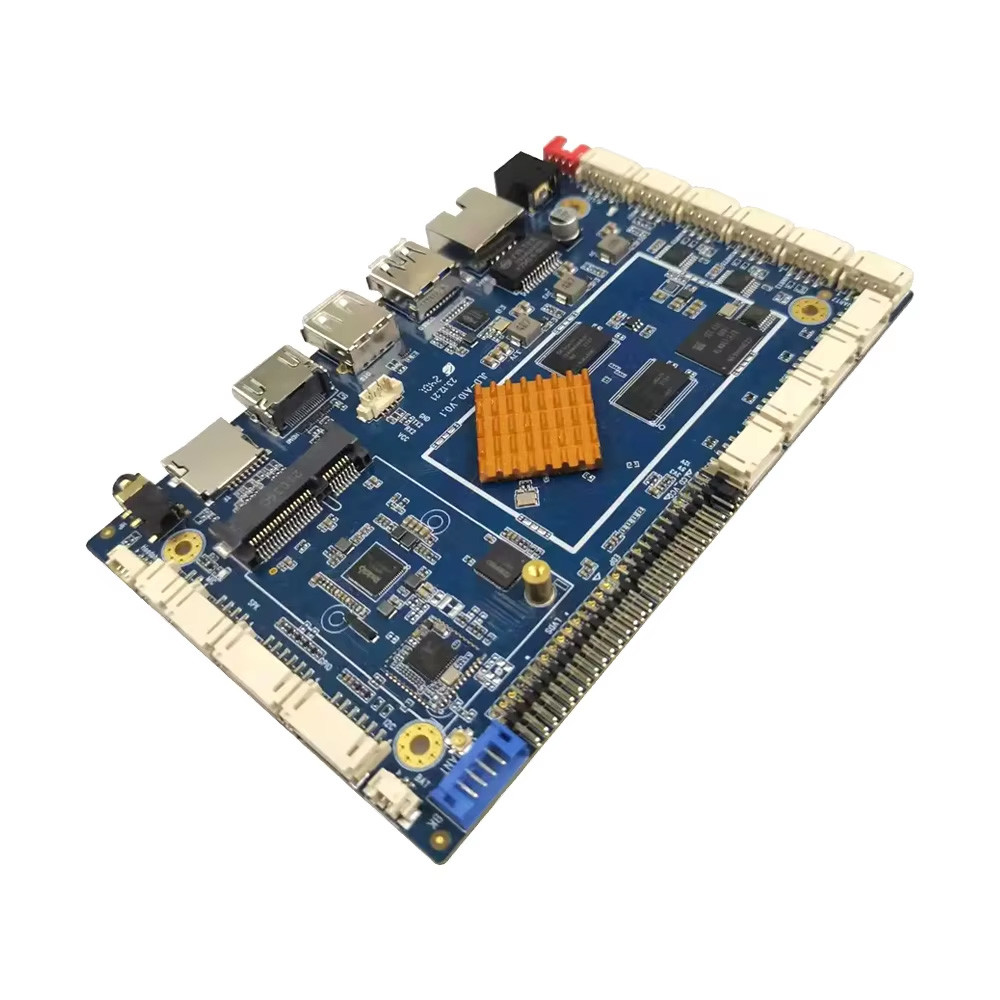

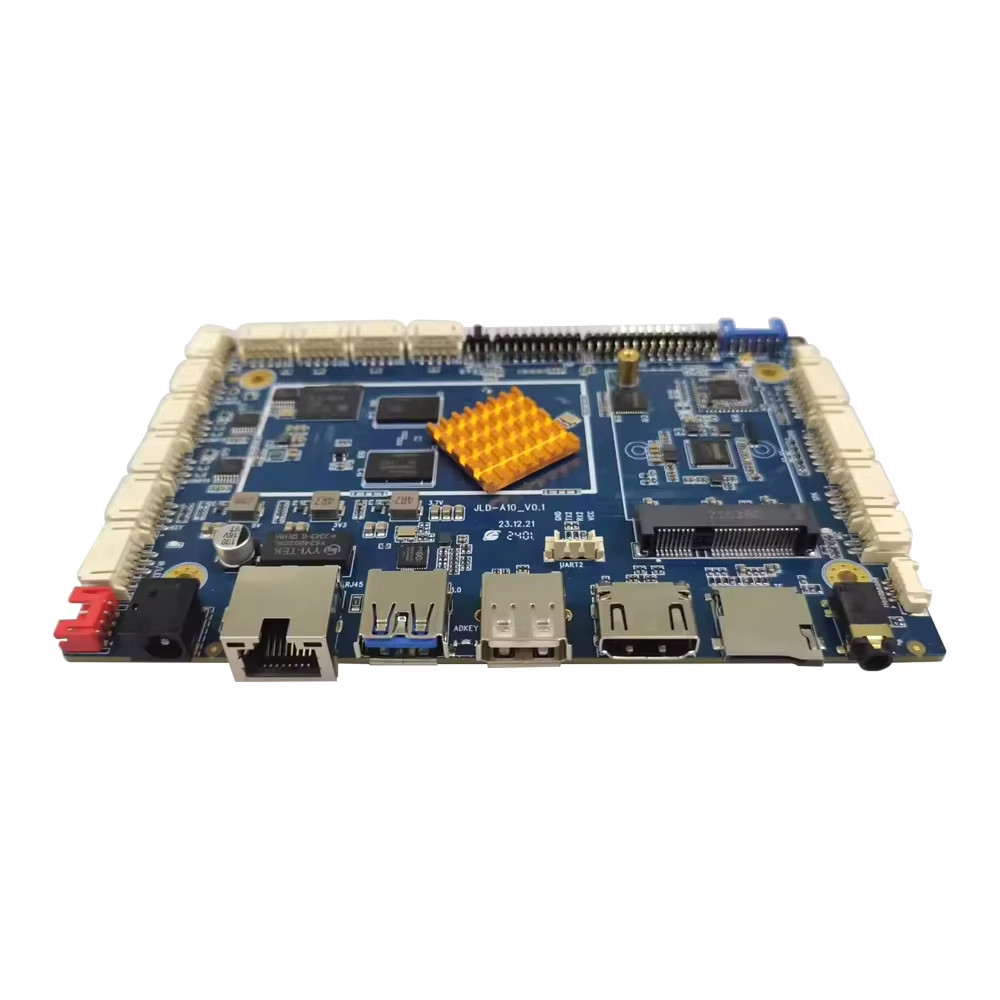

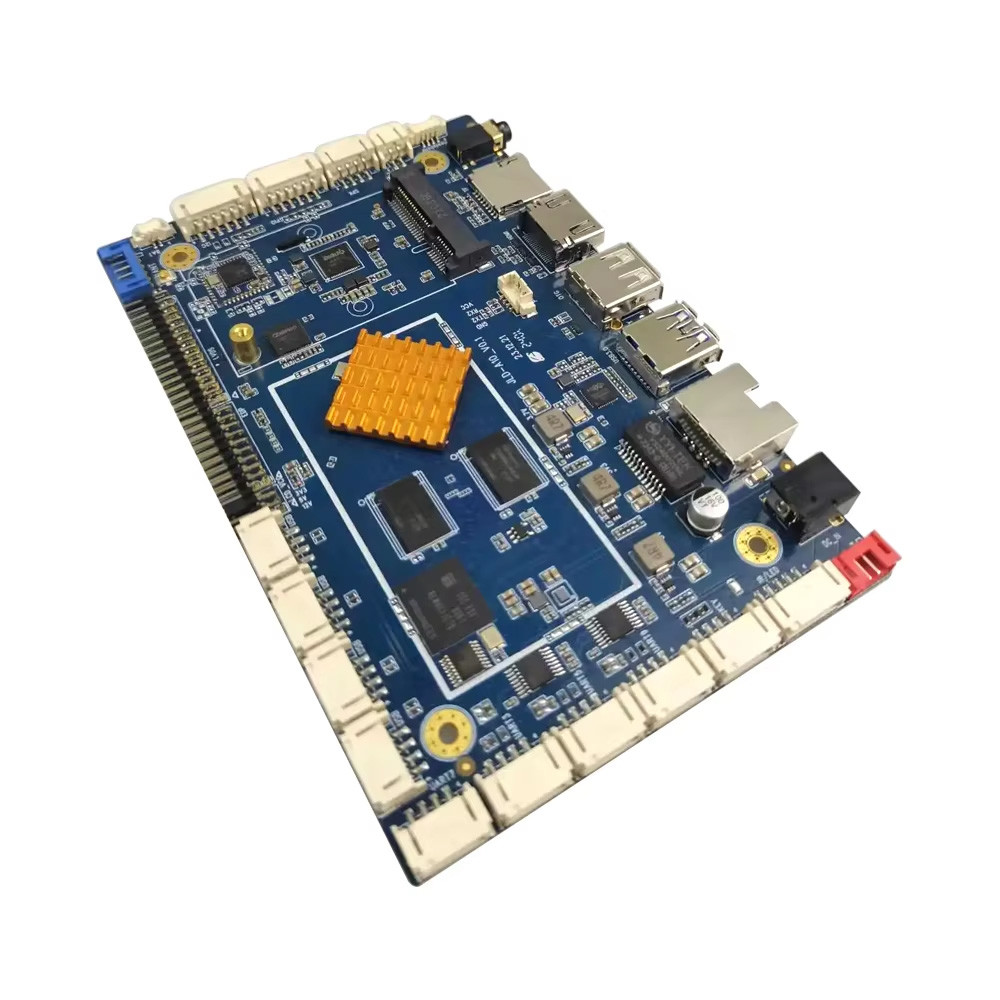

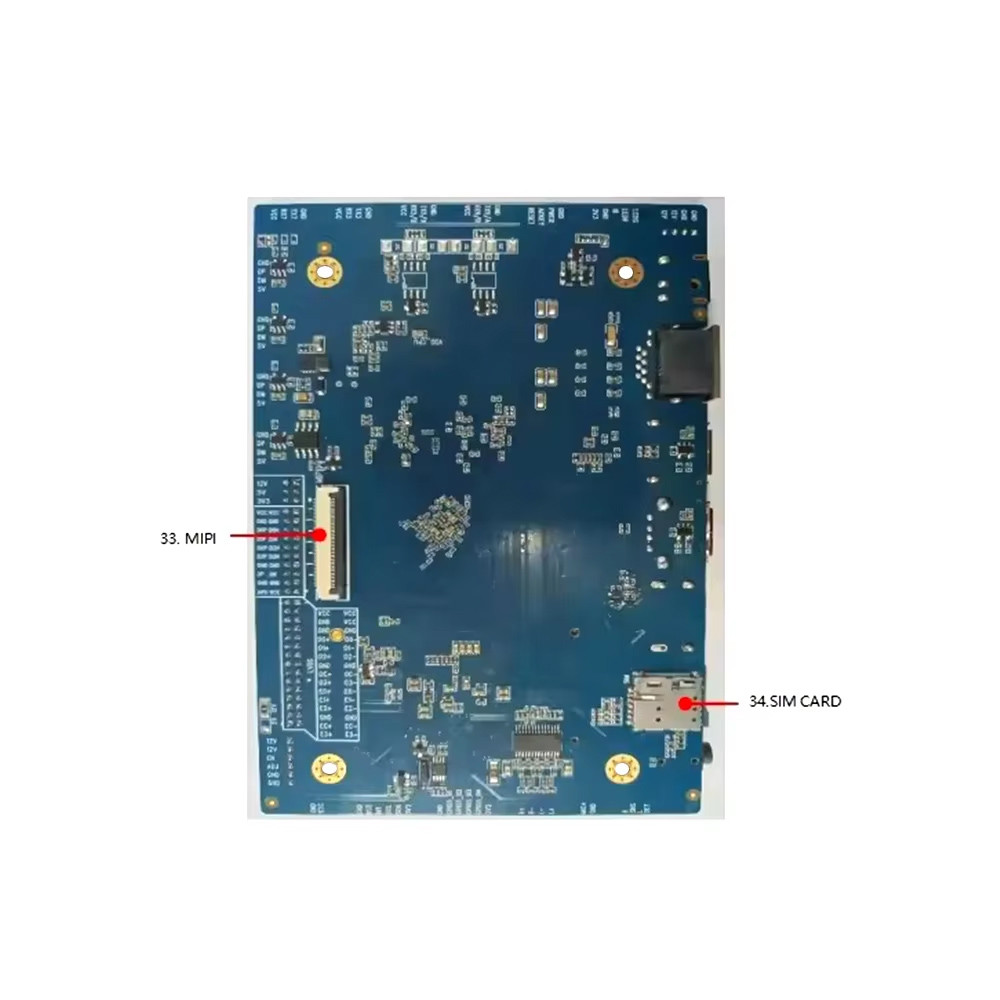

Product photos
Main parameters
| OS |
ANDROID 11/Linux Ubuntu
|
|
Memory card type
|
TF - CARD
|
|
PCB size
|
140mm*91mm*1.6mm
|
|
Memo
|
2G/4G/8G DDR4 option
|
|
NPU
|
1TOPS
|
|
Wi-Fi
|
2.4G/5G WiFi BT
|
|
serial port
|
4 in total, types option,TTL(1-4个),RS232(0-3个),RS485(0-2个)
|
|
Power supply
|
DC12V3A input
|
| TP |
I2C /USB interface TP |
|
USB interface 4G
|
TF-CARD |
|
USB Interface
|
Built-in USB 2.0 sockets (4), external USB 3.0 HOST (1), external OTG (1) Supports PCIE 4G function modules
|
|
RTC
|
Support power-off clock memory, automatic power on and off |
| Temperature |
-20°- 80℃ |

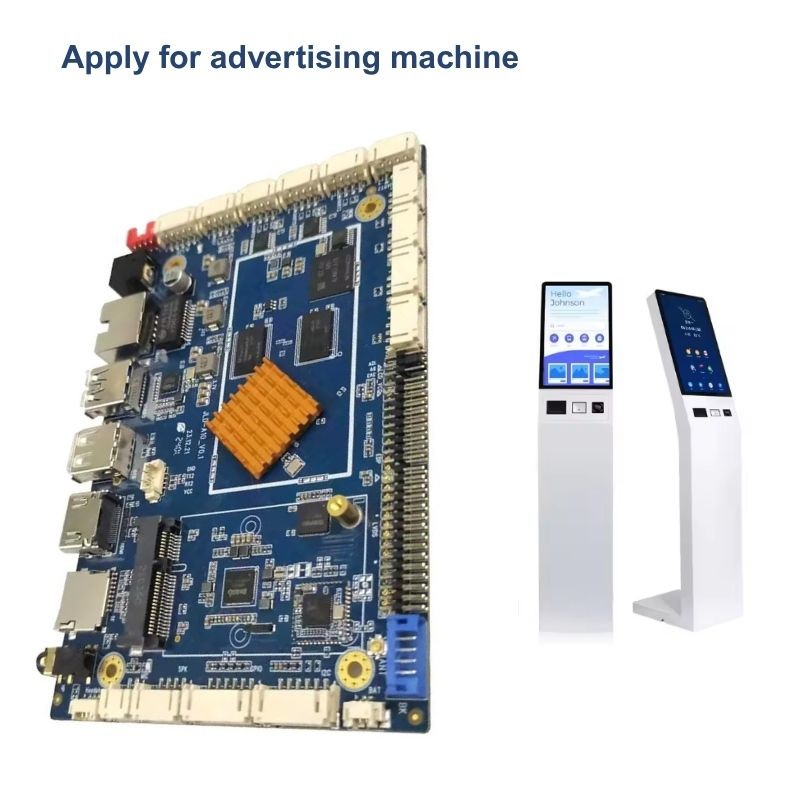

Our motherboard has a wide range of application scenarios. The application scenario of the motherboard depends on the function requirements of our customers.
Certificate
Packing
1. At Buyer's Request;
2. Inner, vacuum package;
3.Outer, standard export carton;
