Face Recognition Rockchip Android Mainboard Rk3568 With Lvds EDP MIPI HD Ethernet 4G LTE Relay JLD-F03

Face Recognition Rockchip Android Motherboard Rk3568 Mainboard With Lvds EDP MIPI HD Ethernet 4G LTE Relay JLD-F03

Product Description:

 JLD-F03 Android motherboard uses RK3568 processor, it is a high performance, low power consumption quad-core application processor chip, built in a variety of powerful embedded hardware engine, provides excellent performance for high-end applications, support almost full format H.264 4 k @ 60 fps decoding, support H. 265 4 k @ 60 fps decoding, also support H. 264 / H. 265 1080 p @ 60 fps coding, and high quality JPEG coding / decoding.

At the same time, the RK3568 has a built-in 3 D GPU, which is fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.0. A dedicated 2D hardware engine will maximize display performance and provide a smooth operating experience.

The embedded NPU supports the INT 8 / INT 16 hybrid operations. Moreover, with its strong compatibility, network models based on a series of frameworks such as TensorFlow / MXNet / PyTorch / Caffe can be easily transformed. RK3568 With a high performance memory interface (DDR 3 / DDR 3 L / DDR 4 / LPDDR3 / LPDDR4 / LPDDR4X), it can provide the required memory bandwidth required in high performance scenarios.

Display: Support LVDS, MIPI, EDP, and HDMI Display, ensuring compatibility with a wide range of display devices for seamless integration and enhanced visual experience.

Ram: Available in 2GB, 4GB, and 8GB configurations, providing ample memory for smooth multitasking and efficient operation of applications on the Android Motherboard.

Rom: Choose from 16GB, 32GB, 64GB, 128GB, or 256GB of storage capacity to store your data, applications, and multimedia content with ease on the Android Motherboard.

Features

1. Main Control Processor: RK3568 the maximum frequency is 2.0 GHZ

2. Memory: 2G / 4G / 8G DDR4 optional (public version standard 2G)

3. Flash Memory: 16G to 64G optional (male board standard with 16G)

4. Video Output: EDP (2560 * 1440), MIPI format video output

5. Audio Output: stereo sound, support Dolby sound effects

6. Network: support 10 MHZ / 100 MHZ / 1000 MHZ wired and 2.4G wireless WIFI Internet access

7. Operating System; ANDROID11, Ubuntu20.04, etc

8. PCB Size: 140mmX91mm

9. Power Supply Mode: DC12V / 3A input

10. Touch Screen: support I2C inch interface and USB interface multi-touch capacitive touch screen

11. Memory Card Type: support TF-CARD

12. USB Interface: USB 3.0 HOST / OTG

13. RTC: support power off clock memory, support automatic switch function

14. Camera: To support a USB camera

15. Adapt to the Temperature: -20 to 80 degrees Celsius

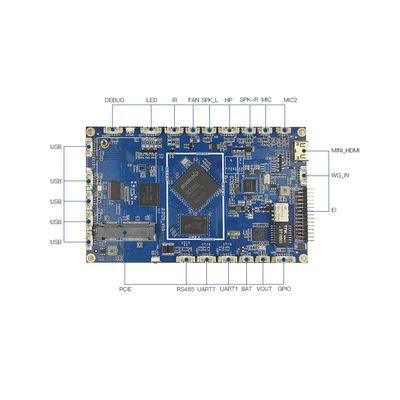

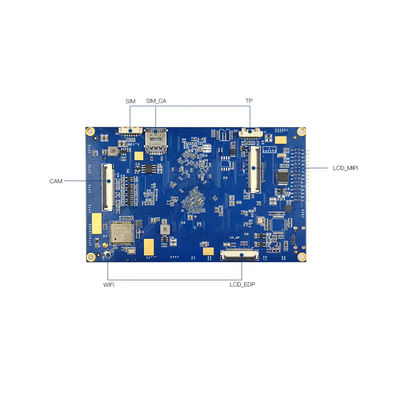

Product interface photos

Main parameters

Apply:

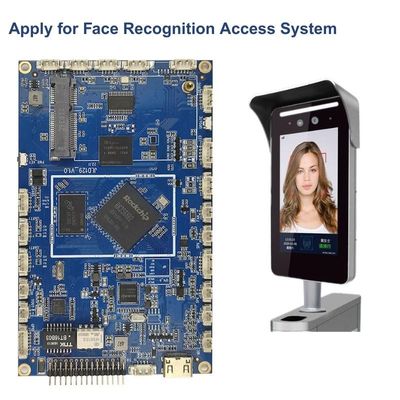

Face Recognition Access Systems, Time attendance device, door access system, etc

Product Superiority: stable performance rich interface.

1. At Buyer's Request;
2. Inner, vacuum package;
3.Outer, standard export carton;

FAQ

Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.
