Home /Products/POS Motherboard/POS Embedded System Motherboard RK3568 Embedded Board 128G Storage EMMC Option

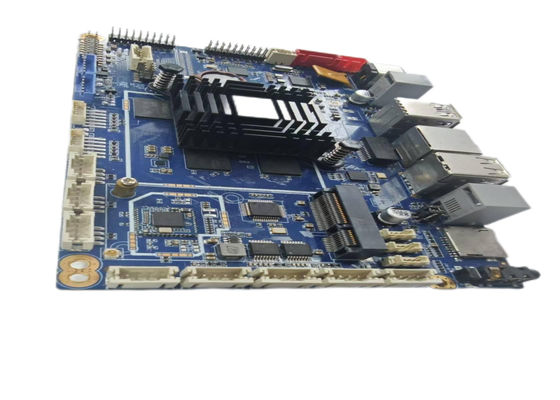

POS Embedded System Motherboard RK3568 Embedded Board 128G Storage EMMC Option

1 piece sample is supported.
MOQ
$40-$60
Price
POS Embedded System Motherboard RK3568 Embedded Board 128G Storage EMMC Option
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: POS Embedded System Motherboard
USB Interface: USB HOST/OTG
OS: ANDROID 11/Linux Ubuntu
Serial Port: Support TTL、RS232
PCB Size: 146mm*102mm*1.6mm
GPU: ARM G52 2EE Support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1
Wi-Fi: 2.4G/5G WiFi BT
Temperature: -20°- 80℃
Highlight:

RK3568 POS motherboard 128GB storage

,

POS embedded board EMMC option

,

POS system motherboard with warranty
Basic Infomation
Brand Name: JEWELLED
Model Number: JLD-P01
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: T/T
Supply Ability: 100K/month
Product Description
POS Embedded System Motherboard RK3568 Embedded Board with 128G Storage EMMC Option
Hardware Performance
  • Processor: Rockchip RK3568 chip with quad-core ARM Cortex-A55 architecture (1.8GHz/2.0GHz max frequency)
  • Memory and Storage: Supports 1/2/4GB DDR4 memory and 8/16/32GB eMMC storage options
  • Graphics Processing: Integrated Mali-G52-2EE GPU supporting OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0
Technical Parameters
Temperature Range -20°C to 80°C
SPI Supported
NPU 1TOPS
Wi-Fi 2.4G/5G WiFi BT
Processor Type RK3568 Quad-core 64-bit Cortex-A55 Processor (2.0GHz max)
Camera Support USB Camera
GPU ARM G52 2EE with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 support
Audio Output Stereo with Dolby Sound Effect support
Audio Ports 3.5mm Headphone Jack, 2P2.0 Microphone Interface, 4P2.0 Speaker Interface
RTC Power-off clock memory with automatic power on/off

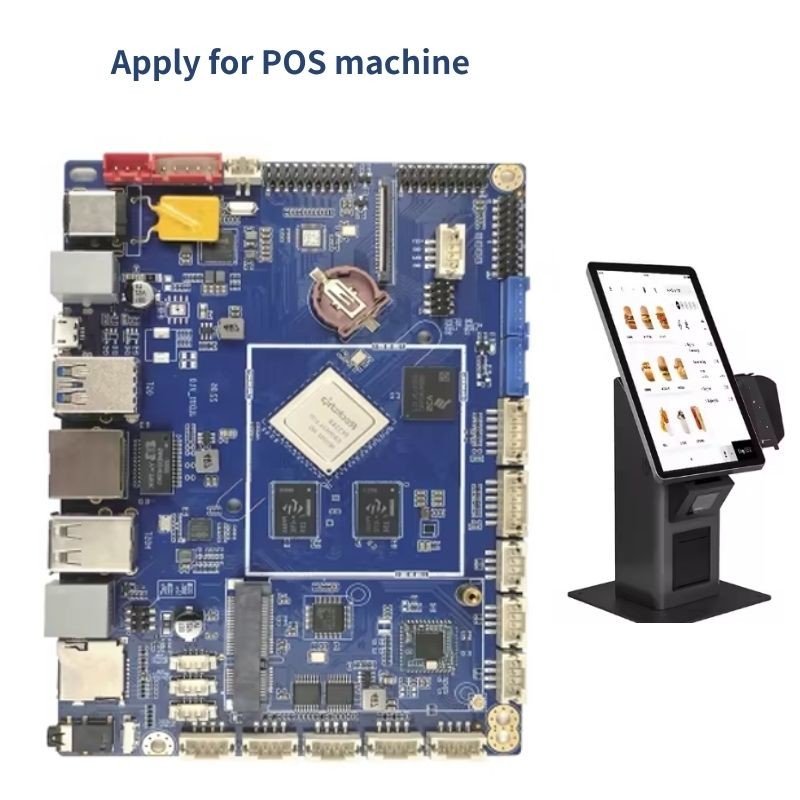

Applications
  • Electronic Scales: Accurate weighing and data processing with sensor integration for supermarkets and retail
  • POS Machines: Efficient transaction management with QR code payment, inventory management, and peripheral support
  • Self-Service Terminals: Touchscreen interfaces for ordering, ticketing, and payment processing
POS Embedded System Motherboard RK3568 Embedded Board 128G Storage EMMC Option 0
Customization Options
Brand Name
JEWELLED
Model Number
JLD-P01
Origin
China
MOQ
1pc
Price Range
US$50-90
PCB Size
146mm × 102mm × 1.6mm
Wi-Fi
2.4G/5G WiFi BT
Temperature Range
-20°C to 80°C
Support and Services
  • Hardware and software troubleshooting assistance
  • Installation and setup guidance
  • Firmware updates and compatibility information
  • Warranty coverage and repair services
  • Online resources including FAQs, manuals, and drivers
Packaging and Shipping

Each motherboard is securely packaged in bubble wrap within a sturdy cardboard box. Orders are processed within 24 hours and shipped via reliable carriers.

Frequently Asked Questions
What is the brand name of the POS Motherboard?
The brand name is JEWELLED.
What is the model number of the POS Motherboard?
The model number is JLD-P01.
Where is the POS Motherboard manufactured?
It is manufactured in China.
What are the packaging details?
Each unit comes in a bubble bag, with proper quantity in a carton.
What is the delivery time for samples?
Sample delivery takes 3-5 working days.
