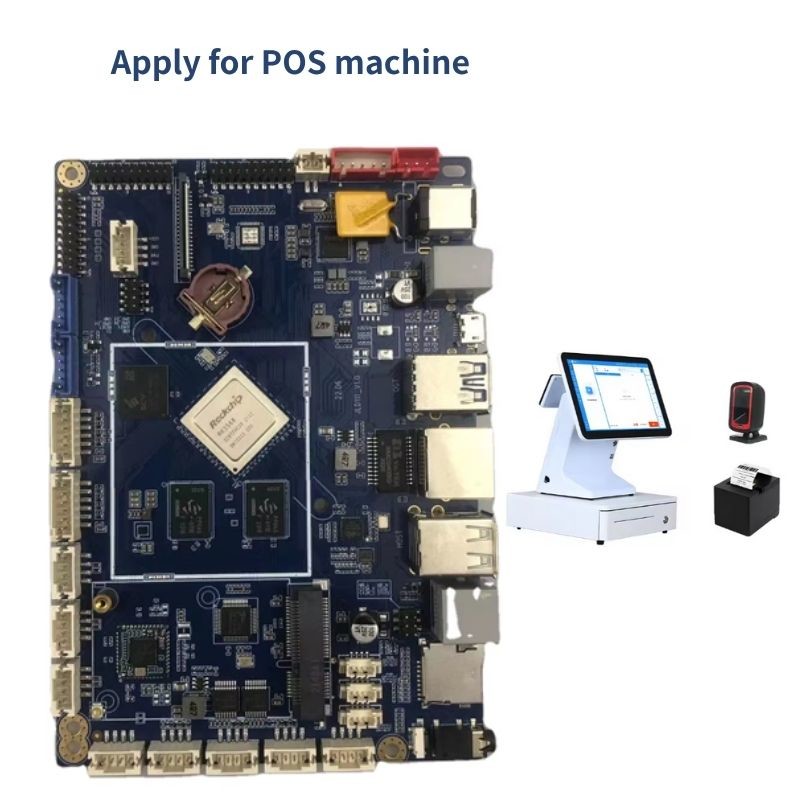

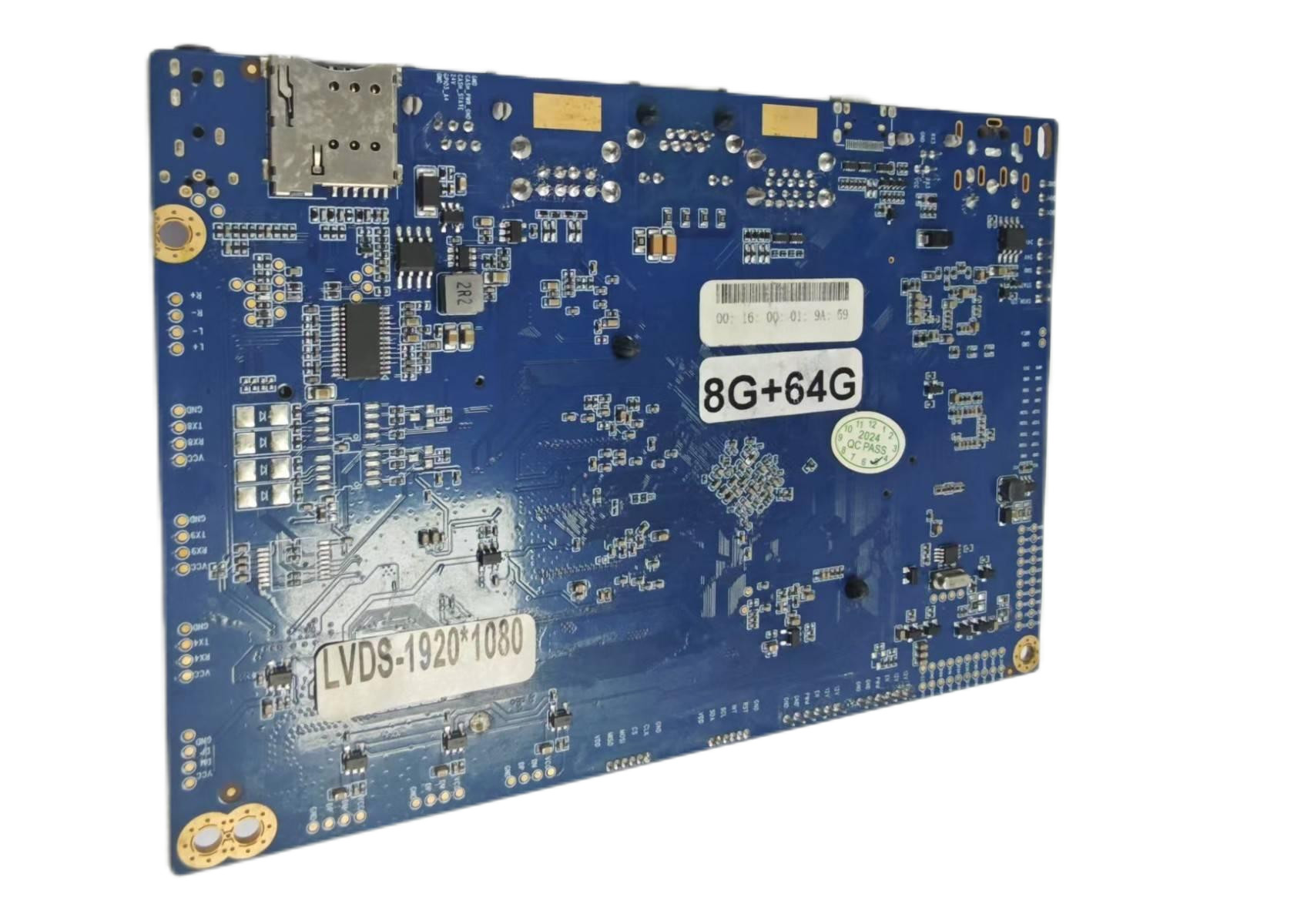

Android POS Motherboard RK3568 Embedded Board With Various Interfaces

1 piece sample is supported.
MOQ
$40-$60
Price
Android POS Motherboard RK3568 Embedded Board With Various Interfaces
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: POS Motherboard RK3568
USB Interface: USB HOST/OTG
OS: ANDROID 11/Linux Ubuntu
Serial Port: Support TTL、RS232
PCB Size: 146mm*102mm*1.6mm
GPU: ARM G52 2EE Support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1
Wi-Fi: 2.4G/5G WiFi BT
Temperature: -20°- 80℃
Highlight:

RK3568 POS motherboard with interfaces

,

Android POS motherboard embedded board

,

POS motherboard with multiple interfaces
Basic Infomation
Brand Name: JEWELLED
Model Number: JLD-P01
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: T/T
Supply Ability: 100K/month
Product Description
Android POS Motherboard RK3568 Embedded Board With Various Interfaces
Hardware Performance
  • Processor: Rockchip RK3568 chip with quad-core ARM Cortex-A55 architecture, main frequency up to 1.8GHz/2.0GHz
  • Memory and Storage: Supports 1/2/4GB DDR4 memory and 8/16/32GB eMMC storage for various application needs
  • Graphics processing: Integrated Mali-G52-2EE GPU supporting OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 for smooth graphics processing
Technical Parameters
CPU RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz
NPU 1T computing power, supports 4K 60fps H.265/H.264/VP9 video decoding
Memory 2G/4G/8G DDR4 option
EMMC EMMC16G/32G/64G/128G option
Camera USB Camera
PCB Size 125mm*90mm
Audio Output Stereo, supports Dolby Sound Effect
Audio Port 3.5mm Headphone Jack, 2P2.0 Microphone Interface, 4P2.0 Speaker Interface
RTC Supports power-off clock memory, automatic power on/off
Applications
Electronic scale: Multi-interface extension using USB and RS485 to connect displays and printers for synchronized weight/amount display and receipt printing
POS machine: Data synchronization and security through Ethernet or 4G/5G modules with encryption chip support for payment security
Self-service terminal: Multi-screen display support via HDMI and MIPI interfaces for ad rotation and split-screen operation
The JLD-P01 embedded board delivers high-performance processing, rich interfaces, and Android system compatibility, meeting real-time data processing, peripheral expansion, and system stability requirements for commercial intelligent solutions.
Packing and Shipping
Product Packaging: Each motherboard is carefully packaged in sturdy cardboard with protective bubble wrap to prevent transportation damage.
Shipping: Orders processed within 24 hours using trusted carriers for fast, secure delivery.
FAQ
Q: What is the brand name of the POS Motherboard?
A: The brand name is JEWELLED.
Q: What is the model number of the POS Motherboard?
A: The model number is JLD-P01.
Q: Where is the POS Motherboard manufactured?
A: Manufactured in China.
Q: What are the packaging details?
A: Packaged in 1pc/bubble bag with proper quantity in carton.
Q: What is the delivery time?
A: 3-5 working days for sample orders.
