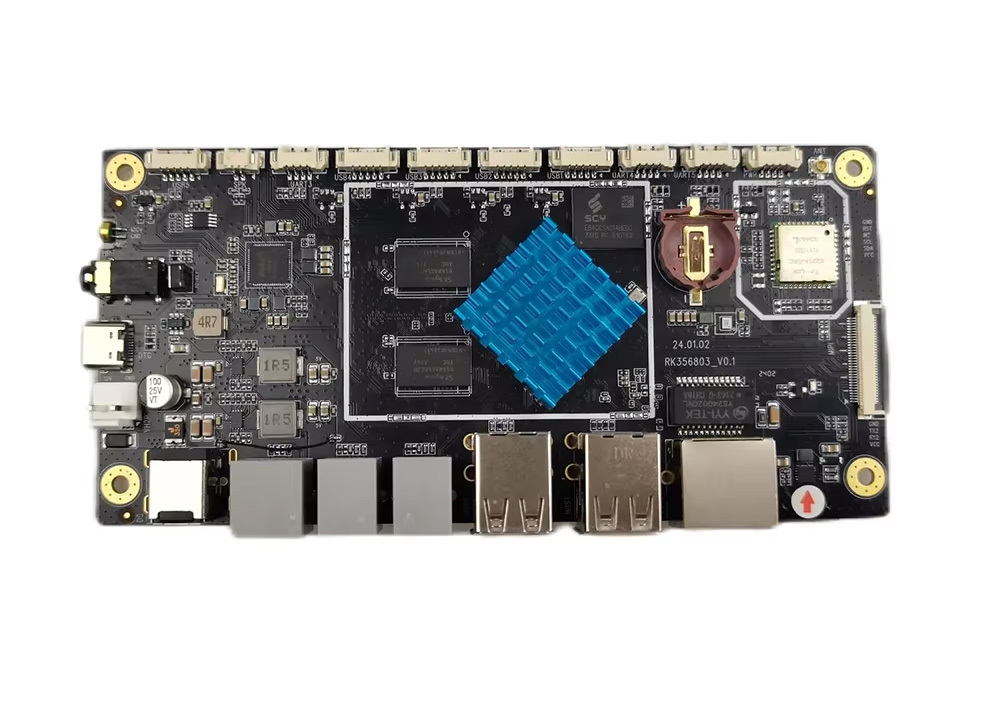

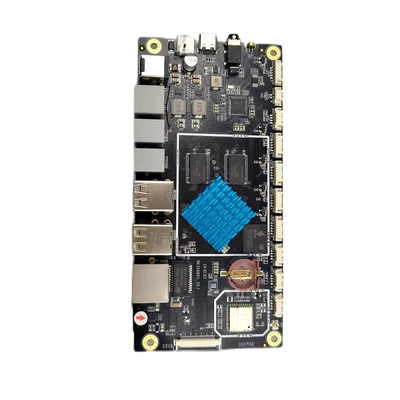

RK3568 Motherboard Support MIPI Display DC12V3A Input Embedded Main Board JLD-P08
Description of Embedded Main Board JLD-P08
The P08 motherboard is a core hardware solution designed specifically for commercial POS machines and touch screen POS machines. With high adaptability and stable performance, it has become an ideal choice for offline transaction scenarios such as retail, catering, and supermarkets, providing strong computing power support for intelligent cash register terminals.
The P08 motherboard is equipped with an RK3568 quad core Cortex-A55 64 bit processor, with a maximum clock speed of up to 2.0GHz. This processor adopts an advanced architecture that balances efficient computation and low power consumption. It can smoothly handle multitasking operations such as daily order entry, payment settlement, and data statistics for POS machines, avoiding peak hour lag and reducing energy consumption and heat dissipation pressure during device operation.
The motherboard integrates an ARM G52 2EE graphics processor and fully supports various graphics interface standards such as OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1. This configuration ensures smoother interface rendering for touch screen POS machines, which can clearly display product images, dynamic payment instructions, and other content.
The P08 motherboard is equipped with an NPU (Neural Network Processing Unit) with 1TOPS computing power, which introduces intelligent functions and expands the space for POS machines. With the help of NPU, terminals can realize basic AI applications such as member facial recognition login, rapid recognition and filing of product images, etc., helping merchants simplify operation processes and improve service efficiency.
Technical Parameters of Embedded Main Board JLD-P08
| Specification |
Details |
| Memory |
2G/4G/8G DDR4 For Option |
| Wireless |
2.4G/5G WiFi BT |
| Audio output |
3.5mm Headphone Interface, MIC, 2P1.25 Speaker Interface |
| PCB size |
146mm*70mm*1.6mm |
| Touch panel |
I2C And USB Port Touch Panel |
| Memory card |
TF-CARD |
| Temperature |
-20° To 80℃ |
| Embedded |
Yes |
| Power supply |
DC12V3A Input (Printer Not Included) |
| OS |
Android 11/ Ubuntu 20.04 |
Applications of Embedded Main Board JLD-P08
JEWELLED Android Embedded Board, model number JLD-P08, is a versatile and reliable device that can be utilized in a variety of product application occasions and scenarios. This product offers a wide range of features suitable for different industries and purposes.
- Edge AI Embedded System projects
- Industrial Smart Scale Board
- Smart manufacturing processes
- Innovative AI solutions
Common applications include:
- For POS machine
- For electronic scale
- For self-service terminal
Packing and Shipping
Product Name: Android Embedded Board
Description: High-performance embedded board running Android OS
Package Contents:
- Android Embedded Board
- Power Adapter
- User Manual
Shipping Information:
- Shipping Method: Standard Shipping
- Estimated Delivery Time: 5-7 business days
Customer Review
FAQ
Q: What is the brand name of the Android Embedded Board?
A: The brand name is JEWELLED.
Q: What is the model number of the Android Embedded Board?
A: The model number is JLD-P08.
Q: Where is the Android Embedded Board manufactured?
A: The Android Embedded Board is manufactured in China.
Q: What is the certification of the Android Embedded Board?
A: The Android Embedded Board is CE certified.
Q: What are the payment terms for purchasing the Android Embedded Board?
A: The payment terms are T/T.
