Rockchip RK3568 Board Motherboard Self-service Kiosk Machine Embedded Mainboard

1 piece sample is supported.
MOQ
$40-$60
Price
Rockchip RK3568 Board Motherboard Self-service Kiosk Machine Embedded Mainboard
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Rockchip RK3568 Board Motherboard
OS: ANDROID
RTC: Support Power-off Clock Memory， Automatic Power On And Off
Temperature: -20°-80℃
Power Supply: DC12V3A Input
TP: I2C /USB Interface TP
Audio Output: Stereo, Support Dolby Sound Effect
PCB Size: 100mm*80mm
Highlight:

Rockchip RK3568 POS motherboard

,

self-service kiosk embedded mainboard

,

RK3568 board with warranty
Basic Infomation
Brand Name: JEWELLED
Model Number: JLD-P06
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: T/T
Supply Ability: 100K/month
Product Description
Rockchip RK3568 Board Motherboard Self-service Kiosk Machine Embedded Mainboard
This commercial-grade motherboard is designed for POS machines and touch screen devices, featuring a Rockchip RK3288 quad-core ARM Cortex-A17 processor (1.8GHz max frequency) and ARM Mali-T764 GPU. The board integrates high-definition video processing with advanced security technology, supporting 4K H.265 hard decoding at 10-bit color depth (up to 3840×2160 resolution). With excellent web compatibility for major portals and video sites, it offers complete APK support and openness for diverse applications.

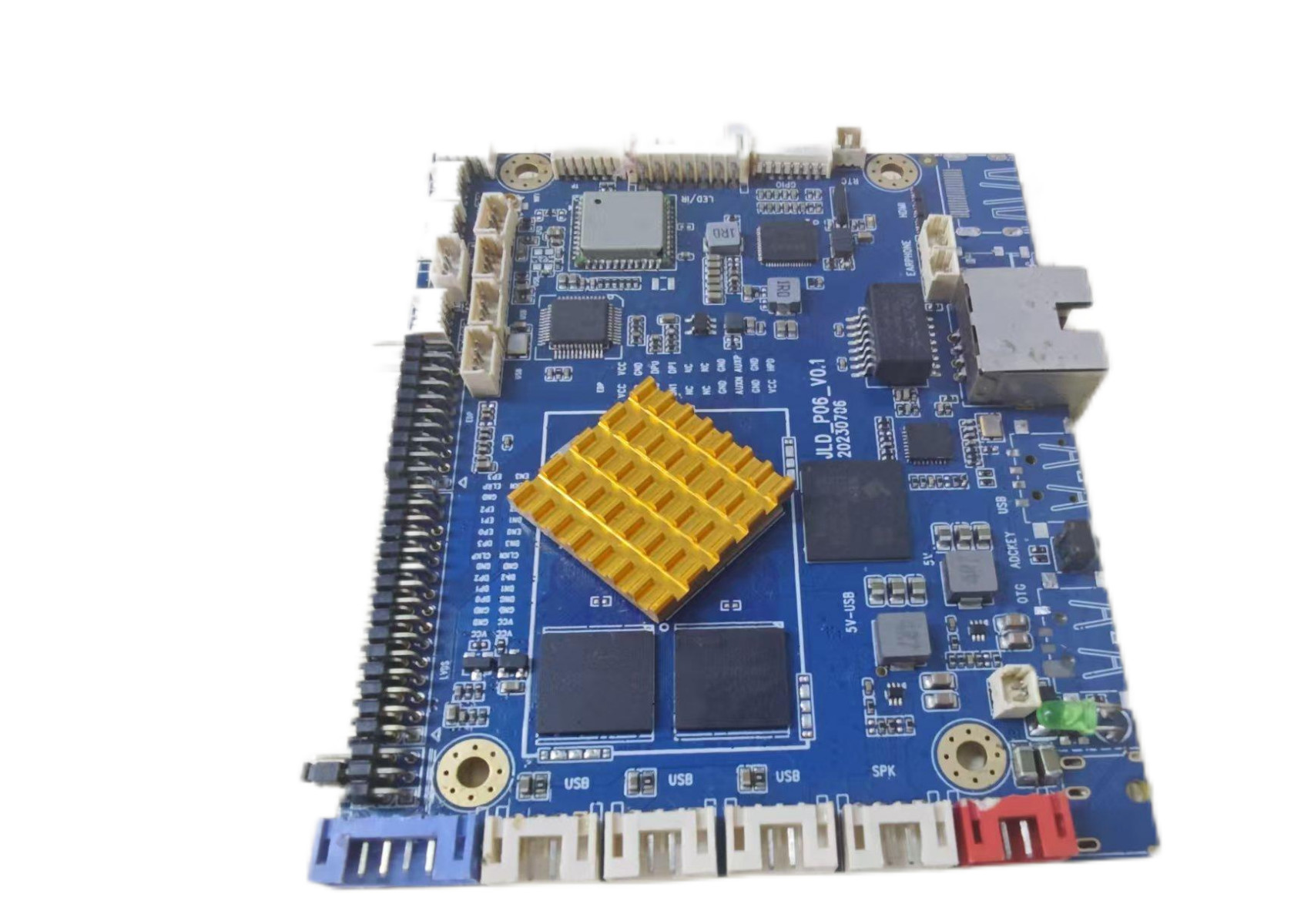

Rockchip RK3568 Board Motherboard Self-service Kiosk Machine Embedded Mainboard 0
Key Features
  • Product Name: POS Motherboard
  • PCB Size: 100mm × 80mm compact design
  • Memory Options: 2G/4G LPDDR3 configurations
  • Power Supply: DC12V3A input
  • Dual-Band Connectivity: 2.4G/5G WiFi with Bluetooth
  • Touch Panel Support: I2C/USB interface compatibility
Technical Specifications
Processor Rockchip RK3288 Quad-Core Cortex-A17 (1.8GHz)
GPU ARM Mali-T764 with AFBC memory compression
Video Decoding 4K H.265 @ 10-bit color depth
Display Output Up to 3840×2160 resolution
Operating Temperature Industrial-grade temperature range
Applications
The RK3288 processor efficiently handles transaction processing, product recognition, and multi-tasking operations. The Mali-T764 GPU ensures smooth 1080P display output with 0.5s touch response, supporting dual-screen configurations. Designed for 24/7 operation with low power consumption, it passes rigorous temperature testing for reliability.
POS Machine Implementation
Widely deployed in retail and food service environments, this motherboard connects peripherals like cash drawers, barcode scanners, and receipt printers through USB and RS232 interfaces. Supports aggregated payment methods including card reading and scanning, with dual-screen capability for simultaneous transaction and promotional displays.
Self-Service Payment Systems
Proven in supermarket installations across Shenzhen and Wuhan, the board integrates with barcode scanning, RFID recognition, and weight comparison modules. Supports facial recognition payments and multiple network options (WiFi/4G) for real-time data transmission, significantly reducing labor costs.
Product Documentation

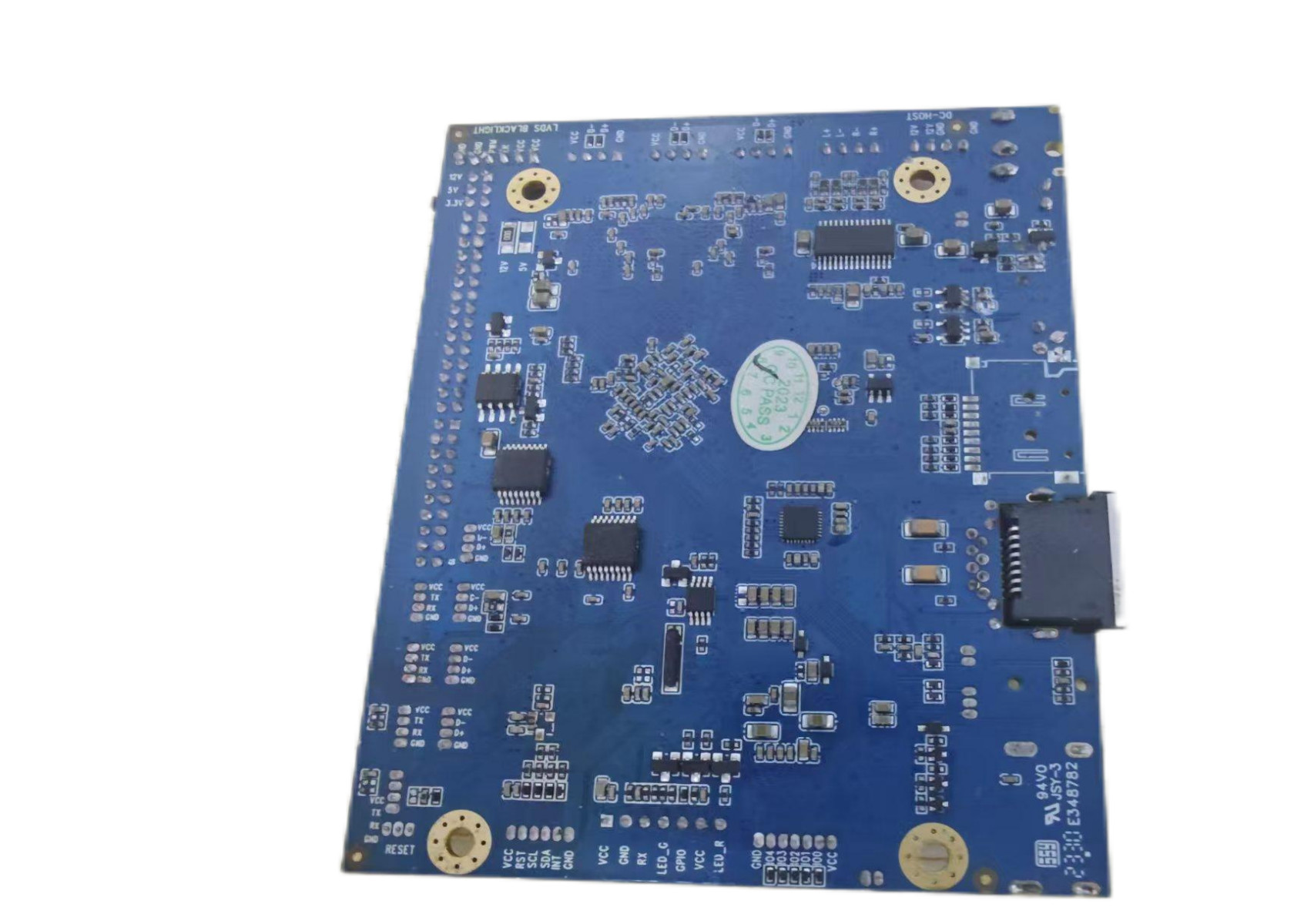

Rockchip RK3568 Board Motherboard Self-service Kiosk Machine Embedded Mainboard 1
Technical Diagram
Rockchip RK3568 Board Motherboard Self-service Kiosk Machine Embedded Mainboard 2
Dimensional Specifications
Rockchip RK3568 Board Motherboard Self-service Kiosk Machine Embedded Mainboard 3
Customer Installation Example
Frequently Asked Questions
Q: What is the brand name of the POS Motherboard product?
A: The brand name is JEWELLED.
Q: What is the model number of the POS Motherboard product?
A: The model number is JLD-P06.
Q: Where is the POS Motherboard product manufactured?
A: The product is manufactured in China.
Q: What is the minimum order quantity for the POS Motherboard product?
A: The minimum order quantity is 1pc.
Q: What are the payment terms for purchasing the POS Motherboard product?
A: The payment terms are T/T.
