Embedded ARM Board Support For 1000 MHZ Ethernet Support 4 K 60fps H.265/H.264/VP9 Video Decoding for POS Machine

1 piece sample is supported.
MOQ
$40-$60
Price
Embedded ARM Board Support For 1000 MHZ Ethernet Support 4 K 60fps H.265/H.264/VP9 Video Decoding for POS Machine
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Model: Embedded ARM Board For KIOSK POS Machine
Serial Port: Support TTL、RS232
Ethernet: Support For 1000 MHZ
USB Interface: USB HOST/OTG
PCB Size: 146mm*102mm*1.6mm
OS: Android 11/ Ubuntu 20.04/Debian 10
AI: 1TOPS
Applied Field: POS System, Payment Kiosk, Vending Machine, Coffee Machine Etc
Highlight:

Embedded ARM Board with Ethernet support

,

ARM Board for 4K video decoding

,

POS Machine ARM Board H.265
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-P01
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: TT /Paypal
Supply Ability: 100K/month
Product Description
Embedded ARM Board for KIOSK POS Machine
This embedded ARM development board features the Rockchip RK3568 Quad-core 64-bit Cortex-A55 processor, delivering exceptional performance for point-of-sale and self-service terminal applications. The ARM G52 2EE graphics processor provides efficient graphics rendering capabilities, smoothly driving high-definition touch screens to present clear interactive interfaces and dynamic content. The integrated NPU with 1T computing power supports intelligent applications including payment recognition and face recognition, enabling advanced functionality for modern retail and service environments.

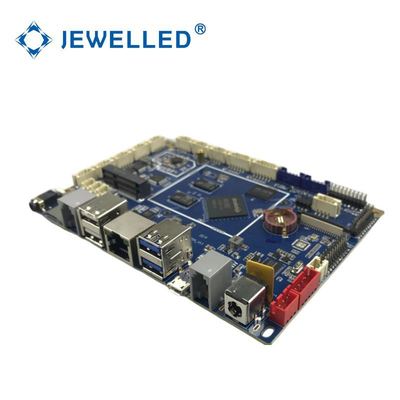

Embedded ARM Board Support For 1000 MHZ Ethernet Support 4 K 60fps H.265/H.264/VP9 Video Decoding for POS Machine 0
Embedded ARM Motherboard with Rockchip processor
Core Advantages
Powerful Performance
  • RK3566 quad-core Cortex-A55 architecture processor, 1.8GHz main frequency
  • Supports AI acceleration (1T NPU) for efficient multi-tasking
  • 2GB/4GB/8GB LPDDR4 memory + 32GB/64GB/128GB eMMC storage (expandable)
  • Native Android 11 system with OTA upgrade support
Rich Interfaces
  • Multi-screen display: HDMI, LVDS/MIPI interfaces
  • 8x USB 2.0, 3x UART serial port, GPIO, I2C, SPI interfaces
  • Dedicated cash box interface for POS machines
  • Gigabit Ethernet, dual-band Wi-Fi 5, Bluetooth 5.0, optional 4G module
Industrial-Grade Reliability
  • Operating temperature range: -20℃~70℃
  • Supports DC 12V/5V power supply with protection
  • Compact onboard size with customizable design
Application Scenarios
  • Smart POS cash registers with multiple payment methods
  • Supermarket self-service checkout terminals
  • Catering self-service ordering machines
  • Logistics handheld terminals and government self-service machines
Embedded ARM Board Support For 1000 MHZ Ethernet Support 4 K 60fps H.265/H.264/VP9 Video Decoding for POS Machine 1
Self-service terminal application
Technical Specifications
CPURK3568 quad-core 2.0GHZ
GPUMali-G52
NPU1T TOPS
OSAndroid 11/Linux/Ubuntu/Debian
MemoryDDR4 2GB/4GB/8GB
EMMC16GB/32GB/64GB/128GB
Display InterfaceLVDS, EDP, MIPI, HDMI
Serial Port5 (RS232 and TTL optional) 1 TTL
Cash Drawer InterfaceRJ11 6P6C
Key Features
  • Support LVDS, MIPI, EDP, HDMI interface display and I2C touch panel
  • Rich interfaces: USB, COM port, RJ11, Cash drawer interface, Mini PCIE
  • Network: Gigabit Ethernet, Wireless WiFi 2.4G & 5G, Bluetooth
  • Strong anti-electromagnetic interference and compatibility
  • Compatible with major POS application software
Product Interface Photos

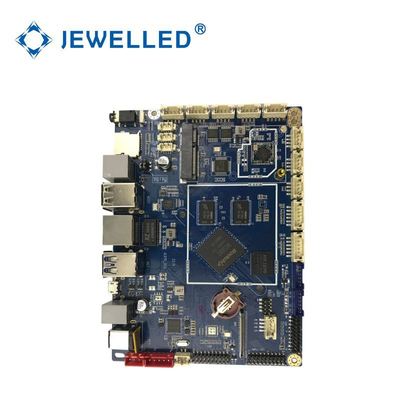

Embedded ARM Board Support For 1000 MHZ Ethernet Support 4 K 60fps H.265/H.264/VP9 Video Decoding for POS Machine 2
Motherboard interface front view

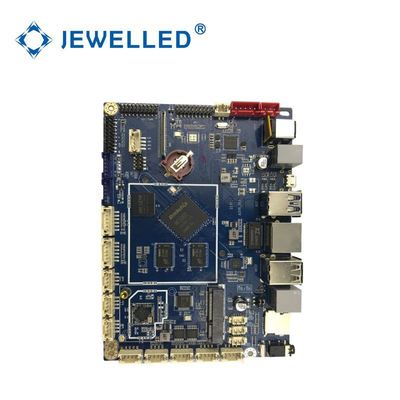

Embedded ARM Board Support For 1000 MHZ Ethernet Support 4 K 60fps H.265/H.264/VP9 Video Decoding for POS Machine 3
Motherboard interface rear view
Detailed Hardware Parameters
  • CPU: RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz
  • GPU: ARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
  • NPU: 1TOPS
  • Memory: 2G/4G/8G DDR4 optional
  • EMMC: 16G-128G optional
  • Display: Support LVDS, EDP, MIPI, HDMI
  • Audio: Stereo, support Dolby sound effect
  • Ethernet: 10/100/1000M
  • Wi-Fi: 2.4G/5G WiFi BT
  • OS: Android 11/Ubuntu 20.04/Debian 10
  • PCB Size: 146mm*102mm*1.6mm
  • Power Supply: DC12V-24V input
  • Temperature: -20°-80℃
Service and Support
  • Flexible customization: Hardware interface adjustment, system cutting, LOGO customization
  • Development support: Open SDK and technical documents
  • Quality assurance: 1 year warranty and lifetime technical support
Packing
  • At Buyer's Request
  • Inner vacuum package
  • Outer standard export carton
