Embedded ARM Board Support For EDP MIPI Dual Screen Display RK3568 Embedded Board For Self-Service Terminal

1 piece sample is supported.
MOQ
$40-$60
Price
Embedded ARM Board Support For EDP MIPI Dual Screen Display RK3568 Embedded Board For Self-Service Terminal
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Name: Embedded ARM Board For Self-Service Terminal
USB Interface: USB HOST/OTG
Ethernet: Support For 1000 MHZ
Layer: 4
PCB Size: 146mm*102mm*1.6mm
OS: Android 11/ Ubuntu 20.04/Debian 10
NPU: Support 1T Computing Power
Applied Field: POS System, Payment Kiosk, Vending Machine, Coffee Machine Etc
Highlight:

RK3568 embedded ARM board

,

dual screen EDP MIPI board

,

self-service terminal ARM board
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-P01
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: TT /Paypal
Supply Ability: 100K/month
Product Description
RK3568 Embedded ARM Board with Dual Screen Display
This embedded ARM motherboard features the Rockchip RK3568 core processor, offering dual screen display capabilities and flexible interfaces for embedded applications in intelligent terminals, automotive systems, and self-service terminals. The quad-core 64-bit Cortex-A55 processor operates at up to 2.0GHz, delivering robust performance for multitasking, data processing, and lightweight image analysis.

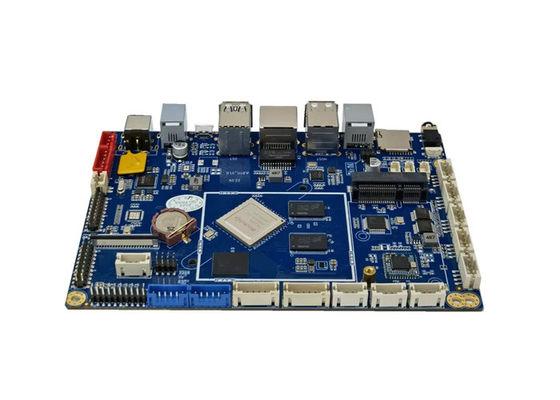

Embedded ARM Board Support For EDP MIPI Dual Screen Display RK3568 Embedded Board For Self-Service Terminal 0
Core Advantages
Powerful Performance
  • RK3568 quad-core Cortex-A55 processor, 2.0GHz maximum frequency
  • AI acceleration with 1T NPU for efficient multi-tasking
  • 2GB/4GB/8GB LPDDR4 memory options
  • 16GB-128GB eMMC storage with expansion capability
  • Native Android 11 system with OTA upgrade support
Rich Interface Options
  • Multi-screen display: Dual EDP, Dual MIPI, HDMI, LVDS interfaces
  • 8x USB 2.0 ports, 5x UART serial ports
  • GPIO, I2C, SPI interfaces for peripheral connectivity
  • Dedicated RJ11 cash drawer interface for POS applications
  • Gigabit Ethernet, dual-band Wi-Fi 5, Bluetooth 5.0
  • Optional 4G module support
Industrial-Grade Reliability
  • Operating temperature range: -20℃ to 70℃
  • DC 12V-24V power input with protection circuitry
  • Compact 146mm × 102mm × 1.6mm PCB design
  • Customizable hardware and software configurations
Application Scenarios
  • Smart POS cash registers with multiple payment methods
  • Supermarket self-service checkout terminals
  • Catering self-service ordering systems
  • Logistics handheld terminals
  • Government and public self-service machines
  • Automotive infotainment systems

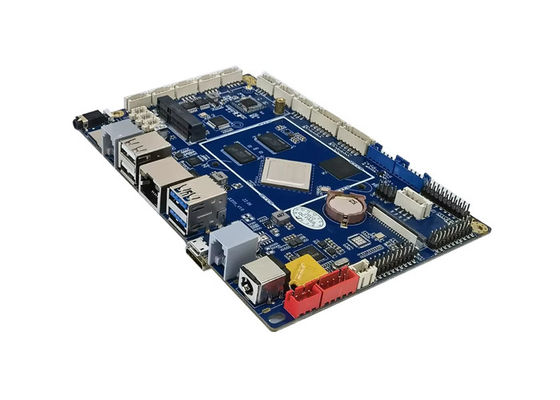

Embedded ARM Board Support For EDP MIPI Dual Screen Display RK3568 Embedded Board For Self-Service Terminal 1
Technical Specifications
CPURK3568 quad-core 2.0GHz Cortex-A55
GPUMali-G52 with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU1T TOPS AI acceleration
Operating SystemsAndroid 11, Linux, Ubuntu, Debian
MemoryDDR4 2GB/4GB/8GB options
StorageeMMC 16GB/32GB/64GB/128GB options
Display InterfacesLVDS, EDP, MIPI, HDMI
Serial Ports5 ports (RS232 and TTL optional) + 1 TTL
Cash Drawer InterfaceRJ11 6P6C
AudioStereo with Dolby audio support
NetworkGigabit Ethernet, 2.4G/5G WiFi, Bluetooth
PCB Dimensions146mm × 102mm × 1.6mm
Power SupplyDC 12V-24V input
Operating Temperature-20℃ to 80℃
Key Features
  • Support for LVDS, MIPI, EDP, HDMI display interfaces with I2C touch panel
  • Comprehensive connectivity: USB, COM ports, RJ11, cash drawer, Mini PCIE
  • Advanced networking: Gigabit Ethernet, dual-band WiFi, Bluetooth
  • Enhanced electromagnetic interference resistance and compatibility
  • Compatible with major POS application software platforms
Product Interface Photos

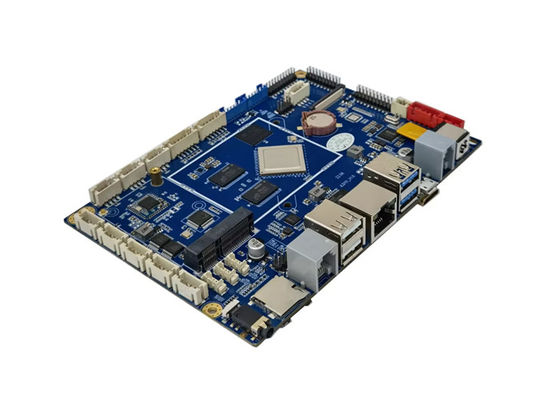

Embedded ARM Board Support For EDP MIPI Dual Screen Display RK3568 Embedded Board For Self-Service Terminal 2
Embedded ARM Board Support For EDP MIPI Dual Screen Display RK3568 Embedded Board For Self-Service Terminal 3
Service and Support
  • Flexible customization: Hardware interface adjustment, system optimization, LOGO branding
  • Comprehensive development support: Open SDK and technical documentation
  • Quality assurance: 1-year warranty with lifetime technical support
  • Packaging options: Vacuum-sealed inner packaging with standard export cartons
