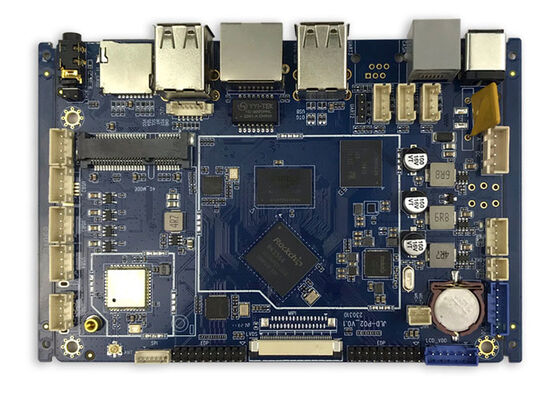

Embedded ARM PCB Board Rockchip RK3566 Android System Motherboard
This embedded ARM PCB motherboard is specially designed for POS terminals and KIOSK self-service terminals. Equipped with Rockchip RK3566 main control chip and Android system, it stands out as a core solution for commercial intelligent devices by virtue of its powerful computing capability, flexible storage configurations and stable compatibility.
Hardware Specifications
| CPU |
RK3566 Quad-core 64-bit Cortex-A55 processor, maximum frequency 1.8GHz |
| GPU |
ARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| NPU |
1TOPS |
| Memory |
2G/4G/8G DDR4 optional |
| EMMC |
16G-128G optional |
| Display |
Support LVDS, EDP, MIPI |
| Audio Output |
Stereo, support Dolby sound effect |
| Audio Port |
3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface |
| Ethernet |
10/100M |
| Wi-Fi |
2.4G/5G WiFi BT |
| OS |
Android 11/Ubuntu 20.04/Debian 10 |
| TP |
I2C /USB interface TP |
| Memory Card Type |
TF-CARD |
| USB Interface |
Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce) |
| Serial Port |
5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs) |
| RTC |
Support power-off clock memory, automatic power on and off |
| Camera |
USB camera |
| PCB Size |
125mm*90mm*1.6mm |
| Power Supply |
DC12V-24V input |
| Temperature |
-20° - 80℃ |
Core Performance: High-Efficiency Computing & AI Empowerment
The main control processor adopts the RK3566 quad-core 64-bit Cortex-A55 architecture, which balances computing performance and energy efficiency, and easily handles multi-task operations such as cash register settlement and interface interaction.
It is integrated with an ARM G52 2EE GPU that supports intelligent frequency modulation and scheduling, reducing lag in high-load scenarios and lowering power consumption in low-load conditions to ensure long-term stable operation of the device.
Built-in NPU with 1-teraflop computing power supports rapid deployment of AI algorithms, enabling intelligent functions like passenger flow analysis and object recognition, and helping commercial devices upgrade to an intelligent user experience.
Storage Configuration: Flexible Adaptation to Diverse Needs
The memory offers optional configurations of 2G/4G/8G DDR4. As a mainstream solution in the embedded market, DDR4 features high bandwidth and low latency, meeting the operational requirements of applications with varying complexity levels.
Storage is available with optional eMMC capacities of 16G/32G/64G/128G, supporting fast data reading/writing and stable storage, and is suitable for storing various commercial software, transaction records and multimedia resources.
Scenario Adaptation: Exclusive Optimization for Commercial Devices
It is deeply compatible with the Android system and provides a complete set of development tools and technical support, facilitating the rapid integration of POS cash register systems and KIOSK self-service programs.
Optimized for stability in commercial scenarios, it supports long-term continuous operation mode and is compatible with various peripheral interfaces, satisfying the hardware expansion needs of payment terminals, self-service inquiry machines and other devices.
