Embedded ARM Motherboard Support Dual Screen Display EDP MIPI ARM G52 2EE PCBA Board

1 piece sample is supported.
MOQ
$40-$60
Price
Embedded ARM Motherboard Support Dual Screen Display EDP MIPI ARM G52 2EE PCBA Board
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Embedded ARM Motherboard
Products Status: Stock
Application: POS Machine KIOSK
OS: ANDROID 11/Linux Ubuntu
PCB Size: 125mm*90mm
Power Input: DC12V-28V Input
Dual Screen Display: Support For EDP, MIPI
RTC: Support
GPU: ARM G52 2EE
NPU: Support 1T Computing Power
Camera Interface: Support
Factory: Yes
Origin: China
EMMC: EMMC16G/32G/64G/128G Option
Highlight:

ARM motherboard dual screen display

,

Embedded ARM board EDP MIPI

,

ARM G52 PCBA board
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-P02
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: TT /Paypal
Supply Ability: 100K/month
Product Description

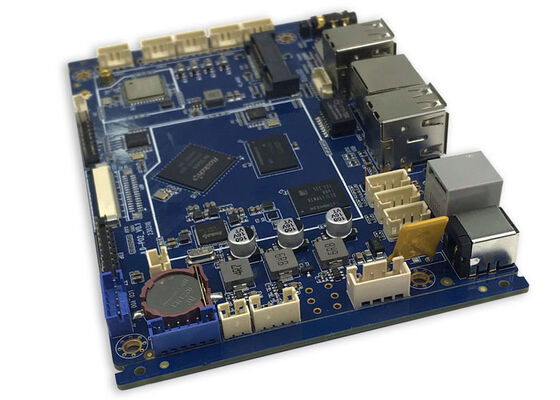

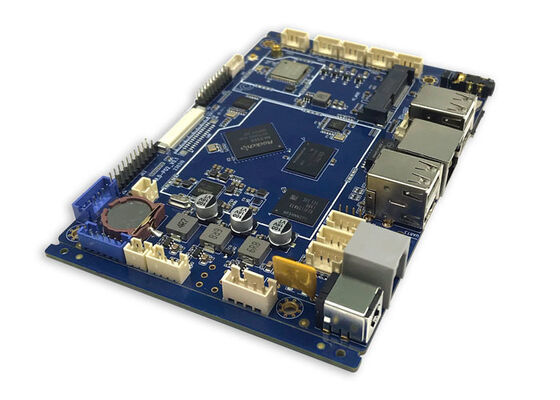

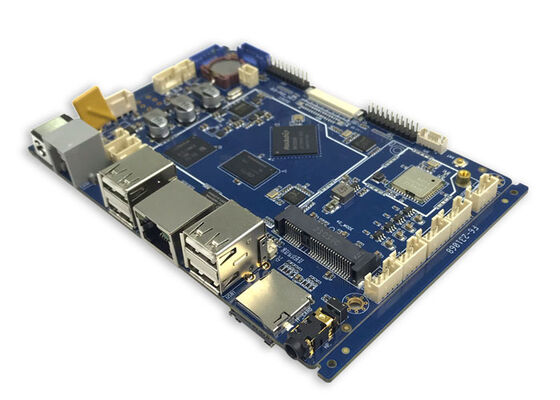

Embedded ARM Motherboard with Dual Screen Display
This high-performance embedded ARM motherboard is designed for multi-scenario intelligent terminals. Featuring an ARM G52 2EE GPU and 1T computing power NPU, it incorporates dual EDP + dual MIPI dual-screen heterogeneous display technology. With low power consumption, strong expandability, and high stability, it provides an efficient solution for IoT, industrial control, and intelligent terminal applications.

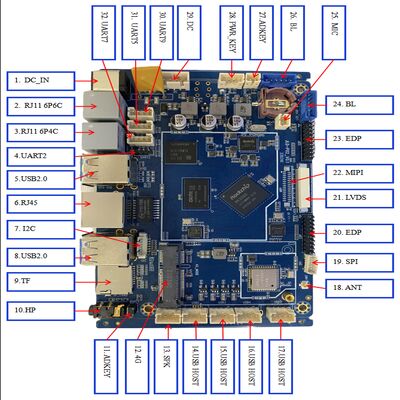

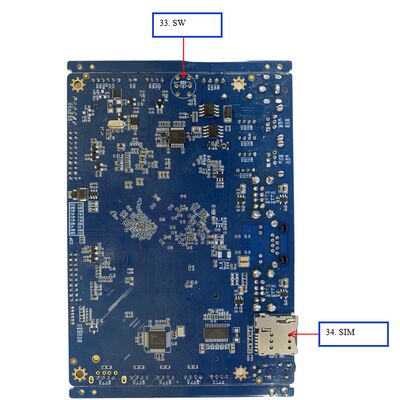

Hardware Specifications
CPU RK3566 Quad-core 64-bit Cortex-A55 processor, maximum frequency 1.8GHz
GPU ARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU 1TOPS
Memory 2G/4G/8G DDR4 optional
EMMC 16G-128G optional
Display Support LVDS, EDP, MIPI
Audio Output Stereo, support Dolby sound effect
Audio Port 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface
Ethernet 10/100M
Wi-Fi 2.4G/5G WiFi BT
OS Android 11/Ubuntu 20.04/Debian 10
TP I2C /USB interface TP
Memory Card Type TF-CARD
USB Interface Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce)
Serial Port 5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs)
RTC Support power-off clock memory, automatic power on and off
Camera USB camera
PCB Size 125mm*90mm*1.6mm
Power Supply DC12V-24V input
Temperature -20° - 80℃
Embedded ARM Motherboard Support Dual Screen Display EDP MIPI ARM G52 2EE PCBA Board 0 Embedded ARM Motherboard Support Dual Screen Display EDP MIPI ARM G52 2EE PCBA Board 1
Core Performance Features
Graphics Processing Capability
Built with ARM G52 2EE GPU based on Bifrost architecture, supporting mainstream graphics interfaces including OpenGL 2.0 and Vulkan. Integrated with 768-thread pool and high-performance 2D acceleration hardware, it efficiently handles complex graphics rendering, video encoding/decoding, and AR applications, achieving optimal performance and energy efficiency balance.
AI Computing Power Support
Equipped with 1T computing power NPU compatible with TensorFlow and Caffe frameworks. Enables localized rapid processing of AI tasks including target detection, image recognition, and behavior analysis. Detection frame rate exceeds traditional CPUs by over 20 times, meeting real-time intelligent analysis requirements for smart terminals.
Dual-screen Display Technology
Natively supports dual EDP and dual MIPI interfaces for hardware-level dual-screen heterogeneous display. Screens can independently display different content or operate in synchronous mode, supporting independent multi-touch operation and adapting to various resolution screens for multiple information stream display.
Application Scenarios
Widely applicable to intelligent retail, security systems, vehicle-mounted terminals, and digital signage. Serves as core control board for intelligent cash registers and self-service kiosks, enabling independent display of operation interfaces and advertising content. Also suitable for industrial visual inspection and AI monitoring devices, providing synchronous presentation of detection data and images through NPU real-time analysis. Adaptable to vehicle infotainment systems and access control terminals, meeting requirements for parallel processing and multi-information display.
