Rockchip RK3566 Embedded ARM Motherboard With 2G/4G/8G DDR4 Quad Core Development Board

1 piece sample is supported.
MOQ
$40-$60
Price
Rockchip RK3566 Embedded ARM Motherboard With 2G/4G/8G DDR4 Quad Core Development Board
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Rockchip RK3566 Embedded ARM Motherboard
Factory: Yes
Power Input: DC12V-28V Input
Audio Output: Stereo, Support The Social Sound Effects
OS: ANDROID 11/Linux Ubuntu
PCB Size: 125mm*90mm
Dual Screen Display: Support For EDP, MIPI
RTC: Support
Highlight:

Rockchip RK3566 ARM motherboard

,

Quad core development board

,

2G DDR4 embedded board
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-P02
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: TT /Paypal
Supply Ability: 100K/month
Product Description
Rockchip RK3566 Embedded ARM Motherboard
High-performance quad-core 64-bit Cortex-A55 processor motherboard supporting Android 11 and Linux Ubuntu operating systems, designed specifically for commercial POS machine applications.
Hardware Specifications
CPURK3566 Quad-core 64-bit Cortex-A55 processor, maximum frequency 1.8GHz
GPUARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU1TOPS
Memory2G/4G/8G DDR4 optional
EMMC16G-128G optional
DisplaySupport LVDS, EDP, MIPI
Audio OutputStereo, support Dolby sound effect
Audio Port3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface
Ethernet10/100M
Wi-Fi2.4G/5G WiFi BT
OSAndroid 11/Ubuntu 20.04/Debian 10
TPI2C /USB interface TP
Memory Card TypeTF-CARD
USB InterfaceBuilt-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce)
Serial Port5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs)
RTCSupport power-off clock memory, automatic power on and off
CameraUSB camera
PCB Size125mm*90mm*1.6mm
Power SupplyDC12V-24V input
Temperature-20° - 80℃

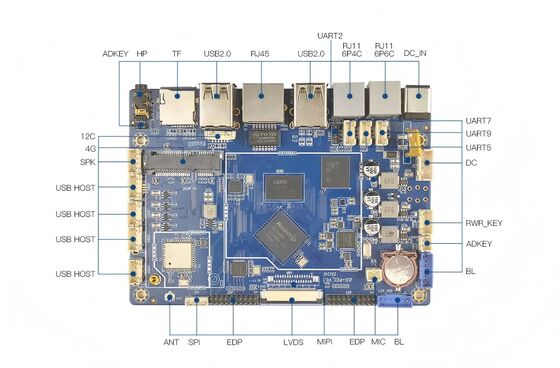

Rockchip RK3566 Embedded ARM Motherboard With 2G/4G/8G DDR4 Quad Core Development Board 0

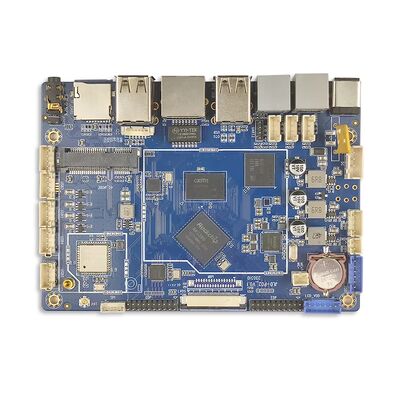

Rockchip RK3566 Embedded ARM Motherboard With 2G/4G/8G DDR4 Quad Core Development Board 1

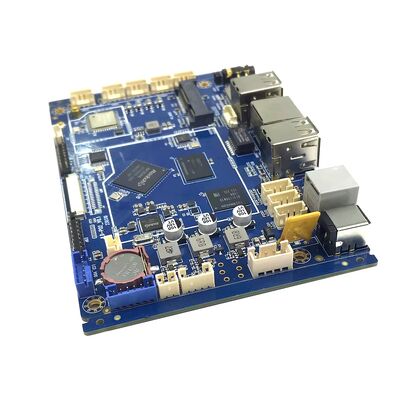

Rockchip RK3566 Embedded ARM Motherboard With 2G/4G/8G DDR4 Quad Core Development Board 2
Product Overview
Centered on the Rockchip RK3566 processor, this embedded ARM motherboard is equipped with high-stability DDR4 memory and a flexible dual-screen display solution. Boasting a wide-voltage power supply design, it delivers efficient and reliable hardware support for intelligent POS terminals, serving as an optimal embedded development solution that balances performance and compatibility.
Core Performance Features
Powerful Main Control Core
It adopts the quad-core 64-bit Cortex-A55-based RK3566 processor. With an efficient and low-power architecture, the processor enables smooth multi-tasking and complex application operation, and is compatible with mainstream operating systems such as Android and Linux Ubuntu.
Flexible Memory Options
It offers 2G/4G/8G DDR4 memory versions. Featuring mature memory technology and high data transmission rate, it can meet storage performance requirements in different scenarios and provide sufficient running space for applications like edge computing and intelligent interaction.
Wide-Voltage Power Supply Design
Supporting a wide DC input range of 12V-28V, it is compatible with diverse power supply environments including industrial equipment and in-vehicle systems. It features high power supply stability and outstanding anti-interference capability, ensuring continuous operation of devices in complex scenarios.
Dual-Screen Independent Display Capability
It supports dual-screen independent display function via dual EDP and dual MIPI interfaces, being compatible with high-speed signal transmission protocols to realize two-channel independent display output. It can meet the requirements of high-definition display and multi-screen synchronous display, and is compatible with different terminal devices such as monitors and touch screens, thus being widely applied in POS terminals.
