Rockchip RK3566 Quad Core Board with 64 GB RAM for POS Machine All-in-one Linux OS API Available

1 piece sample is supported.
MOQ
$40-$60
Price
Rockchip RK3566 Quad Core Board with 64 GB RAM for POS Machine All-in-one Linux OS API Available
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Rockchip RK3566 Board JLD-P02
Factory: Yes
EMMC: 16G To 128G Optional
Audio Output: Stereo, Support The Social Sound Effects
OS: ANDROID 11/Linux Ubuntu
PCB Size: 125mm*90mm
Dual Screen Display: Support LVDS，EDP，MIPI
RTC: Support
Highlight:

Rockchip RK3566 embedded board

,

Quad core POS machine board

,

Linux OS ARM board
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-P02
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: TT /Paypal
Supply Ability: 100K/month
Product Description
Rockchip RK3566 Quad Core Board with 64 GB RAM for POS Machine All-in-one Linux OS API Available
Rockchip RK3566 Quad Core Board with 64 GB RAM for Digital Signage Development Kit Linux OS API Available
Hardware Specifications
CPU RK3566 Quad-core 64-bit Cortex-A55 processor, maximum frequency 1.8GHz
GPU ARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU 1TOPS
Memory 2G/4G/8G DDR4 optional
EMMC 16G-128G optional
Display Support LVDS, EDP, MIPI
Audio Output Stereo, support Dolby sound effect
Audio Port 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface
Ethernet 10/100M
Wi-Fi 2.4G/5G WiFi BT
OS Android 11/Ubuntu 20.04/Debian 10
TP I2C /USB interface TP
Memory Card Type TF-CARD
USB Interface Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce)
Serial Port 5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs)
RTC Support power-off clock memory, automatic power on and off
Camera USB camera
PCB Size 125mm*90mm*1.6mm
Power Supply DC12V-24V input
Temperature -20° - 80℃

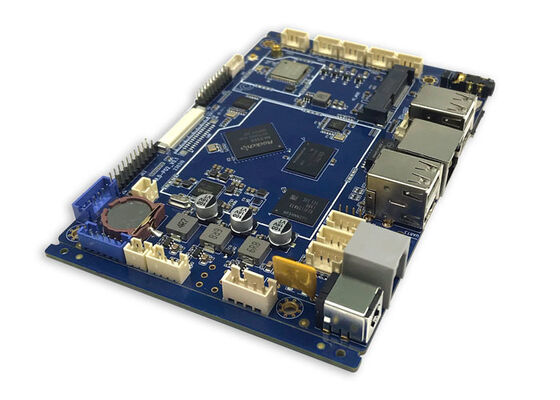

Rockchip RK3566 Quad Core Board with 64 GB RAM for POS Machine All-in-one Linux OS API Available 0

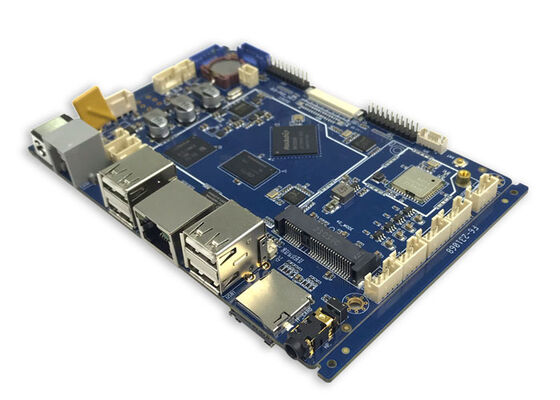

Rockchip RK3566 Quad Core Board with 64 GB RAM for POS Machine All-in-one Linux OS API Available 1

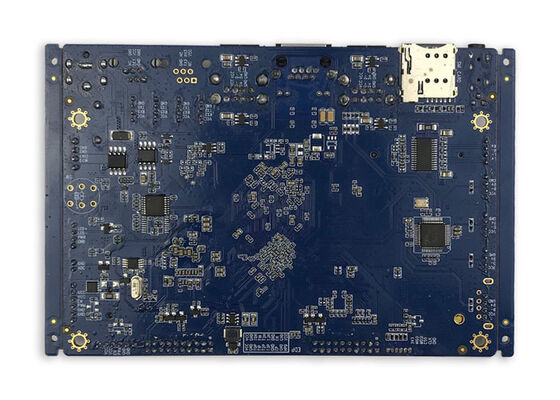

Rockchip RK3566 Quad Core Board with 64 GB RAM for POS Machine All-in-one Linux OS API Available 2
This embedded motherboard is equipped with the Rockchip RK3566 quad-core 64-bit processor, based on the Cortex-A55 architecture with a maximum frequency of up to 1.8GHz. It can easily meet the multi-tasking requirements of all-in-one POS machines, striking an optimal balance between high performance and low power consumption.
In terms of graphics processing, the motherboard integrates the ARM G52 2EE GPU. It fully supports mainstream graphics standards including OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1, enabling smooth rendering of POS device interfaces, barcode scanning and recognition, as well as receipt preview functions.
Flexible configurations are available for memory and storage. The memory offers multiple options of 2GB/4GB/8GB DDR4, which can adapt to business systems of varying complexity. The storage can be optionally equipped with 16GB-128GB eMMC chips, satisfying the storage requirements of transaction data, system firmware and application programs.
Boasting a comprehensive range of display interfaces, it supports multiple display protocols including LVDS, EDP and MIPI. This allows flexible connection to various display screens of all-in-one POS machines, adapting to hardware solutions of different sizes and resolutions.
The motherboard is fully compatible with the Linux operating system and provides complete API interface support, facilitating secondary development and function customization for developers. It serves as an ideal hardware solution for building efficient and stable POS terminal devices.
