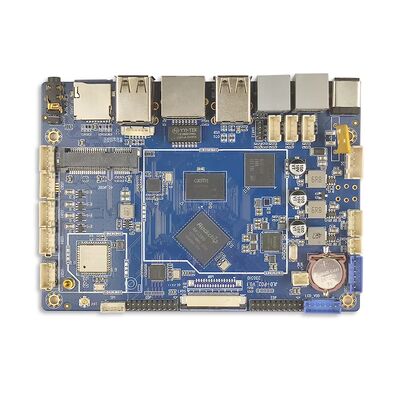

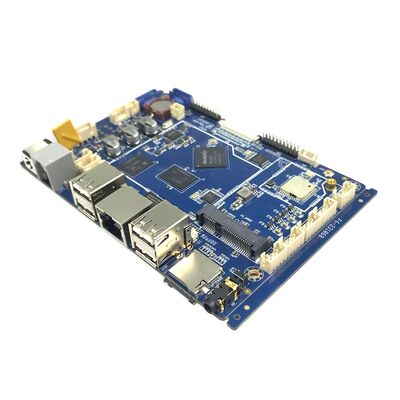

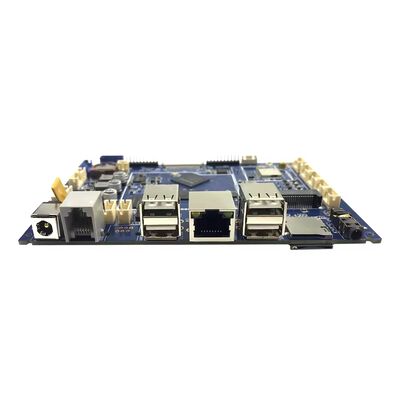

RK3566 CPU Development Board for Digital Queue & Information Kiosk Systems
This RK3566 CPU development board is specifically engineered for digital queue ticket dispensers and self-service information inquiry terminals in government service halls, banks, hospitals, and libraries. It integrates high-performance computing, dual-system compatibility, and multi-interface expansion to provide stable, reliable hardware support for touch-interactive devices.
Hardware Specifications
| CPU |
RK3566 Quad-core 64-bit Cortex-A55 processor, maximum frequency 1.8GHz |
| GPU |
ARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| NPU |
1TOPS |
| Memory |
2G/4G/8G DDR4 optional |
| EMMC |
16G-128G optional |
| Display |
Support LVDS, EDP, MIPI |
| Audio Output |
Stereo, support Dolby sound effect |
| Audio Port |
3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface |
| Ethernet |
10/100M |
| Wi-Fi |
2.4G/5G WiFi BT |
| OS |
Android 11/Ubuntu 20.04/Debian 10 |
| TP |
I2C /USB interface TP |
| Memory Card Type |
TF-CARD |
| USB Interface |
Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce) |
| Serial Port |
5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs) |
| RTC |
Support power-off clock memory, automatic power on and off |
| Camera |
USB camera |
| PCB Size |
125mm*90mm*1.6mm |
| Power Supply |
DC12V-24V input |
| Temperature |
-20° - 80℃ |
Key Features
High-Performance Processing
Equipped with the Rockchip RK3566 quad-core 64-bit processor using advanced 22nm process technology, delivering powerful computing capability with low power consumption for smooth multitasking operations and high-definition touch interface display.
Dual Operating System Support
Supports both Android 11 and Linux Ubuntu operating systems. Android 11 provides compatibility with rich touch applications, while Linux Ubuntu offers flexible development environment for customized information query and data management functions.
Advanced Wireless Connectivity
Integrated 2.4G/5G dual-band WiFi and Bluetooth modules automatically switch frequency bands to avoid signal interference, ensuring stable data transmission. Bluetooth supports external peripherals like barcode scanners and printers.
Touch Panel Compatibility
Features I2C/USB dual-interface touch panel drivers compatible with mainstream capacitive and resistive touch screens. I2C interface provides stable transmission for small to medium panels, while USB supports large-size multi-touch screens.
Application Scenarios
- Library self-service book borrowing machines
- Bank self-service ticket dispensers
- Hospital triage inquiry machines
- Government service hall information kiosks
- Digital queue management systems
This development board provides an efficient, reliable hardware solution for self-service terminal equipment in smart government, healthcare, finance, and other fields, leveraging its stability, rich interface configuration, and flexible dual-system switching capability.
