Rockchip RK3566 Development Board LVDS EDP MIPI Edp Lvds Ai Intelligent Scale Panel Embedded ARM Motherboard

1 piece sample is supported.
MOQ
$40-$60
Price
Rockchip RK3566 Development Board LVDS EDP MIPI Edp Lvds Ai Intelligent Scale Panel Embedded ARM Motherboard
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Rockchip RK3566 Development Board JLD-P02
CPU: RK3566 Quad-core 64-bit Cortex-A55 Processor, Maximum Frequency 1.8GHz
EMMC: 16G To 128G Optional
Audio Output: Stereo, Support The Social Sound Effects
OS: ANDROID 11/Linux Ubuntu
PCB Size: 125mm*90mm
Dual Screen Display: Support LVDS，EDP，MIPI
RTC: Support
Highlight:

Rockchip RK3566 ARM motherboard

,

LVDS EDP MIPI development board

,

AI intelligent scale panel
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-P02
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: TT /Paypal
Supply Ability: 100K/month
Product Description
Rockchip RK3566 Development Board LVDS EDP MIPI ARM Motherboard
This Rockchip RK3566 embedded ARM motherboard, model JLD-P02, is specially engineered for AI smart scale panels and other intelligent terminal devices. Integrated with a full range of high-definition display interfaces and robust graphics processing capabilities, it stands out with its high integration and low power consumption, serving as an ideal hardware solution for embedded smart devices.
Hardware Specifications
CPU RK3566 Quad-core 64-bit Cortex-A55 processor, maximum frequency 1.8GHz
GPU ARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU 1TOPS
Memory 2G/4G/8G DDR4 optional
EMMC 16G-128G optional
Display Support LVDS, EDP, MIPI
Audio Output Stereo, support Dolby sound effect
Audio Port 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface
Ethernet 10/100M
Wi-Fi 2.4G/5G WiFi BT
OS Android 11/Ubuntu 20.04/Debian 10
TP I2C /USB interface TP
Memory Card Type TF-CARD
USB Interface Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce)
Serial Port 5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs)
RTC Support power-off clock memory, automatic power on and off
Camera USB camera
PCB Size 125mm*90mm*1.6mm
Power Supply DC12V-24V input
Temperature -20° - 80℃

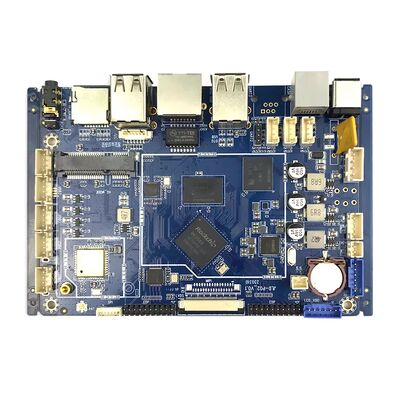

Rockchip RK3566 Development Board LVDS EDP MIPI Edp Lvds Ai Intelligent Scale Panel Embedded ARM Motherboard 0

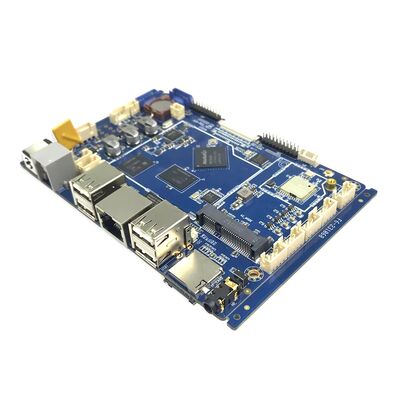

Rockchip RK3566 Development Board LVDS EDP MIPI Edp Lvds Ai Intelligent Scale Panel Embedded ARM Motherboard 1

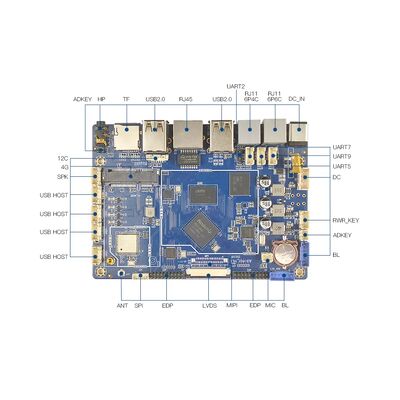

Rockchip RK3566 Development Board LVDS EDP MIPI Edp Lvds Ai Intelligent Scale Panel Embedded ARM Motherboard 2
Performance Features
Powered by the RK3566 quad-core 64-bit Cortex-A55 processor with a maximum frequency of 1.8GHz, the motherboard balances high-efficiency computing performance and low power consumption. It can seamlessly support data analysis, algorithm operation, and multitasking parallel processing requirements of AI smart scales, ensuring stable and reliable device operation.
Graphics & Display Capabilities
  • Equipped with ARM G52 2EE graphics processor supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1
  • Efficiently renders high-definition images and dynamic interactive interfaces
  • Integrated display interfaces: LVDS, EDP and MIPI for flexible compatibility
  • LVDS interface compatible with traditional industrial display panels
  • EDP interface supports high-definition narrow-bezel LCD screens
  • MIPI interface meets requirements of miniaturized, high-resolution display scenarios
