Home /Products/Embedded ARM Board/Android 11 Pos Systems TTL/RS232 Optional Interface Motherboards Pos RK3566 Tablet Pos Embedded ARM Mainboard

Android 11 Pos Systems TTL/RS232 Optional Interface Motherboards Pos RK3566 Tablet Pos Embedded ARM Mainboard

1 piece sample is supported.
MOQ
$40-$60
Price
Android 11 Pos Systems TTL/RS232 Optional Interface Motherboards Pos RK3566 Tablet Pos Embedded ARM Mainboard
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Pos Embedded ARM Mainboard
USB Interface: Built-in USB 2.0 Sockets (4 Pcs), External USB 3.0 (1 Pce) 2.0 (2 Pcs) OTG (1 Pce)
Serial Port: 5 In Total, Optional Types, TTL (1-5 Pcs), RS232 (0-4 Pcs)
OS: ANDROID 11/Linux Ubuntu
PCB Size: 125mm*90mm
Power Input: DC12V-28V Input
Dual Screen Display: Support For EDP, MIPI
RTC: Support
Highlight:

Android 11 POS motherboard

,

RK3566 POS mainboard

,

TTL RS232 POS interface
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-P02
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: TT /Paypal
Supply Ability: 100K/month
Product Description
Android 11 POS Systems TTL/RS232 Optional Interface Motherboards
Embedded ARM PCB Board Rockchip RK3566 Android System Motherboard designed for POS payment terminals, industrial tablets, and intelligent interactive devices.
Hardware Specifications
CPURK3566 Quad-core 64-bit Cortex-A55 processor, maximum frequency 1.8GHz
GPUARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU1TOPS
Memory2G/4G/8G DDR4 optional
EMMC16G-128G optional
DisplaySupport LVDS, EDP, MIPI
Audio OutputStereo, support Dolby sound effect
Audio Port3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface
Ethernet10/100M
Wi-Fi2.4G/5G WiFi BT
OSAndroid 11/Ubuntu 20.04/Debian 10
TPI2C /USB interface TP
Memory Card TypeTF-CARD
USB InterfaceBuilt-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce)
Serial Port5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs)
RTCSupport power-off clock memory, automatic power on and off
CameraUSB camera
PCB Size125mm*90mm*1.6mm
Power SupplyDC12V-24V input
Temperature-20° - 80℃
Android 11 Pos Systems TTL/RS232 Optional Interface Motherboards Pos RK3566 Tablet Pos Embedded ARM Mainboard 0
Android 11 Pos Systems TTL/RS232 Optional Interface Motherboards Pos RK3566 Tablet Pos Embedded ARM Mainboard 1

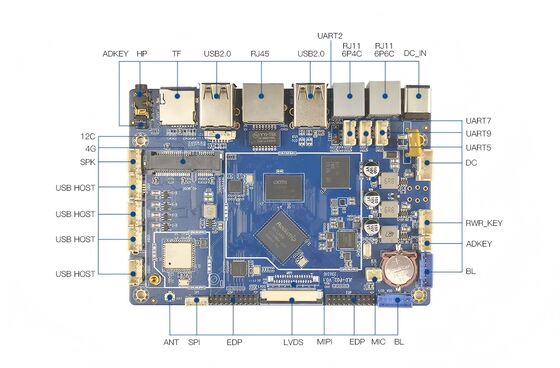

Interface Configuration & Features
  • Touch & Storage Expansion: Supports dual-mode I2C/USB touch interfaces and TF card storage expansion for flexible device configuration
  • USB Interface Combination: 4 built-in USB 2.0 ports plus external interfaces including 1 USB 3.0 high-speed port, 2 USB 2.0 ports and 1 OTG port
  • Flexible Serial Port Selection: 5 serial port channels supporting TTL (1-5 channels) and RS232 (0-4 channels) combinations for industrial control applications
Applications & Benefits
Leveraging the low-power ARM architecture and Android ecosystem, this motherboard is ideal for intelligent POS terminals, self-service kiosks, industrial tablets, and other embedded systems, delivering high-performance computing with excellent compatibility.
