Embedded ARM G52 2EE PCBA Board for Self-service Terminal
The JLD-P03 is an embedded PCBA motherboard developed by Jinglingda, built around the powerful Rockchip RK3568 processor. Engineered specifically for commercial applications including self-service terminals, this board features dual-screen display support and comprehensive interface options to meet the demanding requirements of intelligent interaction and high-efficiency computing in modern self-service equipment.
Core Performance Specifications
Processor
Rockchip RK3568 quad-core 64-bit Cortex-A55 processor with maximum frequency of 2.0GHz, delivering optimal balance between high performance and low power consumption for multi-tasking self-service terminal applications.
Graphics Processing
Integrated ARM G52 2EE graphics processor supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.0 for smooth graphics rendering and fluid interface operations.
AI Computing Power
Built-in NPU with 1TOPS computing power supporting INT8/INT16 hybrid operations. Compatible with TensorFlow, MXNet, PyTorch, and Caffe frameworks for intelligent recognition and behavior analysis applications.
Dual-Screen Display Capability
Supports dual-screen display output through dual EDP and dual MIPI interfaces. Capable of multiple display modes including independent and mirrored displays, ideal for main/auxiliary screen configurations, advertisement playback, and operational interface separation in self-service terminals.
System Support & Applications
Operating Systems
Compatible with Android 11, Ubuntu 20.04, and Debian 10, providing flexible development environments for rapid application deployment across various scenarios.
Application Scenarios
Ideal for commercial equipment including self-service terminals, POS systems, touch-screen POS machines, AI electronic scales, queue management systems, and self-service cash registers, enhancing equipment intelligence and operational efficiency.
Technical Specifications
| Parameter |
Specification |
| CPU |
RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz |
| GPU |
ARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| NPU |
1TOPS |
| Memory |
2G/4G/8G DDR4 optional |
| EMMC |
16G-128G optional |
| Display |
Support LVDS, EDP, MIPI |
| Audio Output |
Stereo, support Dolby sound effect |
| Audio Port |
3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface |
| Ethernet |
10/100/1000M |
| Wi-Fi |
2.4G/5G WiFi BT |
| OS |
Android 11/Ubuntu 20.04/Debian 10 |
| TP |
I2C/USB interface TP |
| Memory Card Type |
TF-CARD |
| USB Interface |
Built-in USB 2.0 sockets (4 pcs), external USB 3.0 (1 pce) 2.0 (2 pcs) |
| Serial Port |
5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs) |
| RTC |
Support power-off clock memory, automatic power on and off |
| Camera |
USB camera |
| PCB Size |
125mm*90mm*1.6mm |
| Power Supply |
DC12V3A input |
| Temperature |
-20° - 80℃ |

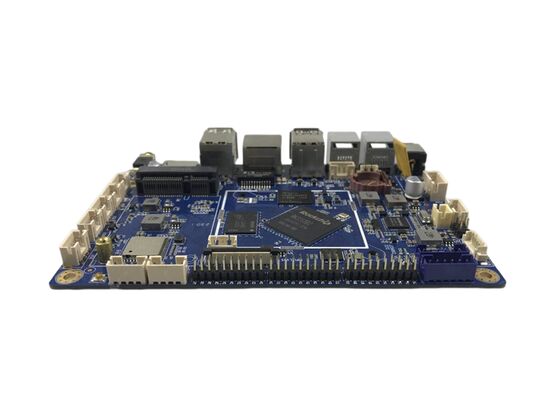

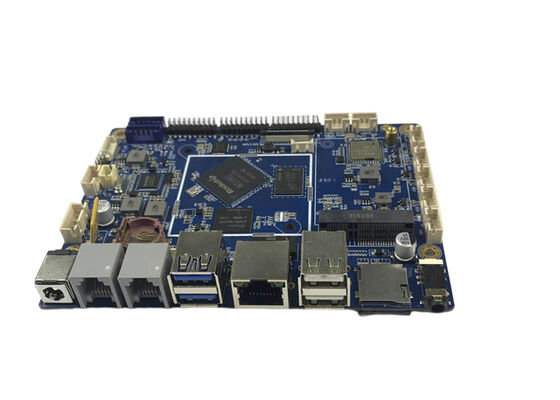

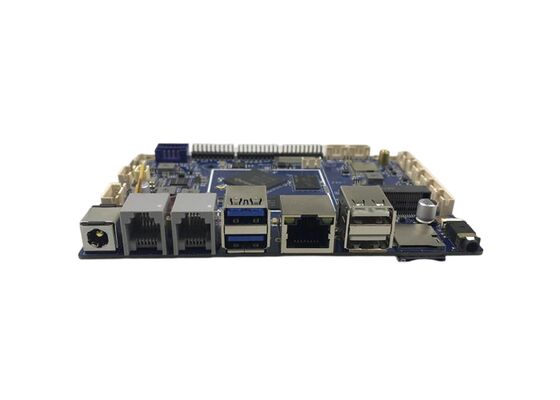

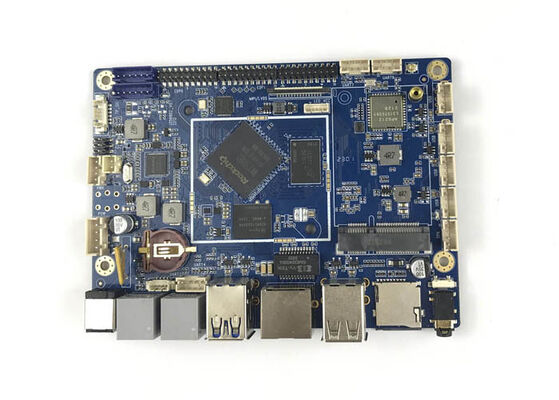

Product Images
