RK3568 Quad-core ARM Embedded Board for IOT Smart POS Terminal Board 2G 4G 8G RAM 16G 32G 64G 128G ROM

1 piece sample is supported.
MOQ
$50-$90
Price
RK3568 Quad-core ARM Embedded Board for IOT Smart POS Terminal Board 2G 4G 8G RAM 16G 32G 64G 128G ROM
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Embedded ARM Board JLD-P03
CPU: RK3568 Quad-core 64-bit Cortex-A55 Processor, With The Highest Frequency Of 2.0GHz
ROM: 16G 32G 64G 128G
RAM: 2G 4G 8G
OS: Android 11/ Ubuntu 20.04/Debian 10
Type: Multilayer Pcb
Material: RF4
Layer: 4
Highlight:

RK3568 ARM embedded board for IoT

,

Quad-core smart POS terminal board

,

Embedded ARM board with 2G RAM
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-P03
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: TT /Paypal
Supply Ability: 100K/month
Product Description
RK3568 Quad-core ARM Embedded Board for IoT Smart POS Terminal
This high-performance embedded motherboard (Model: JLD-P03) is specifically engineered for commercial IoT applications including smart POS terminals, self-service kiosks, and digital signage. Featuring flexible memory configurations of 2G/4G/8G RAM and 16G-128G ROM options, it delivers robust processing power for demanding commercial environments.
Advanced Processing Capabilities
Powered by the RK3568 quad-core 64-bit Cortex-A55 processor with maximum frequency of 2.0GHz, this board combines high-efficiency computing with low-power consumption. The integrated ARM G52 2EE graphics processor ensures smooth rendering of high-definition interfaces, while the built-in NPU delivers up to 1TOPS computing power for AI applications.
Key Features
  • High-performance quad-core ARM processor for multi-task processing
  • 4K 60fps H.265/H.264/VP9 video decoding capability
  • Flexible memory options: 2G/4G/8G DDR4 RAM
  • Expandable storage: 16G/32G/64G/128G EMMC
  • Dual-system support: Android 11/Ubuntu 20.04/Debian 10
  • Comprehensive connectivity including Gigabit Ethernet and dual-band WiFi
  • Wide operating temperature range: -20°C to 80°C
Technical Specifications
CPU RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz
GPU ARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU 1TOPS
Memory 2G/4G/8G DDR4 optional
EMMC 16G-128G optional
Display Support LVDS, EDP, MIPI
Audio Output Stereo, support Dolby sound effect
Audio Port 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface
Ethernet 10/100/1000M
Wi-Fi 2.4G/5G WiFi BT
OS Android 11/Ubuntu 20.04/Debian 10
TP I2C/USB interface TP
Memory Card Type TF-CARD
USB Interface Built-in USB 2.0 sockets (4 pcs), external USB 3.0 (1 pce) 2.0 (2 pcs)
Serial Port 5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs)
RTC Support power-off clock memory, automatic power on and off
Camera USB camera
PCB Size 125mm*90mm*1.6mm
Power Supply DC12V3A input
Temperature -20° - 80℃
Product Images
RK3568 Quad-core ARM Embedded Board for IOT Smart POS Terminal Board 2G 4G 8G RAM 16G 32G 64G 128G ROM 0

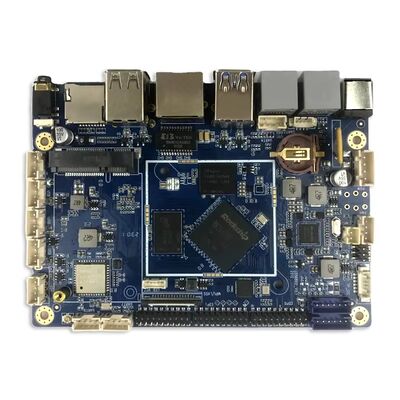

Front View
RK3568 Quad-core ARM Embedded Board for IOT Smart POS Terminal Board 2G 4G 8G RAM 16G 32G 64G 128G ROM 1

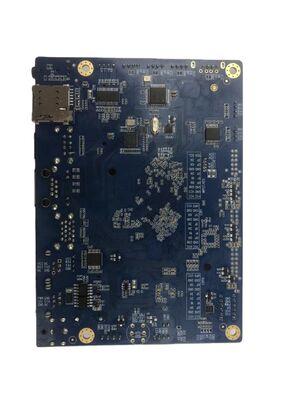

Interface Details
RK3568 Quad-core ARM Embedded Board for IOT Smart POS Terminal Board 2G 4G 8G RAM 16G 32G 64G 128G ROM 2

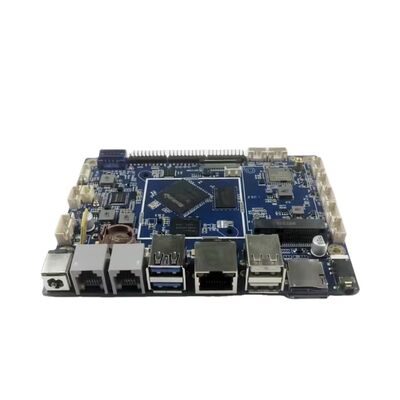

Component Layout
RK3568 Quad-core ARM Embedded Board for IOT Smart POS Terminal Board 2G 4G 8G RAM 16G 32G 64G 128G ROM 3
Connectivity Options
RK3568 Quad-core ARM Embedded Board for IOT Smart POS Terminal Board 2G 4G 8G RAM 16G 32G 64G 128G ROM 4
Installation Example
