Embedded Motherboard Rockchip RK3568 Android 11 2+16GB For POS Machine JLD-P03 Model

1 piece sample is supported.
MOQ
$50-$90
Price
Embedded Motherboard Rockchip RK3568 Android 11 2+16GB For POS Machine JLD-P03 Model
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Embedded Motherboard Rockchip RK3568 JLD-P03
CPU: RK3568 Quad-core 64-bit Cortex-A55 Processor, With The Highest Frequency Of 2.0GHz
ROM: 16G 32G 64G 128G
RAM: 2G 4G 8G
OS: Android 11/ Ubuntu 20.04/Debian 10
Type: Multilayer Pcb
Material: RF4
Layer: 4
Highlight:

RK3568 Android 11 motherboard

,

POS machine embedded ARM board

,

2+16GB Rockchip motherboard
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-P03
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: TT /Paypal
Supply Ability: 100K/month
Product Description
JLD-P03 Embedded Motherboard for POS Systems
The JLD-P03 Embedded Motherboard is a high-performance core control unit specifically designed for commercial POS terminal applications. Featuring the powerful Rockchip RK3568 processor and Android 11 compatibility with mainstream storage configurations, this motherboard provides reliable hardware support for payment processing and data management in retail, hospitality, and service industries.
High-Performance Processing
Powered by the quad-core 64-bit Cortex-A55 Rockchip RK3568 processor with speeds up to 2.0GHz, this motherboard delivers robust computing performance while maintaining power efficiency. It easily handles multi-tasking requirements including real-time payment verification and high-definition interface rendering, ensuring smooth operation for commercial applications.
Flexible Connectivity
With dual-mode USB HOST/OTG interfaces, the motherboard offers versatile peripheral connectivity for seamless integration with POS devices. The built-in RTC (Real-Time Clock) maintains accurate system time during power-off states, ensuring precise transaction timestamping for financial reconciliation and data traceability.
Industrial-Grade Reliability
Designed for demanding commercial environments, the motherboard operates reliably across a wide temperature range of -20°C to 80°C. It supports dual-band 2.4G/5G WiFi with high-speed transmission and low packet loss, meeting the networking requirements for real-time transaction processing, remote management, and OTA updates.
Technical Specifications
CPURK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz
GPUARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU1TOPS
Memory2G/4G/8G DDR4 optional
EMMC16G-128G optional
DisplaySupport LVDS, EDP, MIPI
Audio OutputStereo, support Dolby sound effect
Audio Port3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface
Ethernet10/100/1000M
Wi-Fi2.4G/5G WiFi BT
OSAndroid 11/Ubuntu 20.04/Debian 10
TPI2C/USB interface TP
Memory Card TypeTF-CARD
USB InterfaceBuilt-in USB 2.0 sockets (4 pcs), external USB 3.0 (1 pce) 2.0 (2 pcs)
Serial Port5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs)
RTCSupport power-off clock memory, automatic power on and off
CameraUSB camera
PCB Size125mm*90mm*1.6mm
Power SupplyDC12V3A input
Temperature-20° - 80℃
Product Images

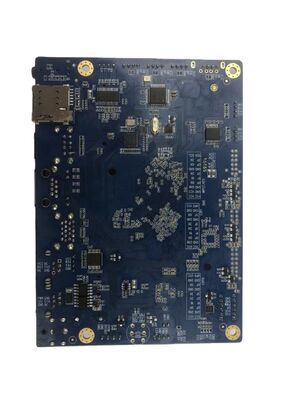

Embedded Motherboard Rockchip RK3568 Android 11 2+16GB For POS Machine JLD-P03 Model 0
Front View

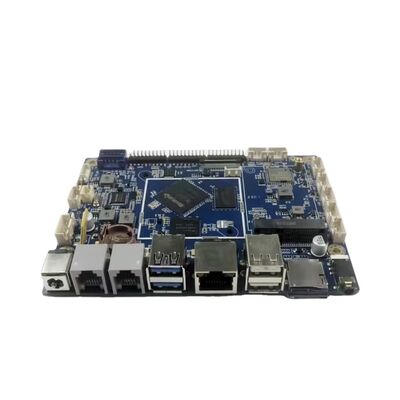

Embedded Motherboard Rockchip RK3568 Android 11 2+16GB For POS Machine JLD-P03 Model 1
Interface Details

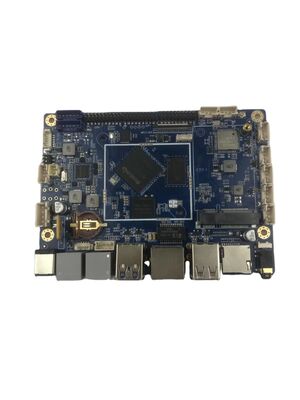

Embedded Motherboard Rockchip RK3568 Android 11 2+16GB For POS Machine JLD-P03 Model 2
Component Layout

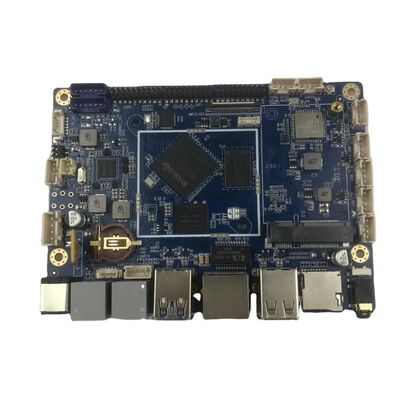

Embedded Motherboard Rockchip RK3568 Android 11 2+16GB For POS Machine JLD-P03 Model 3
Connectivity Options
Embedded Motherboard Rockchip RK3568 Android 11 2+16GB For POS Machine JLD-P03 Model 4
Installation Example
