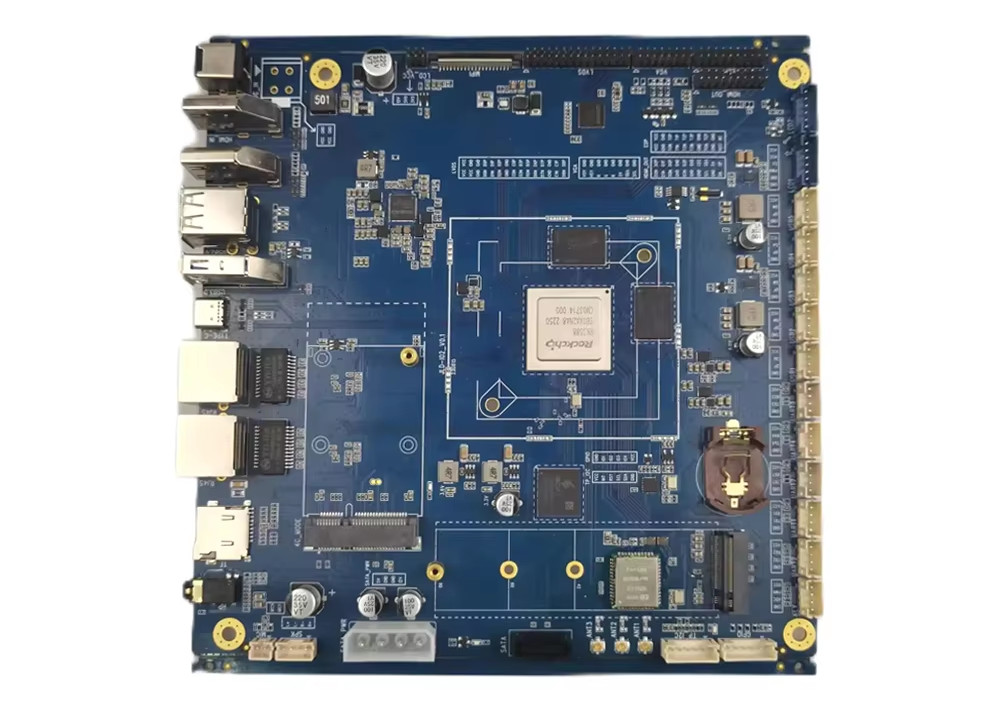

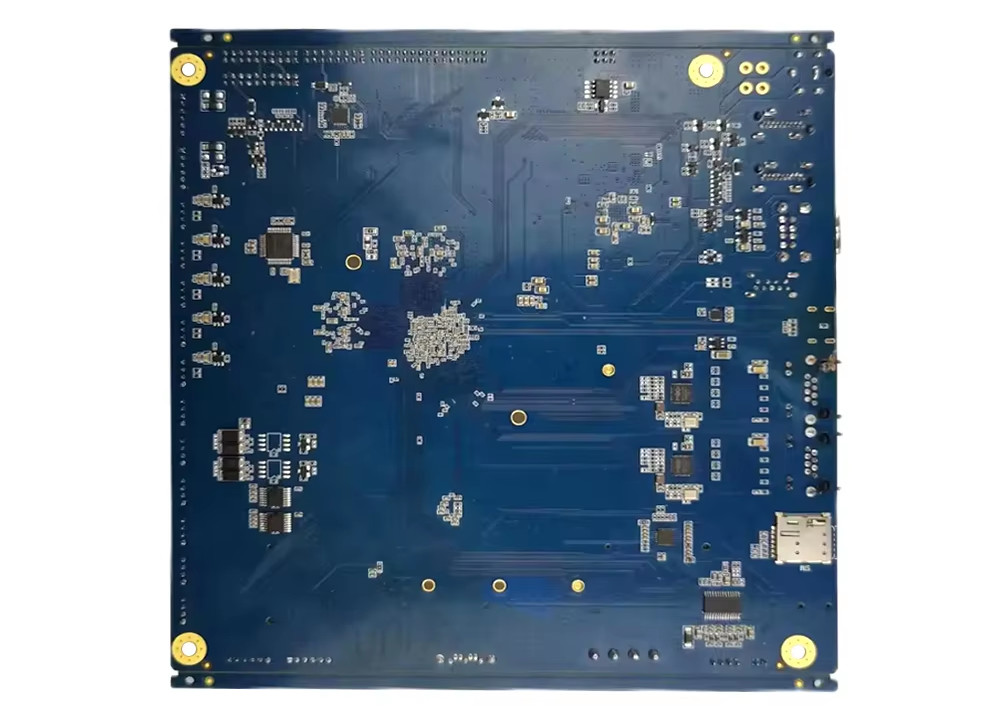

Industrial Embedded ARM Board RK3588 with LVDS/EDP Support
This industrial-grade ARM embedded motherboard is based on the Rockchip RK3568 chip, featuring a quad-core 64-bit Cortex-A55 processor and integrated high-performance NPU. It supports 8K video processing and Android 11 OS, with rich display interfaces and strong AI computing power suitable for industrial control, intelligent terminals, and edge computing applications.
Digital Signage Solution Case Study
Client Background
In 2025, a US digital signage solution provider specializing in intelligent advertising services for retail chains, transportation hubs, and corporate lobbies faced hardware performance bottlenecks and supply chain instability. They required an embedded motherboard solution combining high cost-performance with long-term supply assurance.
Project Requirements
The client needed a motherboard capable of 7×24 hour uninterrupted operation, supporting 4K video decoding with rich interfaces to drive various high-definition and bar-type advertising displays. For outdoor and semi-outdoor scenarios, the motherboard required stable operation in wide temperature environments while supporting remote content management and peripheral expansion.
Solution
After rigorous testing, the client selected an OEM customized motherboard based on the Rockchip RK3588 octa-core processor. The motherboard integrates ARM Mali-G610 MC4 GPU and NPU, supporting 4K H.265/H.264 video decoding to ensure smooth advertising content playback. Its diverse display interfaces (HDMI, LVDS, eDP, MIPI) accommodate varied requirements from traditional advertising screens to specialized bar-type displays.
Application Results
The solution has been successfully deployed in multiple chain supermarkets and public transport hubs across the United States. The low power consumption and high stability of the RK3588 mainboard ensure zero lag during long-term operation while significantly improving remote content update efficiency.
"The RK3588 solution strikes a perfect balance between performance and cost. Its industrial-grade reliability has greatly strengthened our competitiveness in the North American market."
Technical Specifications
| Component |
Specification |
| CPU |
RK3588 octa-core (4×Cortex-A76 + 4×Cortex-A55) with maximum frequency of 2.8GHz |
| GPU |
ARM Mali-G610 MC4 supporting OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1,1.2, OpenCL 1.1,1.2,2.0 |
| NPU |
6 TOPS neural processing unit |
| Memory |
2G/4G/8G DDR4 optional |
| EMMC |
16G-128G optional |
| Display |
Supports LVDS (dual 8), EDP, MIPI, HDMI, VGA |
| Ethernet |
10/100/1000M |
| Wi-Fi |
2.4G/5G WiFi with Bluetooth |
| Operating System |
Android 12 / Linux Ubuntu |
| Memory Card |
TF-CARD |
| USB Interface |
Built-in USB 2.0 sockets (5 pcs), external USB 2.0 (2 pcs), external 3.0 HOST/OTG (1 pce) |
| Serial Port |
5 total ports with optional types: TTL (1-5pcs), RS232 (0-4pcs), RS485 (0-2pcs) |
| RTC |
Supports power-off clock memory with automatic power on/off |
| Camera |
USB camera compatible |
| PCB Size |
170mm × 170mm |
| Power Supply |
DC 12V input |
| Temperature Range |
-20°C to 80°C |
Frequently Asked Questions
What is the brand name of this ARM Android Board product?
The brand name is JEWELLED.
What is the model number of this ARM Android Board product?
The model number is JLD-I02.
Where is this ARM Android Board product manufactured?
This product is manufactured in China.
What are the packaging details for this ARM Android Board product?
Packaging includes 1 piece per bubble bag, with proper quantity in a carton.
