Embedded ARM Motherboard With Rockchip Rock3566 RK3568 RK3399 RK3288 RK3588

1 piece sample is supported.
MOQ
$40-$60
Price
Embedded ARM Motherboard With Rockchip Rock3566 RK3568 RK3399 RK3288 RK3588
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Model: Embedded ARM Motherboard JLD-P01
Type: Multilayer Pcb
Material: RF4
Layer: 4
PCB Size: 146mm*102mm*1.6mm
OS: Android 11/ Ubuntu 20.04/Debian 10
AI: 1TOPS
Applied Field: POS System, Payment Kiosk, Vending Machine, Coffee Machine Etc
Highlight:

RK3568 Embedded ARM Motherboard

,

Rockchip RK3588 Motherboard

,

Rock3566 Embedded ARM Motherboard
Basic Infomation
Place of Origin: China
Brand Name: JEWELLED
Model Number: JLD-P01
Payment & Shipping Terms
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 3-5 working days for sample
Payment Terms: TT /Paypal
Supply Ability: 100K/month
Product Description
Embedded ARM Motherboard With Rockchip Rock3566 RK3568 RK3399 RK3288 RK3588
JLD-P02 RK3566 Smart POS Motherboard is a high-performance embedded motherboard based on Rockchip RK3566 quad-core processor, with a main frequency of up to 1.8GHz and equipped with Android 11 operating system. It is designed for scenarios such as smart POS machines, self-service cashier terminals, and financial payment devices.

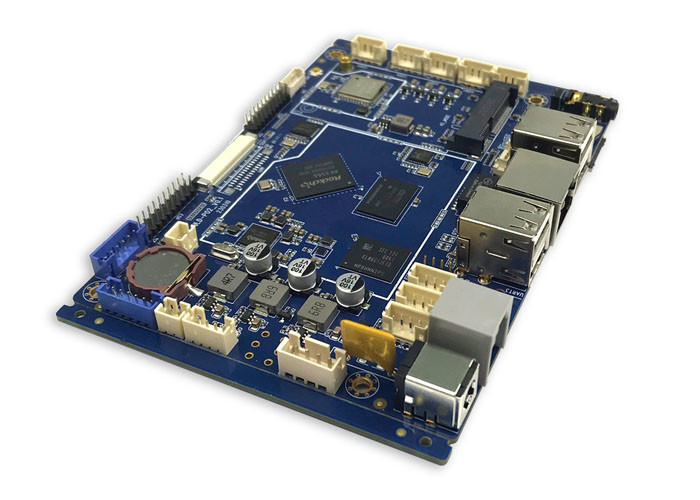

Embedded ARM Motherboard With Rockchip Rock3566 RK3568 RK3399 RK3288 RK3588 0
Core Advantages
Powerful Performance
  • RK3566 quad-core Cortex-A55 architecture processor, 1.8GHz main frequency
  • Supports AI acceleration (1T NPU) for efficient multi-tasking
  • 2GB/4GB/8GB LPDDR4 memory + 32GB/64GB/128GB eMMC storage (expandable)
  • Native Android 11 system with OTA upgrade support
Rich Interfaces
  • Multi-screen display: HDMI, LVDS/MIPI interfaces
  • 8x USB 2.0, 3x UART serial port, GPIO, I2C, SPI interfaces
  • Dedicated cash box interface for POS machines
  • Gigabit Ethernet, dual-band Wi-Fi 5, Bluetooth 5.0, optional 4G module
Industrial-Grade Reliability
  • Operating temperature range: -20℃~70℃
  • Supports DC 12V/5V power supply with protection
  • Compact onboard size with customizable design
Application Scenarios
  • Smart POS cash registers with multiple payment methods
  • Supermarket self-service checkout terminals
  • Catering self-service ordering machines
  • Logistics handheld terminals and government self-service machines

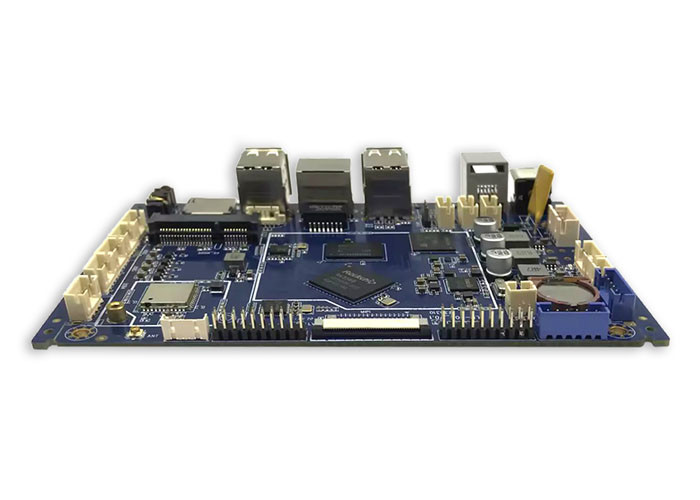

Embedded ARM Motherboard With Rockchip Rock3566 RK3568 RK3399 RK3288 RK3588 1
Specifications
CPU RK3568 quad-core 2.0GHZ
GPU Mali-G52
NPU 1T TOPS
OS Android 11/Linux/Ubuntu/Debian
Memory DDR4 2GB/4GB/8GB
EMMC 16GB/32GB/64GB/128GB
Display Interface LVDS, EDP, MIPI, HDMI
Serial Port 5 (RS232 and TTL optional) 1 TTL
Cash Drawer Interface RJ11 6P6C
Key Features
  • Support LVDS, MIPI, EDP, HDMI interface display and I2C touch panel
  • Rich interfaces: USB, COM port, RJ11, Cash drawer interface, Mini PCIE
  • Network: Gigabit Ethernet, Wireless WiFi 2.4G & 5G, Bluetooth
  • Strong anti-electromagnetic interference and compatibility
  • Compatible with major POS application software

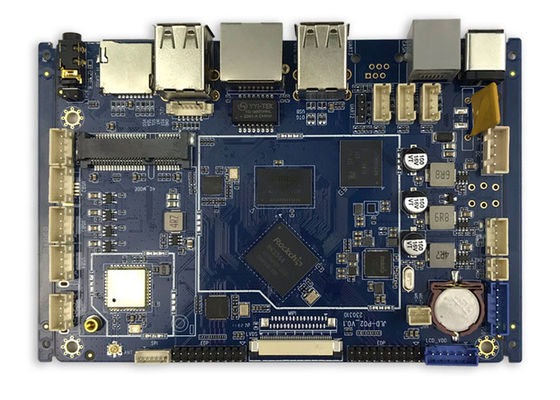

Product Interface Photos
Embedded ARM Motherboard With Rockchip Rock3566 RK3568 RK3399 RK3288 RK3588 2 Embedded ARM Motherboard With Rockchip Rock3566 RK3568 RK3399 RK3288 RK3588 3
Detailed Hardware Parameters
CPU: RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz
GPU: ARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU: 1TOPS
Memory: 2G/4G/8G DDR4 optional
EMMC: 16G-128G optional
Display: Support LVDS, EDP, MIPI, HDMI
Audio: Stereo, support Dolby sound effect
Ethernet: 10/100/1000M
Wi-Fi: 2.4G/5G WiFi BT
OS: Android 11/Ubuntu 20.04/Debian 10
PCB Size: 146mm*102mm*1.6mm
Power Supply: DC12V-24V input
Temperature: -20°-80℃
Service and Support
  • Flexible customization: Hardware interface adjustment, system cutting, LOGO customization
  • Development support: Open SDK and technical documents
  • Quality assurance: 1 year warranty and lifetime technical support
Packing
  • At Buyer's Request
  • Inner vacuum package
  • Outer standard export carton
